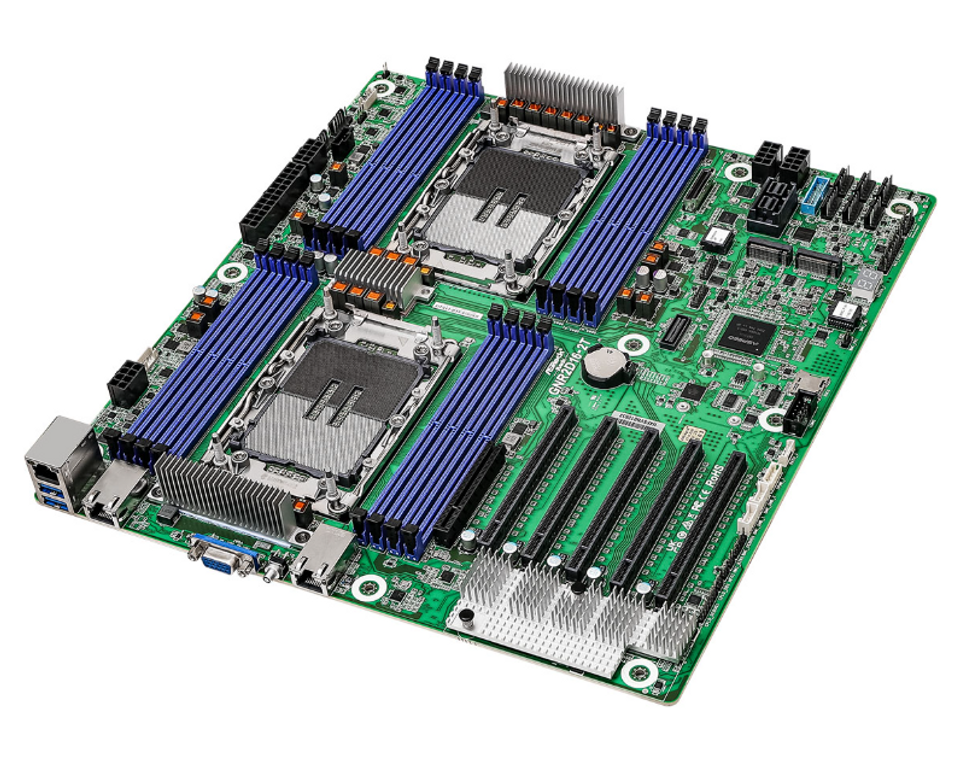

Asrock Rack GNR2D16-2T Motherboard
Unlock unparalleled performance and scalability for your demanding workloads with the ASRock Rack GNR2D16-2T Motherboard. Engineered for professionals and businesses seeking the ultimate in computing power, this motherboard offers a robust platform for virtualization, cloud computing, and data-intensive applications.
Features:
- Unleash Next-Gen Processing: Supports Intel Xeon 6700E-series processors, delivering exceptional performance and efficiency.
- Massive Memory Capacity: Equipped with 8+8 DIMM slots (1DPC) supporting DDR5 RDIMM, enabling lightning-fast data access and processing.
- Expand Your Horizons: The EEB form factor (12" x 13") provides ample space for expansion cards and components.
Specifications
| Physical Status | |
| Form Factor | EEB |
| Dimensions | 12" x 13" |
| Processor System | |
| CPU | Supports Intel® Xeon® 6700E-series processors |
| Socket | 1+1 Socket E2 (LGA 4710) |
| Chipset | System on Chip |
| System Memory | |
| Supported DIMM Quantity | 8+8 DIMM slots (1DPC) |
| Supported Type | DDR5 RDIMM |
| Max. Capacity per DIMM | RDIMM: 128GB |
| Max. DIMM Frequency | RDIMM: 6400MT/s |
| Voltage | 1.1V |
| PCIe Expansion Slots (SLOT7 close to CPU) | |
| PCIe x 16 | SLOT1:PCIe5.0 / CXL2.0 x16 [CPU1] SLOT2:PCIe5.0 / CXL2.0 x16 [CPU0] SLOT3:PCIe5.0 / CXL2.0 x16 [CPU1] SLOT4:PCIe5.0 / CXL2.0 x16 [CPU0] SLOT5:PCIe5.0 / CXL2.0 x16 [CPU1] |
| PCIe x 8 | SLOT6:PCIe5.0 / CXL2.0 x8 [CPU0] |
| TPM | |
| TPM support | 1 (13-pin, SPI) |
| Other PCIe Expansion Connectors | |
| M.2 slot | 2 M-key (PCIe5.0 x2), supports 22110/2280 form factor [CPU0] |
| Others | 1 MCIO (PCIe5.0 / CXL2.0 x8) [CPU0] |
| SATA/SAS Storage | |
| Additional SATA Controller | 8 SATA 6Gb/s by ASM1164: 2 Mini-SAS HD |
| Ethernet | |
| Additional GbE Controller | 2 RJ45 (10GbE) by Intel® X710-AT2 |
| Server Management | |
| BMC Controller | ASPEED AST2600: IPMI2.0 with iKVM and vMedia support |
| IPMI Dedicated GLAN | 1 Realtek RTL8211F for dedicated management GLAN |
| Graphics | |
| Controller | ASPEED AST2600: 1 DB15 (VGA) |

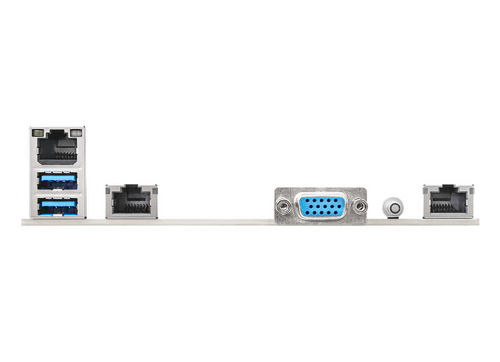

| Rear I/O | |
| UID Button/LED | 1 UID button w/ LED |
| VGA Port | 1 DB15 (VGA) |
| USB 3.2 Gen1 Port | 2 Type-A (UBS3.2 Gen1) |
| RJ45 | 2 RJ45 (10GbE), 1 dedicated IPMI |
| Internal Connector/Headers | |
| Power Connector | 1 (24-pin, ATX main power), 4 ( 8-pin, ATX 12V) |
| Auxiliary Panel Header | 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus |
| System Panel | 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED |
| COM Header | 1 (9-pin) |
| Fan Header | 8 (6-pin) |
| TPM Header | 1 (13-pin, SPI) |
| HSBP | 2 |
| SMBus header | 2 |
| PMBus header | 1 |
| IPMB Header | 1 |
| Clear CMOS | 1 (contact pads) |
| Others | 1 RAID header, 1 Micro SD card slot |
| USB 3.2 (Gen1) Header | 1 header (19-pin, 2 USB3.2 Gen1) |
| NMI Header | 1 |
| LED Indicators | |
| Standby PWR LED | 1 (5VSB) |
| 80 Debug Port LED | 1 |
| Fan Fail LED | 80 |
| BMC heartbeat LED | 1 |
| Others LED | 1 CPLD Heartbeat LED, 1 System Caterr LED |
| System BIOS | |
| BIOS Type | AMI UEFI BIOS; 512Mb SPI Flash ROM |
| BIOS Features | Plug and Play, ACPI 4.0 and above compliance wake up events, SMBIOS 3.4 and above, ASRock Rack instant flash |
| Hardware Monitor | |
| Temperature | CPU, MB, Card side Temperature Sensing |
| Fan | Fan Tachomete CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) Fan Multi-Speed Control |
| Voltage | PSU +12V & +5VSB & +3.3V, +3VSB, PVNN_PCH, P1V05_PCH_STBY, P1V8_PCH_STBY, +BAT, PVCCIN_CPU0, PVCCIN_CPU1, PVCCINFAON_CPU0, PVCCINFAON_CPU1, PVCCFA_EHV_FIVRA_CPU0, PVCCFA_EHV_FIVRA_CPU1, PVCCD_HV_CPU0, PVCCD_HV_CPU1 |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |
