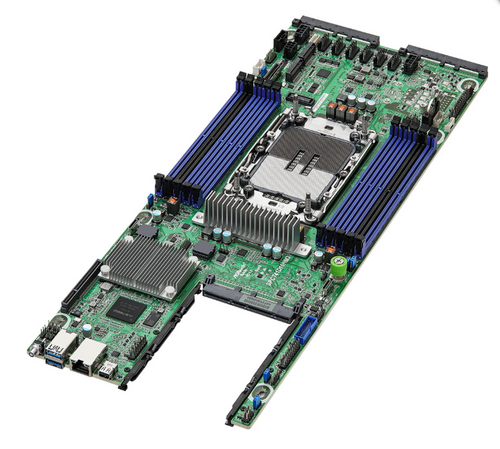

Unleash Unparalleled Performance and Scalability with the ASRock Rack GNRAPD12DNO Motherboard
Introducing the ASRock Rack GNRAPD12DNO Motherboard, a powerful and versatile solution engineered to elevate your server or workstation to unprecedented heights. Designed for professionals and enthusiasts seeking uncompromising performance, this motherboard boasts an impressive array of features and cutting-edge technology.
Unrivaled Processing Prowess
Harness the raw power of Intel's latest and greatest Xeon processors with support for the Intel Xeon 6900P-series. Experience lightning-fast processing speeds and seamless multitasking, effortlessly handling even the most demanding workloads.
Exceptional Memory Capacity and Performance
Equipped with 12 DIMM slots (1DPC), the GNRAPD12DNO supports a vast amount of DDR5 memory. Leverage the latest DDR5 RDIMM, RDIMM-3DS, and MCR DIMM technologies to unlock blazing-fast memory speeds and enhanced system responsiveness.
Robust Expansion Capabilities
Expand your system's horizons with a comprehensive range of expansion slots and connectors. The motherboard provides ample connectivity options for peripherals, storage devices, and networking components, ensuring seamless integration with your existing infrastructure.
Key Features:
- Supports Intel Xeon 6900P-series processors
- 12 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS, MCR DIMM
- M-DNO Type2 form factor (210mm x 305.59mm; 8.27" x 12")
- [Insert other relevant features here, e.g., storage options, networking capabilities, etc.]
Specifications
| Physical Status | |
| Form Factor | M-DNO Type 2 |
| Dimensions | 210mm x 305.59mm (8.27" x 12") |
| Processor System | |
| CPU | Supports Intel® Xeon® 6900P-series processors |
| Socket | 1 Socket BR (LGA 7529) |
| Chipset | System on Chip |
| System Memory | |
| Supported DIMM Quantity | 12 DIMM slots (1DPC) |
| Supported Type | DDR5 RDIMM, RDIMM 3DS, MCR DIMM |
| Max. Capacity per DIMM | RDIMM: 128GB RDIMM 3DS: 256GB MCR DIMM: 256GB |
| Max. DIMM Frequency | RDIMM: 6400 MT/s RDIMM 3DS: 6400 MT/s MCR DIMM: 8800 MT/s |
| Voltage | 1.1V |
| TPM | |
| TPM support | 1 (13-pin, SPI) |
| Other PCIe Expansion Connectors | |
| M.2 slot | 2 M-key (PCIe5.0 x4), supports 2280 form factor |
| Others | 8 MCIO (PCIe5.0 / CXL2.0 x8) |
| Ethernet | |
| OCP slot | 1 OCP NIC 3.0 (PCIe5.0 / CXL2.0 x16) |
| Server Management | |
| BMC Controller | ASPEED AST2700 on DC-SCM 2.0 module (DC_SCM_2700) |
| IPMI Dedicated GLAN | 1 Realtek RTL8211F for dedicated management GLAN on DC-SCM 2.0 module (DC_SCM_2700) |
| Graphics | |
| Controller | ASPEED AST2700: 1 Mini DisplayPort (on DC_SCM_2700) |

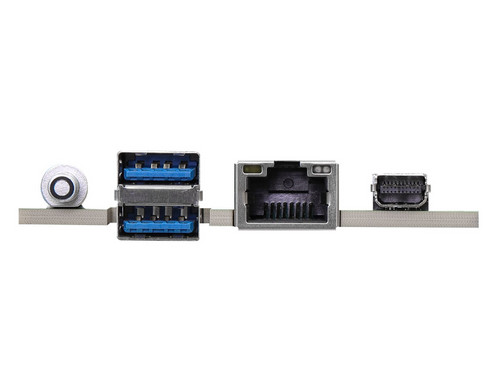

| Rear I/O | |
| UID Button/LED | 1 UID button/LED on DC_SCM 2.0 module (DC_SCM_2700) |
| VGA Port | 1 Mini DisplayPort on DC_SCM 2.0 module (DC_SCM_2700) |
| Serial Port | 1 Type-C (COM) on DC-SCM 2.0 module (DC_SCM_2700) |
| USB 3.2 Gen1 Port | 2 Type-A (USB3.2 Gen1) on DC-SCM 2.0 module (DC_SCM_2700) |
| RJ45 | 1 dedicated IPMI on DC-SCM 2.0 module (DC_SCM_2700) |
| Internal Connector/Headers | |
| Power Connector | 2 12V PICPWR (24-pin, 12V 2X6+12 Sideband) |
| Auxiliary Panel Header | 1 (19-pin): UID switch w/LED, power switch w/LED, SMbus, system fault LED, HDD activity LED |
| System Panel | 1 (20-pin): Smbus, USB2, SPI, Sideband |
| TPM Header | 1 (13-pin, SPI) |
| VROC header | 1 |
| HSBP | 1 |
| SMBus header | 1 |
| PMBus header | 1 |
| IPMB Header | 1 |
| Clear CMOS | 1 (contact pads) |
| Others | 1 (PDB Management Connector) |
| NMI Header | 1 |
| LED Indicators | |
| Standby PWR LED | 1 (3VSB) |
| 80 Debug Port LED | 1 |
| BMC heartbeat LED | 1 on DC-SCM 2.0 module (DC_SCM_2700) |
| Others LED | 1 CPLD heartbeat LED |
| System BIOS | |
| BIOS Type | AMI UEFI BIOS; 512Mb SPI Flash ROM |
| BIOS Features | Plug and Play, ACPI 4.0 and above compliance wake up events, SMBIOS 3.4 and above, ASRock Rack Instant Flash |
| Hardware Monitor | |
| Temperature | CPU, MB, Card Side, M.2, RAM, TR Temperature Sensing |
| Fan | Fan Tachometer CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) Fan Multi-Speed Control |
| Voltage | PVCCD0_HV_CPU0, PVCCD1_HV_CPU0, PVCCFA_EHV_FIVRA_CPU0, PVCCINF_CPU0, PVCCIN_CPU0, PVCCFA_EHV_CPU0, PVNN_TERM_CPU0, 3.3V, 5V, 12V, 1.8V_AUX, +3VSB, +5VSB, +12VSB, |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |
