Unleash Next-Generation Computing Power and Scalability

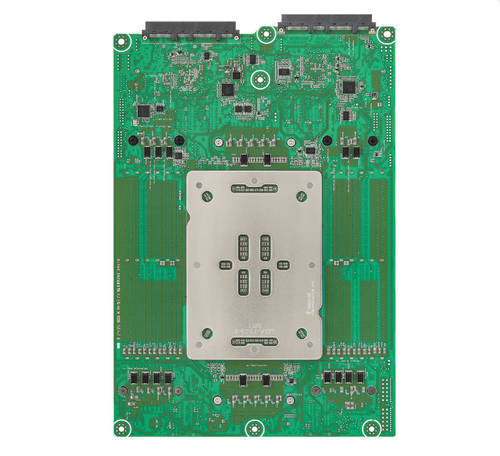

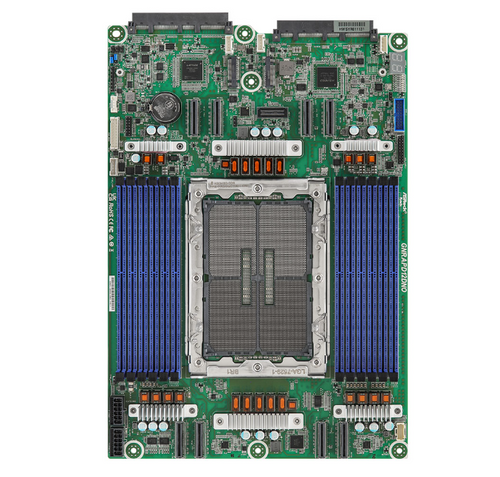

Introducing the ASRock Rack GNRD16DNO motherboard, a powerful and versatile foundation for high-performance computing, artificial intelligence, and data center applications. This motherboard, based on the M-DNO Type2 form factor (210mm x 305.59mm; 8.27" x 12"), is engineered to deliver exceptional performance, scalability, and reliability, empowering your demanding workloads.
Unmatched Processing Power:
At the heart of the GNRD16DNO lies support for Intel's latest Xeon 6700E-series processors. These processors, renowned for their high core counts, fast clock speeds, and advanced features, provide the computational muscle needed to tackle even the most challenging tasks. Experience lightning-fast processing, seamless multitasking, and accelerated data analysis with the GNRD16DNO.
Exceptional Memory Capacity and Bandwidth:
The GNRD16DNO empowers your system with unparalleled memory capabilities. Featuring 16 DIMM slots supporting DDR5 RDIMM in a dual-channel configuration, this motherboard provides a massive memory capacity of up to several terabytes. Experience lightning-fast data access, reduced bottlenecks, and seamless multitasking, even with memory-intensive applications.
Unprecedented Expansion and Connectivity:
Unlock unparalleled expansion possibilities with the GNRD16DNO's eight MCIO slots (PCIe5.0 / CXL2.0 x8). This cutting-edge interface provides blazing-fast data transfer speeds and low latency, enabling you to connect high-performance GPUs, NVMe storage devices, and other peripherals. Experience accelerated data processing, seamless data transfer, and enhanced system flexibility.
Features:
- Supports Intel Xeon 6700E-series processors
- 16 DIMM slots (2DPC), supports DDR5 RDIMM
- 8 MCIO (PCIe5.0 / CXL2.0 x8)
- M-DNO Type2 form factor (210mm x 305.59mm; 8.27" x 12")
Specifications
| Physical Status | |
| Form Factor | M-DNO Type 2 |
| Dimensions | 210mm x 305.59mm (8.27" x 12") |
| Processor System | |
| CPU | Supports Intel® Xeon® 6700E-series processors |
| Socket | 1 Socket E2 (LGA 4710) |
| Chipset | System on Chip |
| System Memory | |
| Supported DIMM Quantity | 16 DIMM slots (2DPC) |
| Supported Type | DDR5 RDIMM |
| Max. Capacity per DIMM | RDIMM: 128GB |
| Max. DIMM Frequency | RDIMM: 6400MT/s (1DPC), 5200MT/s (2DPC) |
| Voltage | 1.1V |
| TPM | |
| TPM support | 1 (13-pin, SPI) |
| Other PCIe Expansion Connectors | |
| M.2 slot | 1 M-key (PCIe5.0 x4), supports 2280 form factor 1 M-key (PCIe5.0 x2), supports 2280 form factor |
| Others | 8 MCIO (PCIe5.0 / CXL2.0 x8) |
| Ethernet | |
| OCP slot | 1 OCP NIC 3.0 (PCIe5.0 / CXL2.0 x16) |
| Server Management | |
| BMC Controller | ASPEED AST2700 on DC-SCM 2.0 module (DC_SCM_2700) |
| IPMI Dedicated GLAN | 1 Realtek RTL8211F for dedicated management GLAN on DC-SCM 2.0 module (DC_SCM_2700) |
| Graphics | |
| Controller | ASPEED AST2700: 1 Mini DisplayPort (on DC_SCM_2700) |
| Rear I/O | |
| UID Button/LED | 1 UID button/LED on DC_SCM 2.0 module (DC_SCM_2700) |
| VGA Port | 1 Mini DisplayPort on DC_SCM 2.0 module (DC_SCM_2700) |
| Serial Port | 1 Type-C (COM) on DC-SCM 2.0 module (DC_SCM_2700) |
| USB 3.2 Gen1 Port | 2 Type-A (USB3.2 Gen1) on DC-SCM 2.0 module (DC_SCM_2700) |

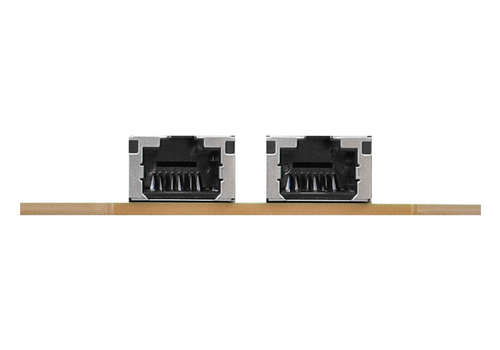

| RJ45 | 1 dedicated IPMI on DC-SCM 2.0 module (DC_SCM_2700) |
| Internal Connector/Headers | |
| Power Connector | 2 12V PICPWR (24-pin, 12V 2X6+12 Sideband) |
| Auxiliary Panel Header | 1 (19-pin): UID switch w/LED, power switch w/LED, SMbus, system fault LED, HDD activity LED |
| System Panel | 1 (20-pin): Smbus, USB2, SPI, Sideband |
| TPM Header | 1 (13-pin, SPI) |
| VROC header | 1 |
| HSBP | 1 |
| SMBus header | 1 |
| PMBus header | 1 |
| IPMB Header | 1 |
| Clear CMOS | 1 (contact pads) |
| Others | 1 (PDB Management Connector) |
| NMI Header | 1 |
| LED Indicators | |
| Standby PWR LED | 1 (3VSB) |
| 80 Debug Port LED | 1 |
| BMC heartbeat LED | 1 on DC-SCM 2.0 module (DC_SCM_2700) |
| Others LED | 1 CPLD heartbeat LED |
| System BIOS | |
| BIOS Type | AMI UEFI BIOS; 512Mb SPI Flash ROM |
| BIOS Features | Plug and Play, ACPI 4.0 and above compliance wake up events, SMBIOS 3.4 and above, ASRock Rack Instant Flash |
| Hardware Monitor | |
| Temperature | CPU, MB, Card Side, M.2, RAM, TR Temperature Sensing |
| Fan | Fan Tachometer CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) Fan Multi-Speed Control |
| Voltage | PVCCD0_HV_CPU0, PVCCD1_HV_CPU0, PVCCFA_EHV_FIVRA_CPU0, PVCCINF_CPU0, PVCCIN_CPU0, PVCCFA_EHV_CPU0, PVNN_TERM_CPU0, 3.3V, 5V, 12V, 1.8V_AUX, +3VSB, +5VSB, +12VSB, |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |
