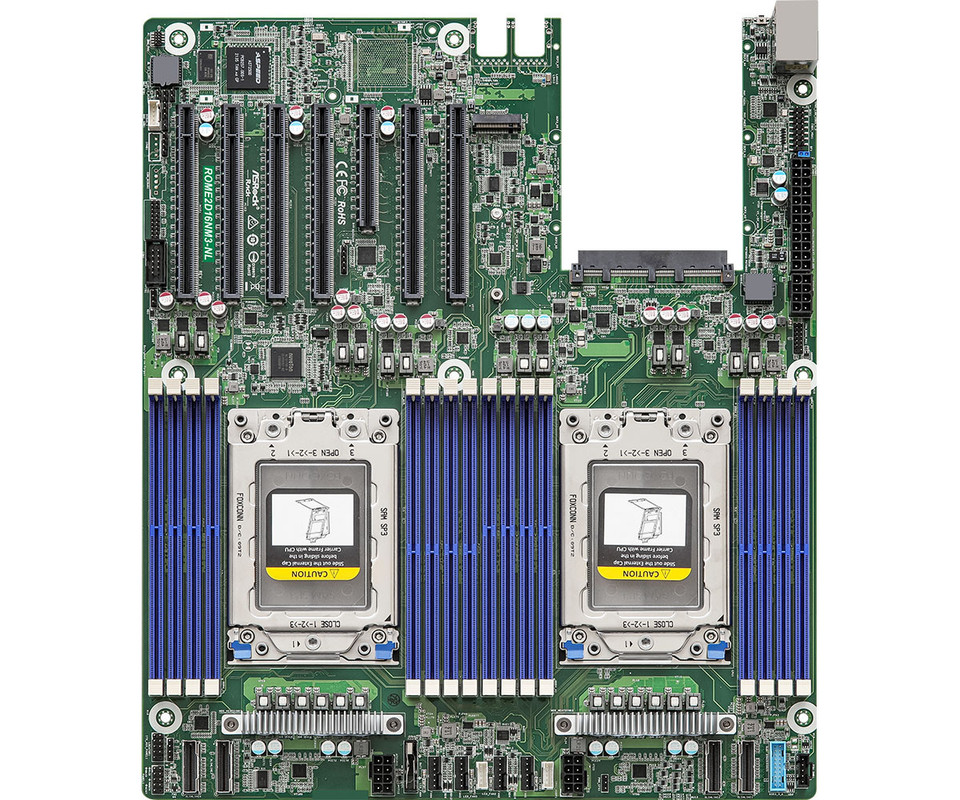

- EEB (12" x 14.2")
- Dual Socket SP3 (LGA 4094), supports AMD EPYC™ 7003 (with AMD 3D V-Cache™ Technology*)/7002 series processors
- 8+8 DIMM slots (1DPC), supports DDR4 RDIMM, LRDIMM, RDIMM/LRDIMM-3DS
- 6 PCIe4.0 x16, 1 PCIe4.0 x8
- 3 SlimSAS (PCIe4.0 x8), 1 SlimSAS (PCIe4.0 x8 or 8 SATA 6Gb/s)
- Supports 1 M.2 (PCIe4.0 x4 or 4 SATA 6Gb/s)
- Up to 12 SATA 6Gb/s
- 1 OCP NIC 3.0 (PCIe4.0 x16)
- Remote Management (IPMI)
Specifications
| Physical Status | |
| Form Factor | EEB |
| Dimensions | 12" x 14.2" |
| Processor System | |
| CPU | Supports AMD EPYC™ 7003 (with AMD 3D V-Cache™ Technology*)/7002 Series Processors *A BIOS update is required to support AMD EPYC™ 7003 series processors with AMD 3D V-Cache™ Technology |
| Socket | Dual Socket SP3 (LGA4094) |
| Chipset | System on Chip |
| System Memory | |
| Supported DIMM Quantity | 8+8 DIMM slots (1DPC) |
| Supported Type | Supports DDR4 288-pin RDIMM, LRDIMM, RDIMM/LRDIMM-3DS |
| Max. Capacity per DIMM | RDIMM: up to 64GB LRDIMM: up to 128GB RDIMM/LRDIMM-3DS: up to 256GB |
| Max. DIMM Frequency | RDIMM/ LRDIMM: max. 3200MHz |
| Voltage | 1.2V |
| PCIe Expansion Slots (SLOT7 close to CPU) | |
| PCIe x 16 | SLOT7: PCIe4.0 x16 [CPU0] SLOT6: PCIe4.0 x16 [CPU0] SLOT4: PCIe4.0 x16 [CPU1] SLOT3: PCIe4.0 x16 [CPU1] SLOT2: PCIe4.0 x16 [CPU1] SLOT1: PCIe4.0 x16 [CPU1] |
| PCIe x 8 | SLOT5: PCIe4.0 x8 [CPU0] |
| Other PCIe Expansion Connectors | |
| M.2 slot | 1 M-key (PCIe4.0 x4 or 4 SATA 6Gb/s); support 2280/2242 form factor [CPU0] |
| SlimSAS | 1 SlimSAS (PCIe4.0 x8) [CPU0] 1 SlimSAS* (PCIe4.0 x8 or 8 SATA 6Gb/s) [CPU0] 2 SlimSAS (PCIe4.0 x8) [CPU1] * SLIM1 support PCIe only while installing 2 processors |
| SATA/SAS Storage | |
| PCH Built-in Storage | AMD EPYC 7003/7002 (Up to 12 SATA 6Gb/s): 1 SlimSAS*, 4 SATA via optional M2U2_HD_G4 M.2 device |
| Ethernet | |
| Mezzanine | 1 OCP NIC 3.0 (PCIe4.0 x16) [CPU0] |
| Server Management | |
| BMC Controller | ASPEED AST2500 |
| IPMI Dedicated GLAN | 1 x Realtek RTL8211E for dedicated management GLAN |
| Graphics | |
| Controller | ASPEED AST2500: 1 (15-pin) header |
| Rear I/O | |
| UID Button/LED | 1 UID button, 1 UID LED |
| USB 3.2 Gen1 Port | 2 Type-A (USB3.2 Gen1) |
| RJ45 | 1 dedicated IPMI |
| Internal Connector/Headers | |
| Power Connector | 1 (24-pin, ATX main power), 2 (8-pin, ATX 12V) |
| Other Power Connectors | 1 (8-pin) for add-on card power |
| Auxiliary Panel Header | 1 (9-pin): chassis intrusion, system fault LED |
| System Panel | 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED |
| COM Header | 1 |
| VGA header | 1 |
| Speaker Header | 1 |
| Fan Header | 4 (6-pin) |
| Thermal Sensor Header | 1 |
| TPM Header | 1 (13-pin,SPI), 1(17-pin, LPC) |
| HSBP | 1 |
| SMBus header | 1 |
| PMBus header | 1 |
| Clear CMOS | 1 (contact pads) |
| Others | 1 (4-pin): locator LED |
| NMI Header | 1 |
| LED Indicators | |
| Standby PWR LED 5vsb | 1 (5VSB) |
| Fan Fail LED | 4 |
| BMC heartbeat LED | 1 |
| System BIOS | |
| BIOS Type | AMI 256Mb SPI Flash ROM |
| BIOS Features | ASRock Rack Instant Flash, ACPI 6.3, SMBIOS 3.3.0, Plug and Play (PnP) |
| Hardware Monitor | |
| Temperature | CPU, MB, Card side Temperature Sensing |
| Fan | CPU/Rear/Front Fan Tachometer CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) CPU/Rear/Front Fan Multi-Speed Control |
| Voltage | CPU1_VCORE, CPU1_SOC, CPU2_VCORE, CPU2_SOC VCCMABC,VCCMDEF,VCCMGHI,VCCMJKL,3V/5V/12V, CPU1_1V8 +BAT, 3VSB, 5VSB |
| Supported OS | |
| OS | Microsoft® Windows: Server 2016 (64 bit) Server 2019 (64 bit) Linux: RedHat Enterprise Linux Server 8.0 (64 bit) / 7.6 (64 bit) CentOS 8.0 (64 bit) / 7.6 (64 bit) SUSE SLES 15.1 (64 bit) / 12.4 (64 bit) UBuntu 18.04.3 (64 bit) / 16.04.6 (64 bit) CITRIX Hypervisor 8.1 Hypervisor: VMWare® ESXi 6.5 u3 / 6.7 u3 vSphere 6.5 u3/ / 6.7 u3 |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |
