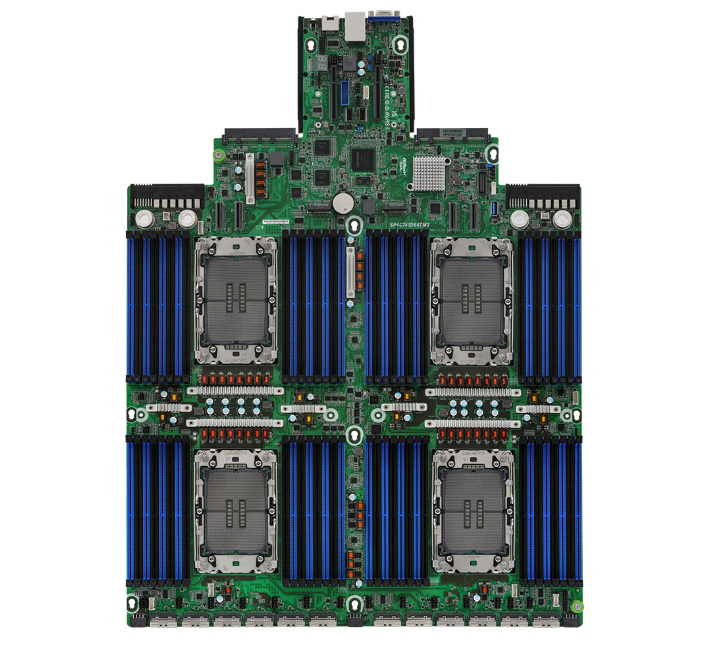

Unleash Unparalleled Server Performance with the ASRock Rack SP4C741D64TM3 Motherboard
The ASRock Rack SP4C741D64TM3 Motherboard is engineered for demanding server environments, offering exceptional performance, scalability, and reliability. Designed to maximize the potential of 5th and 4th Gen Intel Xeon Scalable Processors, this motherboard provides the foundation for high-performance computing, virtualization, and data-intensive workloads.
Exceptional Performance and Expandability:
- Supports 5th and 4th Gen Intel Xeon Scalable Processors, delivering industry-leading performance for demanding applications.
- Features an impressive 16+16+16+16 DIMM slots (2DPC) configuration, supporting up to 4TB of DDR5 RDIMM/ RDIMM-3DS memory for exceptional bandwidth and capacity.
- Equipped with 2 Slim Cool Edge (PCIe5.0 / CXL1.1 x16) slots, ensuring high-speed data transfer and support for next-generation peripherals and accelerators.
Robust Design and Reliability:
- The proprietary (17" x 22.87") form factor ensures compatibility with a wide range of server chassis.
- ASRock Rack's renowned build quality and rigorous testing guarantee long-term stability and reliability for mission-critical operations.
Ideal for:
- High-Performance Computing (HPC)
- Virtualization and Cloud Computing
- Data Analytics and Machine Learning
- Enterprise Servers and Workstations
Specifications
| Physical Status | |
| Form Factor | Proprietary |
| Dimensions | 17" x 22.87" (431.8 x 580.9 mm) |
| Processor System | |
| CPU | Supports 5th and 4th Gen Intel® Xeon® Scalable Processors |
| Socket | Quad* Socket E (LGA 4677) *5th Gen Intel® Xeon® Scalable Processors only supports Dual Socket |
| Chipset | Intel® C741 |
| System Memory | |
| Supported DIMM Quantity | 16+16+16+16 DIMM slots (2DPC) |
| Supported Type | 288-pin DDR5 RDIMM/ RDIMM-3DS |
| Max. Capacity per DIMM | RDIMM: 96GB RDIMM-3DS: 2H- 128 GB / 4H- 256 GB |
| Max. DIMM Frequency | 4800 MT/s (1DPC) / 4400 MT/s (2DPC) |
| Voltage | 1.1V |
| PCIe Expansion Slots (SLOT7 close to CPU) | |
| PCIe x 16 | SLOT1: Slim Cool Edge (PCIe5.0 / CXL1.1 x16) [CPU0] SLOT2: Slim Cool Edge (PCIe5.0 / CXL1.1 x16) [CPU1] |
| Other PCIe Expansion Connectors | |
| M.2 slot | 1 M-key (PCIe5.0 x4), supports 22110/2280 form factor [CPU0] 1 M-key (PCIe5.0 x4), supports 22110/2280 form factor [CPU1] |
| Others | 2 MCIO (PCIe5.0 x8) [CPU0] 2 MCIO (PCIe5.0 x8) [CPU1] 6 MCIO (PCIe5.0 x8) [CPU2] 6 MCIO (PCIe5.0 x8) [CPU3] 2 SlimSAS (4 SATA 6Gb/s) [PCH] |
| SATA/SAS Storage | |
| PCH Built-in Storage | Intel® C741 (8 SATA 6Gb/s, support RAID 0/1/5/10): 2 Slimline |
| Ethernet | |
| OCP slot | 1 OCP NIC 3.0 (PCIe5.0 x16) [CPU0] 1 OCP NIC 3.0 (PCIe5.0 x16) [CPU1] |
| Server Management | |
| BMC Controller | ASPEED AST2600: IPMI2.0 with iKVM and vMedia support |
| IPMI Dedicated GLAN | 1 RJ45 Dedicated IPMI LAN port by Realtek RTL8211F |
| Graphics | |
| Controller | ASPEED AST2600: 1 DB15 (VGA) |
| Rear I/O | |
| UID Button/LED | 1 UID button w/ LED |
| VGA Port | 1 DB15 ( (VGA) |
| Serial Port | 1 RJ45 (COM) |
| USB 3.2 Gen1 Port | 2 Type A (USB3.2 Gen1) |
| RJ45 | 1 dedicated IPMI |
| Internal Connector/Headers | |
| Power Connector | 2 (CRPS IN +12V/+12VSB, max. 2700W ) |
| Other Power Connectors | 3 Micro-Hi (2x4 pin, 12V) for PCIe cards, 1 Micro-Hi (2x2 pin, 12V) for HSBP |
| Auxiliary Panel Header | 1 (20-pin): power button, UID button, caseopen, system power LED, system fault LED, HDD activity LED, locate, SMBus |
| Fan Header | 13 (4-pin) |
| TPM Header | 1 (13-pin, SPI) |
| VROC header | 1 |
| SGPIO Header | 2 |
| HSBP | 4 |
| SMBus header | 2 |
| PMBus header | 2 |
| IPMB Header | 1 |
| Clear CMOS | 1 (contact pads) |
| USB 3.2 (Gen1) Header | 1 header (19-pin, 2 USB3.2 Gen1) |
| Type A USB 3.2 (Gen1) Port | 1 vertical Type-A (USB3.2 Gen1) |
| NMI Header | 1 |
| LED Indicators | |
| 80 Debug Port LED | 1 |
| Fan Fail LED | 7 |
| BMC heartbeat LED | 1 |
| Others LED | 8 CPLD debug port LED |
| System BIOS | |
| BIOS Type | AMI UEFI BIOS; 512Mb SPI Flash ROM |
| BIOS Features | Plug and Play (PnP), ACPI 4.0 and above compliance wake up events, SMBIOS 3.4 and above, ASRock Rack Instant Flash |
| Hardware Monitor | |
| Temperature | CPU, PCH, MB, Card Side Temperature Sensing |
| Fan | Fan Tachometer CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) Fan Multi-Speed Control |
| Voltage | 1.05V_PCH, 1.8V_PCH, +BAT, PVNN_PCH, 3.3V, 5V, 12V, 3.3VSB, 5VSB, 12V, +12VSB |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |
