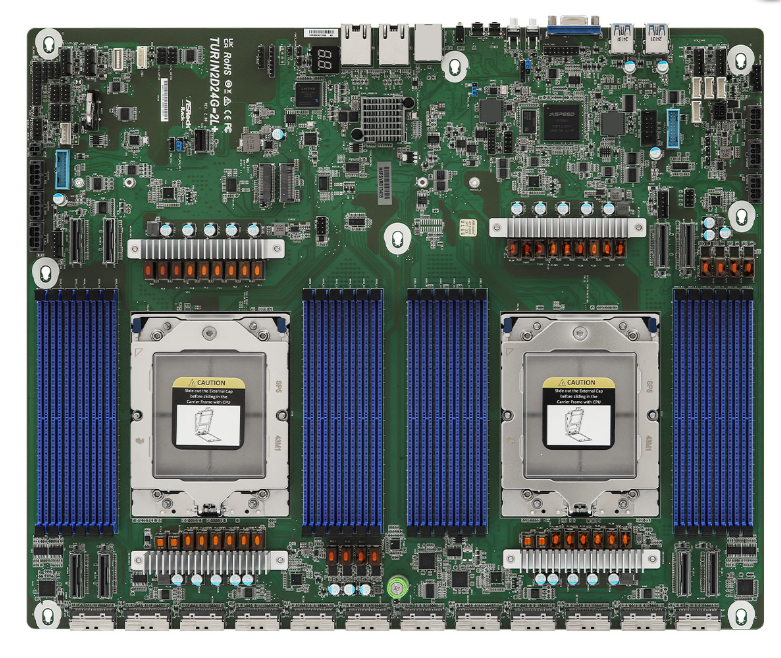

Unleash Unparalleled Server Performance with the ASRock Rack TURIN2D24G-2L+ Motherboard
Experience the pinnacle of server processing power with the ASRock Rack TURIN2D24G-2L+ Motherboard. Engineered for demanding workloads and exceptional performance, this motherboard is your gateway to building a high-performance server system.
Exceptional Processing Prowess
Harness the power of AMD's latest and greatest processors with support for dual Socket SP5 (LGA 6096), including:
- AMD EPYC™ 9005 Series
- AMD EPYC™ 9004 Series (with AMD 3D V-Cache™ Technology)
- AMD EPYC™ 97x4 Series
Unmatched Expandability and Performance
The TURIN2D24G-2L+ offers an impressive array of features designed to elevate your server capabilities:
- Supports a thermal design power (TDP) of up to 500W, ensuring stability and reliability for high-performance computing.
- Proprietary form factor (16.93" x 13.78") provides ample space for expansion and component placement.
Specifications
| Physical Status | |
| Form Factor | Proprietary |
| Dimensions | 16.93"x 13.78" |
| Processor System | |
| CPU | Supports AMD EPYC™ 9005*/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors *A BIOS update is required to support AMD EPYC™ 9005 series processors |
| Socket | Dual Socket SP5 (LGA 6096) |
| Thermal Design Power | Up to 500W |
| Chipset | System on Chip |
| System Memory | |
| Supported DIMM Quantity | 12+12 DIMM slots (1DPC) |
| Supported Type | Supports DDR5 288-pin RDIMM, RDIMM-3DS |
| Max. Capacity per DIMM | RDIMM: 96GB (2R) RDIMM-3DS: 512GB (2S8Rx4) |
| Max. DIMM Frequency | 6000 MHz |
| Voltage | 1.1V |
| Other PCIe Expansion Connectors | |
| M.2 slot | M2_1 (PCIe3.0 x4 or SATA 6Gb/s), supports 22110/2280 form factor [CPU0] M2_2 (PCIe3.0 x4 or SATA 6Gb/s), supports 22110/2280 form factor [CPU1] |
| Others | 6 MCIO (PCIe5.0 / CXL2.0* x8) [CPU0] 2 MCIO (PCIe5.0 / CXL2.0* x8 or 8 SATA 6Gb/s) [CPU0] 2 MCIO (PCIe5.0 x8 or 8 SATA 6Gb/s) [CPU0]** 6 MCIO (PCIe5.0 / CXL2.0* x8) [CPU1] 2 MCIO (PCIe5.0 / CXL2.0* x8 or 8 SATA 6Gb/s) [CPU1] 2 MCIO (PCIe5.0 x8) [CPU1] *Supports CXL1.1 while installing AMD EPYC 9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors **MCIO9, 10 support PCIe only while installing 2 processors |
| SATA/SAS Storage | |
| PCH Built-in Storage | AMD EPYC™ 9005/9004 (Up to 32 SATA 6Gb/s): 4 MCIO |
| Additional SATA Controller | ASM1061 (2 SATA 6Gb/s): 2 M.2 |
| Ethernet | |
| Additional GbE Controller | Intel® i350: 2 RJ45 (1GbE) |
| Server Management | |
| BMC Controller | ASPEED AST2600 |
| IPMI Dedicated GLAN | 1 Realtek RTL8211F for dedicated management GLAN |
| Graphics | |
| Controller | ASPEED AST2600 |
| VRAM | DDR4 512MB |
| Rear I/O | |
| UID Button/LED | 1 UID button w/ LED |
| Other Button/LED | 1 PWR button, 1 RST button, 1 NMI button, 1 HDD LED, 1 SYS LED |
| VGA Port | 1 DB15 (VGA) |
| USB 3.2 Gen1 Port | 4 Type-A (USB3.2 Gen1) |
| RJ45 | 2 RJ45 (1GbE) 1 dedicated IPMI |
| Internal Connector/Headers | |
| Power Connector | 6 Micro-hi (8-pin, ATX 12V), 1 Micro-Fit (4-pin, ATX PSU signal) w/ ATX 24-pin adapter cable |
| Auxiliary Panel Header | 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus |
| System Panel | 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED |
| COM Header | 1 |
| VGA header | 1 |
| Fan Header | 6 (6-pin) |
| TPM Header | 1 (13-pin,SPI) |
| SGPIO Header | 4 |
| HSBP | 1 |
| SMBus header | 4 |
| PMBus header | 1 |
| IPMB Header | 1 |
| Clear CMOS | 1 (contact pads) |
| USB 3.2 (Gen1) Header | 2 (19-pin, 2 USB3.2 Gen1) |
| NMI Header | 1 |
| LED Indicators | |
| Standby PWR LED | 1 (5VSB) |
| 80 Debug Port LED | 1 |
| Fan Fail LED | 6 |
| BMC heartbeat LED | 1 |
| System BIOS | |
| BIOS Type | AMI UEFI BIOS; 256 Mb (32MB) SPI Flash ROM |
| BIOS Features | ASRock Rack Instant Flash, ACPI 6.4 and about compliance wake up events, SMBIOS 3.5.0 and above, Plug and Play(PnP) |
| Hardware Monitor | |
| Temperature | CPU, MB, Card side Temperature Sensing |
| Fan | Fan Tachometer CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) Fan Multi-Speed Control |
| Voltage | P0_VDDCR_CPU0, P0_VDDCR_CPU1, P0_VDDCR_SOC, P0_VDD_18_DUAL, P0_VDD_11_S3, P0_VDDIO, P1_VDDCR_CPU0, P1_VDDCR_CPU1, P1_VDDCR_SOC, P1_VDD_18_DUAL, P1_VDD_11_S3, P1_VDDIO, +BAT, +12V, +3VSB, +5VSB |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |
