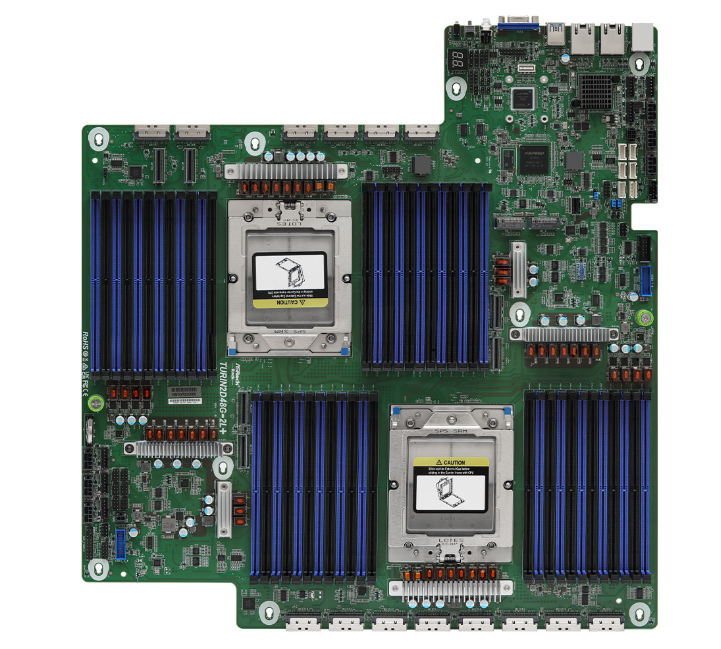

Unleash Unparalleled Computing Power with the ASRock Rack TURIN2D48G-2L+ Motherboard
Experience a new era of server performance with the ASRock Rack TURIN2D48G-2L+ motherboard, meticulously engineered for demanding professionals and enthusiasts seeking unrivaled processing power and scalability.
Unleash the Power of Dual AMD EPYC Processors
Built around the robust Dual Socket SP5 (LGA 6096) platform, the TURIN2D48G-2L+ harnesses the immense capabilities of two AMD EPYC 9005*/9004 series processors, including those empowered by AMD 3D V-Cache Technology, for groundbreaking performance in virtualization, data analysis, and mission-critical applications.
Exceptional Expansion and Connectivity
This motherboard boasts an extensive range of expansion options to accommodate your evolving needs:
- Support for up to 2TB of DDR5 ECC memory across eight DIMM slots, ensuring lightning-fast data access and processing.
- Two PCIe 5.0 x16 slots for high-bandwidth peripherals like cutting-edge GPUs and network cards.
- One PCIe 4.0 x8 slot offering additional expansion flexibility.
Unwavering Reliability and Stability
The TURIN2D48G-2L+ is built to withstand the rigors of demanding environments, featuring:
- A robust power design with a TDP of up to 500W, ensuring stable operation under heavy workloads.
- Server-grade components selected for their reliability and longevity.
Specifications
| Physical Status | |
| Form Factor | Proprietary |
| Dimensions | 18" x 16.9" |
| Processor System | |
| CPU | Supports AMD EPYC™ 9005*/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors *A BIOS update is required to support AMD EPYC™ 9005 series processors |
| Socket | Dual Socket SP5 (LGA 6096) |
| Thermal Design Power | Up to 500W |
| Chipset | System on Chip |
| System Memory | |
| Supported DIMM Quantity | 24+24 DIMM slots (2DPC) |
| Supported Type | Supports DDR5 288-pin RDIMM, RDIMM-3DS |
| Max. Capacity per DIMM | RDIMM: 96GB (2R) RDIMM-3DS: 512GB (2S8Rx4) |
| Max. DIMM Frequency | RDIMM: 5200 MHz (1DPC); 4400 MHz (2DPC) RDIMM-3DS: 5200 MHz (1DPC); 4000 MHz (2DPC) |
| Voltage | 1.1V |
| Other PCIe Expansion Connectors | |
| M.2 slot | M2_1**** (PCIe3.0 x4 or SATA 6Gb/s), supports 22110/2280 form factor [CPU0] M2_2 (PCIe3.0 x4 or SATA 6Gb/s), supports 22110/2280 form factor [CPU1] |
| Others | 6 MCIO (PCIe5.0 / CXL2.0* x8) [CPU0] 2 MCIO (PCIe5.0 / CXL2.0* x8 or 8 SATA** 6Gb/s) [CPU0] 2 MCIO (PCIe5.0 x8 or 8 SATA** 6Gb/s) [CPU0]*** 6 MCIO (PCIe5.0 / CXL2.0* x8) [CPU1] 2 MCIO (PCIe5.0 / CXL2.0* x8 or 8 SATA** 6Gb/s) [CPU1] 2 MCIO (PCIe5.0 x8) [CPU1] 1 SlimSAS (PCIe3.0 x2) [CPU0]**** *Supports CXL1.1 while installing AMD EPYC 9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors **A proper cable is needed to support SATA ***2 MCIO support PCIe only while installing 2 processors ****SlimSAS (by jumper setting): - PCIe3.0 x2 when M2_1 supports only PCIe3.0 x2 or SATA 6Gb/s - No function when M2_1 supports PCIe3.0 x4 or SATA 6Gb/s |
| SATA/SAS Storage | |
| PCH Built-in Storage | AMD EPYC™ 9005/9004 (Up to 32 SATA 6Gb/s): 4 MCIO |
| Additional SATA Controller | ASM1061 (2 SATA 6Gb/s): 2 M.2 |
| Ethernet | |
| Additional GbE Controller | Intel® i350: 2 RJ45 (1GbE) |
| Server Management | |
| BMC Controller | ASPEED AST2600 |
| IPMI Dedicated GLAN | 1 Realtek RTL8211F for dedicated management GLAN |
| Graphics | |
| Controller | ASPEED AST2600 |
| VRAM | DDR4 512MB |
| Rear I/O | |
| UID Button/LED | 1 UID button w/ LED |
| Other Button/LED | 1 PWR button, 1 RST button, 1 NMI button, 1 HDD LED, 1 SYS LED |
| VGA Port | 1 DB15 (VGA) |
| USB 3.2 Gen1 Port | 4 Type-A (USB3.2 Gen1) |
| RJ45 | 2 RJ45 (1GbE) 1 dedicated IPMI |
| Internal Connector/Headers | |
| Power Connector | 6 Micro-hi (8-pin, ATX 12V), 1 Micro-Fit (4-pin, ATX PSU signal) w/ ATX 24-pin adapter cable |
| Auxiliary Panel Header | 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus |
| System Panel | 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED |
| COM Header | 1 |
| VGA header | 1 |
| Fan Header | 6 (6-pin) |
| TPM Header | 1 (13-pin,SPI) |
| SGPIO Header | 4 |
| HSBP | 1 |
| SMBus header | 4 |
| PMBus header | 1 |
| IPMB Header | 1 |
| Clear CMOS | 1 (contact pads) |
| USB 3.2 (Gen1) Header | 2 (19-pin, 2 USB3.2 Gen1) |
| NMI Header | 1 |
| LED Indicators | |
| Standby PWR LED | 1 (5VSB) |
| 80 Debug Port LED | 1 |
| Fan Fail LED | 6 |
| BMC heartbeat LED | 1 |
| System BIOS | |
| BIOS Type | AMI UEFI BIOS; 256 Mb (32MB) SPI Flash ROM |
| BIOS Features | ASRock Rack Instant Flash, ACPI 6.4 and about compliance wake up events, SMBIOS 3.5.0 and above, Plug and Play(PnP) |
| Hardware Monitor | |
| Temperature | CPU, MB, Card side Temperature Sensing |
| Fan | Fan Tachometer CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) Fan Multi-Speed Control |
| Voltage | P0_VDDCR_CPU0, P0_VDDCR_CPU1, P0_VDDCR_SOC, P0_VDD_18_DUAL, P0_VDD_11_S3, P0_VDDIO, P1_VDDCR_CPU0, P1_VDDCR_CPU1, P1_VDDCR_SOC, P1_VDD_18_DUAL, P1_VDD_11_S3, P1_VDDIO, +BAT, +12V, +3VSB, +5VSB |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |
