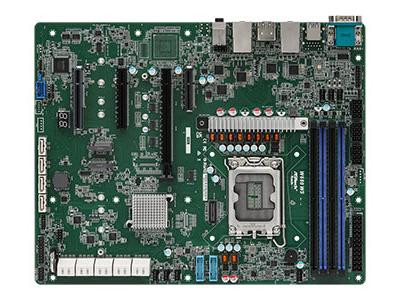

Unleash Unparalleled Performance and Stability with the ASRock Rack W680 WS Motherboard
Experience the pinnacle of computing power and reliability with the ASRock Rack W680 WS motherboard, meticulously engineered for professionals, content creators, and enthusiasts who demand nothing but the best.
Unleash the Power of Intel's Latest Processors
Built to harness the full potential of Intel's 14th, 13th, and 12th generation Core series processors, the W680 WS motherboard empowers your system with cutting-edge performance. The Intel W680 chipset ensures seamless communication between your processor, memory, and peripherals, unlocking a world of possibilities for demanding applications.
Embrace the Future of Memory with DDR5
Experience lightning-fast data transfer speeds and enhanced multitasking capabilities with support for the latest DDR5 memory technology. The W680 WS motherboard's optimized memory layout ensures maximum stability and performance, allowing you to push your system to its limits.
Connect with Confidence
Stay connected with a comprehensive suite of connectivity options, including Gigabit Ethernet, ensuring seamless network integration. The W680 WS motherboard provides a wide range of display outputs, including VGA, HDMI, and DisplayPort, empowering you to connect to multiple displays with ease.
Uncompromising Expandability for Your Growing Needs
The W680 WS motherboard offers unparalleled expandability to accommodate your evolving needs. With multiple PCIe slots, you can effortlessly connect high-performance graphics cards, storage devices, and other peripherals, ensuring your system can handle even the most demanding tasks.
Features You'll Love:
- Supports 14th, 13th, and 12th Gen Intel Core series processors
- Intel W680 Chipset
- Socket LGA1700
- DDR5 Memory Support
- Gigabit Ethernet
- VGA, HDMI, DisplayPort Outputs
- DB9 (COM) Port
- USB 3.2 Gen1 Type-A Ports
- RJ45 (1GbE) Port
- HD Audio Jacks
Specifications
| Physical Status | |
| Form Factor | ATX |
| Dimensions | 12" x 9.6" (305 mm x 244 mm) |
| Processor System | |
| CPU | Supports Intel® Core™ 14th Gen, 13th & 12th Gen Intel® Core™ series processors |
| Socket | Single Socket LGA 1700 |
| Thermal Design Power | 125W |
| Chipset | Intel® W680 |
| System Memory | |
| Supported DIMM Quantity | 4 DIMM slots (2DPC) |
| Supported Type | Supports DDR5 288-pin ECC/non-ECC UDIMM |
| Max. Capacity per DIMM | 48GB on Intel® Core™ 14th Gen, 13th Gen Intel® Core™ processors 32GB on 12th Gen Intel® Core™ processors |
| Max. DIMM Frequency | 4400MT/s (2DPC - 1DIMM) / 4000MT/s (2DPC - 2DIMM 1R) / 3600MT/s (2DPC - 2DIMM 2R) |
| Voltage | 1.1V |
| PCIe Expansion Slots (SLOT7 close to CPU) | |
| PCIe x 16 | SLOT6: PCIe5.0 x16* [CPU] *SLOT6 share lanes with SLOT4. SLOT6 will switch to x8 when SLOT4 is populated |
| PCIe x 8 | SLOT4: PCIe5.0 x8* [CPU] |
| PCIe x 4 | SLOT7: PCIe4.0 x4 [CPU] SLOT2: PCIe4.0 x4 [PCH] |
| TPM | |
| TPM support | 1 (13-pin, SPI) |
| Other PCIe Expansion Connectors | |
| M.2 slot | 1 M-key (PCIe4.0 x4); support 2280/2260/2242 form factor [PCH] 1 M-key (PCIe4.0 x4); support 2280/2260/2242 form factor [PCH] |
| SATA/SAS Storage | |
| PCH Built-in Storage | Intel® W680 (14 SATA 6Gb/s; RAID 0/1/5/10): 8 SATA 7-pin |
| Additional SATA Controller | ASM1061 (6 SATA 6Gb/s): 6 SATA 7-pin |
| Ethernet | |
| Additional GbE Controller | 4 RJ45 (1GbE) by Intel® i210 |
| Graphics | |
| Controller | Intel® Integrated Processor Graphics: 1 HDMI, 1 DisplayPort Realtek RTD2168: 1 DB15 (VGA) |
| Rear I/O | |
| VGA Port | 1 DB15 (VGA), 1 HDMI, 1 DisplayPort |
| Serial Port | 1 DB9 (COM) |
| USB 3.2 Gen1 Port | 2 Type A (USB3.2 Gen1) |
| RJ45 | 4 RJ45(1GbE) |
| Audio | HD Audio Jacks: Optical SPDIF Out Port / Line Out Jack / Microphone Input Jack |
| Internal Connector/Headers | |
| Power Connector | 1 (24-pin, ATX main power), 3 (8-pin, ATX 12V) |
| Auxiliary Panel Header | 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus |
| System Panel | 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED |
| VGA header | 1 |
| Speaker Header | 1 (4-pin) |
| Buzzer | 1 |
| Fan Header | 7 (4-pin) |
| Thermal Sensor Header | 1 |
| TPM Header | 1 (13-pin, SPI) |
| SGPIO Header | 1 |
| Clear CMOS | 1 (contact pads) |
| Front Lan LED Connector | 1 |
| USB 3.2 (Gen1) Header | 2 header (19-pin, 4 USB3.2 Gen1) |
| USB 2.0 Header | 1 header (9-pin, 2 USB2.0) |
| NMI Header | 1 |
| LED Indicators | |
| Standby PWR LED | 1 (5VSB) |
| 80 Debug Port LED | 1 |
| Fan Fail LED | 7 |
| System BIOS | |
| BIOS Type | AMI 256Mb SPI Flash ROM |
| BIOS Features | Plug and Play, ACPI 6.4 and above compliance wake up events, SMBIOS 2.8 and above, ASRock Rack Instant Flash |
| Hardware Monitor | |
| Temperature | CPU, MB, Card side, Temp_MB1~ MB4, M.2, TR1 Temperature sensing |
| Fan | Fan Tachometer CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) Fan Multi-Speed Control |
| Voltage | +12V, +5V, +3.3V, 1.05V_PCH, VCCSA, VCORE, +VDD2, VCCIN_AUX, GT_CPU, +1.05V_PROC |
| Supported OS | |
| OS | Microsoft® Windows® - Windows® 10 (64 bit) - Windows® 11 (64 bit) Linux - RedHat Enterprise Linux Server 8.5 (64 bit) - CentOs 8.5 (64 bit) - SUSE SLES 1502 (64 bit) - UBuntu 21.10 (64 bit) *Supports UEFI BOOT only |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |
