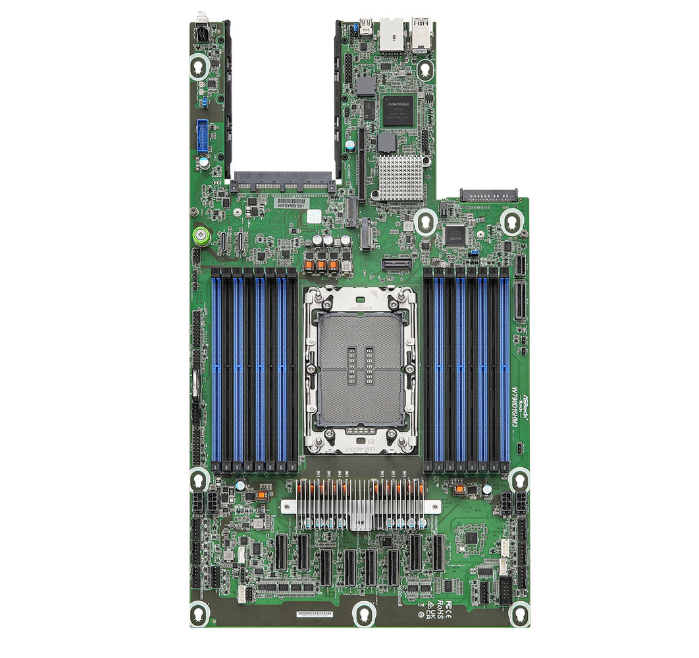

ASRock Rack W790D16HM3 Motherboard - Precision and Power in a Compact Design
Experience unparalleled performance and reliability with the ASRock Rack W790D16HM3 motherboard, a powerhouse designed for demanding professional applications. This half-width motherboard packs exceptional computing power into a compact form factor, making it ideal for space-constrained environments without compromising performance.
Unleash the Power of Intel Xeon Processors
Built to harness the full potential of Intel's latest and greatest processor technologies, the W790D16HM3 supports both Intel Xeon W-2500/2400 and W-3500/3400 series processors. This extensive compatibility ensures you can select the perfect processor to meet the specific demands of your workload, whether it's high-performance computing, demanding simulations, or complex data analysis.
Seamless Time Synchronization with TGPIO
In today's interconnected world, precise time synchronization between devices is crucial, especially in applications like financial trading, telecommunications, and industrial automation. The W790D16HM3 excels in this arena with its dedicated TGPIO (Time and GPIO) header. This feature ensures accurate time synchronization across your entire system, eliminating latency issues and ensuring consistent, reliable operation for time-critical applications.
Space-Saving Design for Versatile Deployment
The W790D16HM3's half-width (9.3" x 17") form factor makes it an ideal choice for deployments where space is at a premium. Whether you're building a compact workstation, a high-density server rack, or an edge computing solution, this motherboard seamlessly integrates into your environment without compromising on performance or features.
Feature-Rich for Unmatched Performance and Reliability:
- Intel W790 Chipset: The foundation for robust performance, supporting Intel Xeon W-2500/2400 and W-3500/3400 series processors.
- Dual-Channel DDR5 ECC RDIMM Support: Equip your system with high-speed, error-correcting memory for demanding tasks.
- PCIe 5.0 Support: Unlock the next generation of high-speed peripherals and expansion cards.
- Comprehensive Storage Options: Multiple SATA3 and M.2 slots provide ample storage connectivity for your data-intensive applications.
- Dual Intel i225-LM 2.5GbE LAN Ports: Experience blazing-fast and reliable network connectivity for seamless data transfer.
Specifications
| Physical Status | |
| Form Factor | Half-Width |
| Dimensions | 9.3" x 17" (236.22 x 431.8 mm) |
| Processor System | |
| CPU | Intel® Xeon® W-2500/2400 and W-3500/3400 series processors |
| Socket | Single Socket E (LGA 4677) |
| Chipset | Intel® W790 |
| System Memory | |
| Supported DIMM Quantity | 16 DIMM slots (2DPC) |
| Supported Type | DDR5 288-pin RDIMM/ RDIMM-3DS |
| Max. Capacity per DIMM | RDIMM: 64GB RDIMM-3DS: 2H- 128 GB/ 4H- 256 GB |
| Max. DIMM Frequency | 4800MT/s (1DPC), 4400MT/s (2DPC) |
| Voltage | 1.1V |
| PCIe Expansion Slots (SLOT7 close to CPU) | |
| PCIe x 16 | SLOT1: Slim Cool Edge (PCIe5.0 x16) [CPU] |
| TPM | |
| TPM support | 1 (13-pin, SPI) |
| Other PCIe Expansion Connectors | |
| M.2 slot | 2 M-key (PCIe4.0 x4), supports 22110/2280 form factor [PCH] |
| Others | 1 MCIO (PCIe5.0 x4) [CPU] 5 MCIO (PCIe5.0 x8) [CPU] 4 MCIO* (PCIe5.0 x8) [CPU] *Only available when used with Intel® Xeon® W-3500/3400 series processors |
| OCuLink | 1 OCuLink (PCIe4.0 x4 or 4 SATA 6Gb/s) [PCH] 1 OCuLink (PCIe3.0 x4 or 4 SATA 6Gb/s) [PCH] |
| SATA/SAS Storage | |
| PCH Built-in Storage | Intel® W790 (Up to 8 SATA 6Gb/s; RAID 0/1/5/10): 2 OCuLink for 8 SATA |
| Ethernet | |
| OCP slot | 1 OCP NIC 3.0 (PCIe5.0 x16) [CPU] |
| Server Management | |
| BMC Controller | ASPEED AST2600: iKVM, vMedia support |
| IPMI Dedicated GLAN | 1 RJ45 Dedicated IPMI LAN port by Realtek RTL8211F |
| Graphics | |
| Controller | ASPEED AST2600: 1 Mini-DisplayPort (VGA), 1 (15-pin) header |
| Rear I/O | |
| UID Button/LED | 1 UID button w/ LED |
| Other Button/LED | 1 PWR button w/LED |
| VGA Port | 1 Mini-DisplayPort (VGA) |
| USB 3.2 Gen1 Port | 2 Type-A (USB3.2 Gen1) |
| RJ45 | 1 dedicated IPMI |
| Internal Connector/Headers | |
| Power Connector | 4 (8-pin, Micro-Hi 12V), 1 (19-pin, CM Board Standby Power 12V) |
| Auxiliary Panel Header | 1 (18-pin): chassis intrusion, system fault LED, locate, SMBus |
| System Panel | 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED |
| COM Header | 1 (9-pin) |
| VGA header | 1 (15-pin) |
| Speaker Header | 1 (4-pin) |
| Fan Header | 8 (6-pin) |
| Thermal Sensor Header | 1 |
| TPM Header | 1 (13-pin, SPI) |
| VROC header | 1 |
| SGPIO Header | 1 |
| HSBP | 1 |
| SMBus header | 1 |
| PMBus header | 1 |
| IPMB Header | 1 |
| Clear CMOS | 1 (contact pads) |
| Others | 1 U.2 connector, 1 PECI header, 2 (1-pin, TGPIO header) |
| USB 3.2 (Gen1) Header | 1 (19-pin, 2 USB3.2 Gen1) |
| NMI Header | 1 |
| LED Indicators | |
| Standby PWR LED | 1 (5VSB) |
| Fan Fail LED | 8 |
| BMC heartbeat LED | 1 |
| System BIOS | |
| BIOS Type | AMI 256Mb SPI Flash ROM |
| BIOS Features | Plug and Play, ACPI 5.0 and above compliance wake up events, SMBIOS 2.3 and above, ASRock Rack Instant Flash |
| Hardware Monitor | |
| Temperature | CPU, MB, Card side, TR1 Temperature sensing |
| Fan | Fan Tachometer CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) Fan Multi-Speed Control |
| Voltage | CPU1_PVCCIN, 1.05V_PCH, 1.8V_PCH, +BAT, PVNN_PCH, 3.3V, 5V, 12V, 3.3VSB, 5VSB, +12V, +12VSB |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |
