4U dual-expander high-availability JBOD for high-density enterprise storage expansion. Supports 78 × 3.5-inch SAS/NL-SAS bays, up to 4 × JBODs for 312 drives and 6.8PB raw capacity, 4 × 12Gb/s SAS ports and support 48Gb/s SAS wide ports, redundant architecture with power and cooling modules, and integrated management port via IPMI and BMC console.
-
Architecture
Dual-active expander -
Storage
12 x 3.5” hot-swap drive bays
Compatible Drive Type:
3.5"&2.5" SAS,NL-SAS,SED HDD/2.5"SAS,SED SSD
Maximum Drive Bays with Expansion Unit: 420 Bays
Drive Interface: SAS 12Gb/s
Maximum Internal Raw Capacity:
288 TB (calculate 24 TB HDD)
Maximum Raw Capacity with Expansion Units:
10,080 TB (calculate 24 TB HDD) -
Expansion and External Port
12Gb/s SAS Wide Port:
2 (onboard per controller)
USB Port:
1(front)/2(rear)
Others:
Console Port x1,Service Port (UPS) x1 -
Front I/O Ports
1 x Enclosure Status LED
1 x Enclosure Access LED
1 x Enclosure PowerButton/LED
1 x USB Port
1 x UID(UniqueIdentifier)Button/LED -

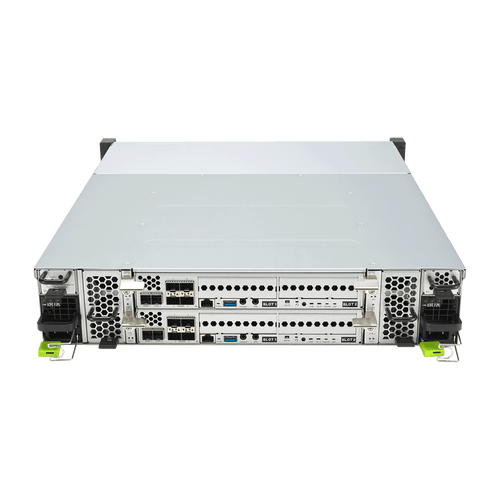

Rear I/O Ports
1 x Master/Slave LED
1 x Controller Status LED
1 x Dirty Cache LED
1 x UID(Unique Identifier) LED -
Dimensions
810.5mm(L)x434mm(W)x176mm(H) -
Form Factor
4U -
Weight
Net Weight : 36.81KG
Gross Weight : 57.67KG -
System Fan
8 -
Power Supply
1+1 Redundant 1600W 80 PLUS Platinum PSU
Rating: 100-127V~/220-240V~, 12A/10A (x2), 50/60Hz -
Regulatory Compliance
CE/ FCC/ BSMI/ CCC -
Enviroment
Operation temperature: 0℃ ~ 35℃
Non operation temperature: -20℃ ~ 60℃
Non operation humidity: 10% ~ 90% ( Non condensing) - Datasheet
