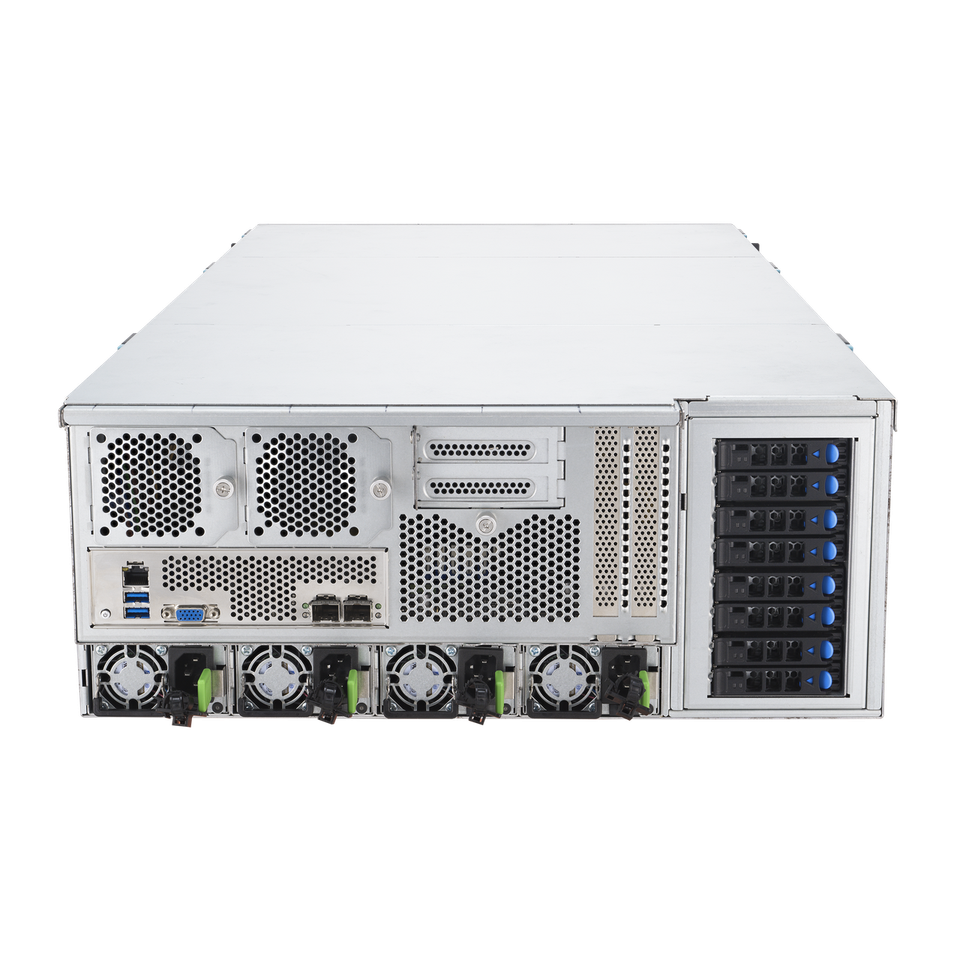

4U single-socket high-density storage server powered by AMD EPYC^™ 9004-series processor, supporting up to 12 × DDR5 DIMMs, 2 × SATA and 6 × NVMe SSD hot-swap bays, 60 tool-less 3.5-inch hot-swap bays, 2 × PCIe 5.0 x16 and 2 × PCIe 5.0 x8 slots, and onboard ASUS ASMB11-iKVM management for enterprise AI/HPC workloads.

• Outstanding performance: Ready for up to 96-core AMD EPYC^™9004-series CPU (360W TDP), supporting 12 × DDR5 4800 RDIMMs for a maximum of 3TB RAM, and 6-bay NVMe high-performance storage pool for low-latency data access.
• High-density storage: 60 tool-less, top-loading 3.5-inch SAS/SATA drive trays, supporting up to 1.4PB raw capacity. 6 × NVMe SSDs and 2 × SATA SSDs, and SED drive compatibility for flexible deployment.
• Versatile connectivity: Built-in dual 25GbE (SFP28), optional quad 25GbE. Supports 2 × dual-port 100GbE/200GbE NICs and SAS H/W RAID or HBA with PCIe 5.0 expansion slots for future-proof networking and storage upgrades.
• Modern simplicity: Integrated ASUS ASMB11-iKVM out-of-band management with ASPEED AST2600 controller. Intuitive, browser-compatible ASUS Control Center (ACC) for streamlined IT infrastructure management.
• Enterprise reliability: 800W 2+2 redundant (80 PLUS^® Platinum) power supplies, hot-swappable drive bays, and robust system cooling for maximum uptime.
• Broad application support: Ideal for big data and analytics, data lake, HPC, AI/ML cold data storage, and cloud service providers.
• SDS-ready node: Supports CEPH, open infrastructure storage, virtualization, data lake, and Tier2 hybrid storage system.

• Processor / System Bus

  1 x Socket SP5 (LGA 6096P)
  AMD EPYC™ 9005 processors (Up to TDP 360W)
  *TDP support by configuration.

• Memory

  Total Slots :
  12 (12-channel, 1 DIMM per Channel)
  Capacity :
  Total Maximum up to 3TB
  Memory Type :
  DDR5 4800 RDIMM/ 3DS RDIMM
  Memory Size :
  32GB RDIMM
  32GB 3DS RDIMM
  * Refer to www.asus.com/support for more information

• Expansion Slots

  Total 4 expansion slots
  2 x PCIE Gen5 x16 (FHHL)
  2 x PCIE Gen5 x8 (HHHL)

• Storage

  M.2
  1 x M.2 (PCIe Gen5x4, support 2280) (SATA Mode support)

• Drive Bays

  60x 2.5”/3.5" SATA/SAS hot-swap drive bays
  8x 2.5" NVMe hot-swap drive bays (6x NVMe+2x SATA)
  *HBA/ RAID card is required to support SAS hard drives

• System Fan

  4

• Networking

  1 x Management Port

• Graphic

  Aspeed AST2600 64MB

• Front I/O Ports

  2 x USB 3.2 Gen1 ports
  1 x USB 3.2 ports
  2 x NIC ports
  1 x System Reset Button
  1 x System ID Button
  1 x Power Button

• Rear I/O Ports

  2 x USB 3.2 ports
  2 x SFP28 25Gb/s
  1 x VGA port
  1 x RJ-45 Management LAN port

• Switch/LED

  Front Switch/LED:
  60 xHDD States LED (1-60)
  1 x Power LED
  1 x HDD (only M2/SATA) Active LED
  1 x FAIL LED
  1 x ID LED

• OS Support

  Please find the latest OS support from https://servers.asus.com/support/os

• Regulatory Compliance

  BSMI, CE, CB, RCM, FCC(Class A)

• Dimensions

  878.5(L) x 434(W) x 176(H) mm
  34.6(L) x 17.1(W) x 6.9(H) inch

• Form Factor

  4U

• Weight

  Net Weight : 33.3KG
  Gross Weight : 59.1KG

• Power Supply

  1+1 Redundant 800W 80 PLUS Platinum PSU
  Rating: 100-127V~/220-240V~, 12A/10A (x2), 50/60Hz
