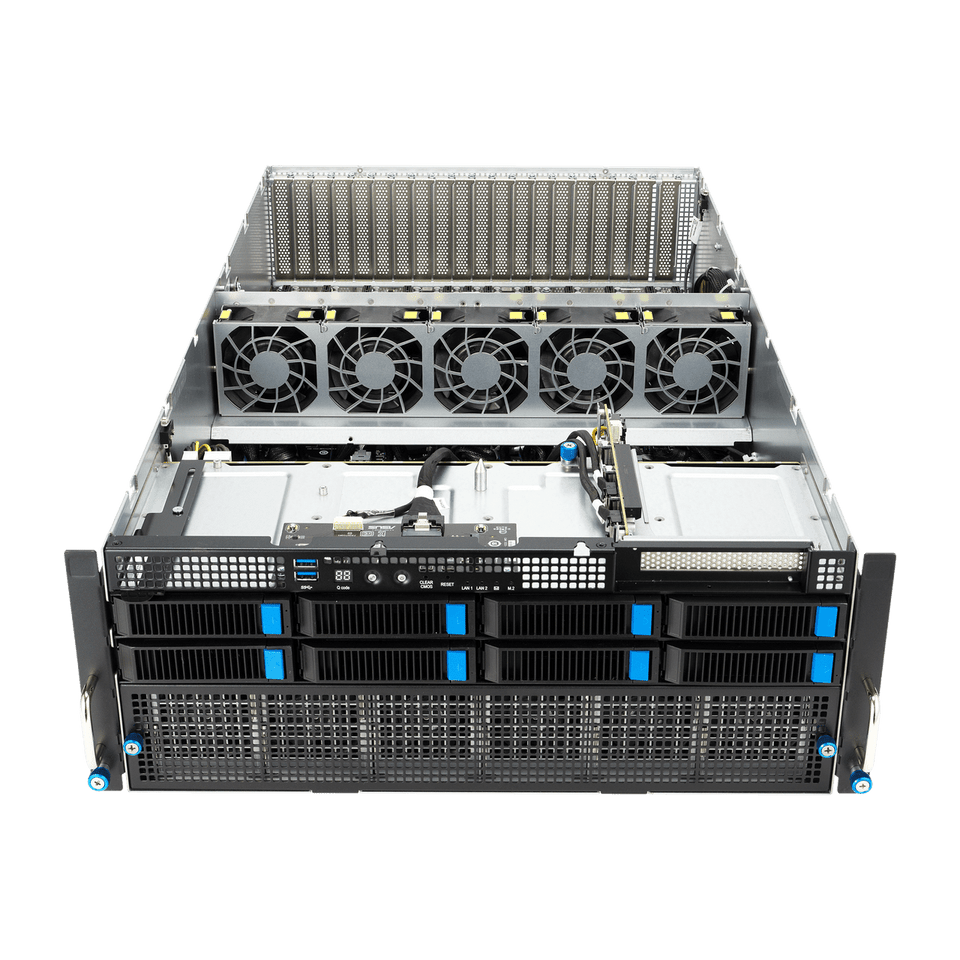

ASUS ESC8000A-E12P - 4U - Dual AMD EPYC 9004 Dual-Processor 4U GPU Server, up to 24 DIMM, 13 PCIe 5.0 slots, 3000W Titanium Power Supplies - 8xGPUs - 8x 3.5" SATA/SAS/NVMe - 24x DDR5 - 3000W 2+2 Redundant - ESC8000A-E12P
KEY FEATURES
- Powerful performance: Powered by AMD EPYC 9004 processors with 96 Zen 4 cores, 12-channel, up to 4800 MHz DDR5 and support for a maximum TDP of up to 400 watts per socket
- AI and HPC workloads ready: Up to eight dual-slot active or passive GPUs, NVIDIA NVLink® bridge, and NVIDIA Bluefield DPU support to enable performance scaling
- PCIe 5.0 Switch Solution: Empower communication between in-rack hosts and endpoints and provide the higher PCIe switching performance
- Power-efficient system design: Independent CPU and GPU airflow tunnels for thermal optimization and support for up to four 3000W Titanium redundant power supplies for uninterrupted operation
- Comprehensive cooling solutions: Designed for both liquid cooling and enhanced air cooling based on CPU TDP for versatile workloads
- Scale-up storage and expansion design: A total of eight bays in combination of Tri-Mode NVMe/SATA/SAS drives on the front panel and 13 PCIe 5.0 slots for higher bandwidth and system upgrade
- Flexible networking module design: Optional OCP 3.0 module with PCIe 5.0 slot in rear panel for faster connectivity
- Enhanced IT-infrastructure management: ASUS ASMB11-iKVM remote control with ASPEED AST2600, ASUS Control Center IT management software and hardware-level Root-of-Trust solution
Accelerate performance for HPC and AI workloads
Eight dual-slot GPU compute in 4U
ESC8000A-E12P is an AMD EPYC™ 9004 dual-socket server built for the demands of enterprise AI infrastructure to deliver unprecedented performance with industry-leading GPUs, faster GPU interconnect and higher-bandwidth fabric, and supports up to eight dual-slot active or passive GPUs scalable configuration with a choice of NVIDIA NVLink® Bridge or AMD Infinity Fabric™ Link to enable scaling of performance with increased bandwidth — ready to match your AI and HPC workloads.
Connectivity
PCIe 5.0 Switch Solution
This server features the latest Broadcom PEX8900 series of switches, supporting up to 1,024 Gbps (128 GBps) of raw bandwidth per port (x16) to create high-availability hyper-scale systems. It uses the PCI Express® 5.0 bus to empower communication between in-rack hosts and endpoints, simplifying connectivity while providing the highest PCIe switching performance available for data center servers, storage and networks. Take advantage of these industry-first features today for the most demanding hyper-converged AI/ML/DL applications.
Sustainability
Keep your data center green
Data centers can consume huge amounts of electricity, raising environmental concerns. ASUS servers are designed to optimize both total cost of ownership (TCO) and total cost to the environment (TCE), including thermal design, power efficiency and advanced cooling solutions — reducing the impact of our products on the planet.
Storage
Scalable design for growing workloads
ESC8000A-E12P is designed for easy scalability to fit growing businesses and workloads. With PCIe Gen 5.0 x16 slots that fit full-height, full-length GPU cards, ESC8000A-E12P features different combinations of storage and networking expansions and multiple interface types for flexible storage configurations.
Management
Comprehensive IT infrastructure solutions
Advanced ASUS management tools comprise IT assets management, security and reliability to improve the performance, up-time and real-time monitoring of the servers remotely — highly increasing the efficiency of IT infrastructure.
Performance
AMD EPYC 9004 series processors
ASUS and AMD work together to offer the latest EPYC 9004 servers that drive high performance, whether you need lightweight dual processors or building an exascale supercomputing of data centers. The AMD EPYC 9004 processors offer up to 96 Zen 4 cores with 12 channel DDR5 and PCIe 5.0 expansion.
