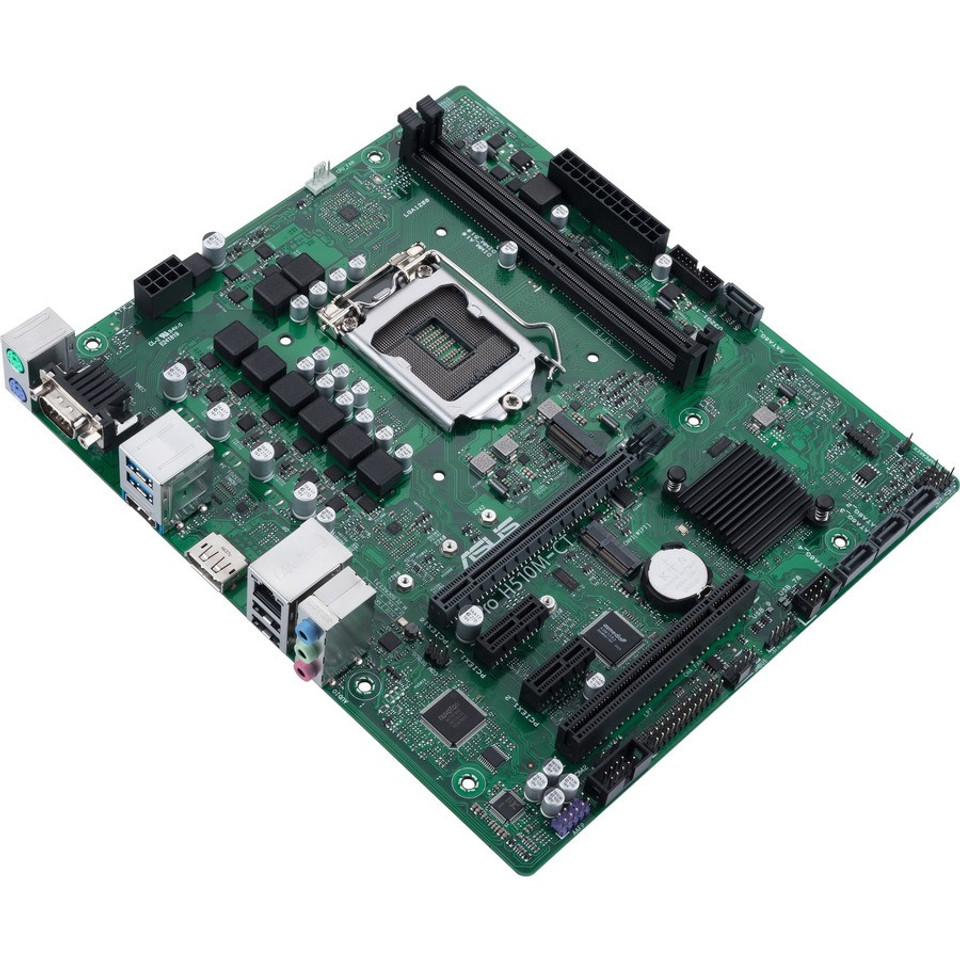

Asus PRO H510M-CT/CSM Desktop Motherboard - Intel H510 Chipset - Socket LGA-1200 - Micro ATX - Pentium Gold, Celeron, Core i5, Core i7, Core i9, Core i3 Processor Supported - 64 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 2 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 4 x SATA Interfaces

General Information

Manufacturer:   ASUS Computer International
Manufacturer Part Number:   PRO H510M-CT/CSM
Manufacturer Website Address:   usa.asus.com
Brand Name:   Asus
Product Series:   PRO
Product Model:   PRO H510M-CT/CSM
Product Name:   PRO H510M-CT/CSM Desktop Motherboard
Marketing Information:

Micro-ATX H510 business motherboard with enhanced security, reliability and manageability

• Intel® LGA 1200 socket: Ready for 11th Gen Intel® Core™ processors
• ASUS-exclusive self-recovering BIOS technology for automatic system BIOS recovery from a verified backup
• Supports SMBUS header that connects to a DASH LAN for remote IT management
• ASUS COM debug header for more efficient troubleshooting
• Event log for capturing and managing detailed system information
• Innovative moisture-resistant coating to protect the motherboard from harsh environments
• Commercial BIOS kit for faster and more efficient customization
• ASUS Control Center Express (ACCE) for easier IT endpoint management
• Ultrafast connectivity: PCIe® 4.0 and Intel® 1 Gb Ethernet

Pro

ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.

ASUS Corporate Stable Model

ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.

Product Type:   Desktop Motherboard

Processor & Chipset

Chipset Manufacturer:   Intel
Chipset Model:   H510
Total Processor Supported:   1
Processor Socket:   Socket LGA-1200
Processor Supported:   Celeron
Processor Supported:   Core i3
Processor Supported:   Core i5
Processor Supported:   Core i7
Processor Supported:   Core i9
Processor Supported:   Pentium Gold

Memory

Number of Memory Slots:   2
Memory Form Factor:   DIMM
Memory Form Factor:   UDIMM
Maximum Memory Supported:   64 GB
Memory Technology:   DDR4 SDRAM
Memory Speed Supported:   2133 MHz
Memory Speed Supported:   2400 MHz
Memory Speed Supported:   2666 MHz
Memory Speed Supported:   2800 MHz
Memory Speed Supported:   2933 MHz
Memory Speed Supported:   3200 MHz

I/O Controller

Controller Type:   Serial ATA/600

Video

Onboard Video:   CPU Dependent Video

Audio

Audio Channels:   7.1

Network & Communication

Gigabit Ethernet:   Yes

I/O Expansions

Number of Total Expansion Slots:   3
Total Number of PCI Express Slots:   3
Number of PCI Express x1 Slots:   2
Number of PCI Express x16 Slots:   1

Interfaces/Ports

Total Number of USB Ports:   4
Number of USB 2.0 Ports:   2
Number of USB 3.2 Gen 1 Ports:   2
HDMI:   Yes
DisplayPort:   Yes
Number of Network (RJ-45) Ports:   1

Onboard Interfaces

Number of SATA Interfaces:   4
Number of M.2 Interfaces:   1
Total Number of Onboard USB Ports:   5
Number of Onboard USB 2.0 Ports:   3
Number of Onboard USB 3.2 Ports:   2

Physical Characteristics

Form Factor:   Micro ATX
Width:   9.6"
Depth:   8.5"

Miscellaneous

Brand Compatibility:   Intel
Environmentally Friendly:   Yes
Environmental Certification:   RoHS
Country of Origin:   China
