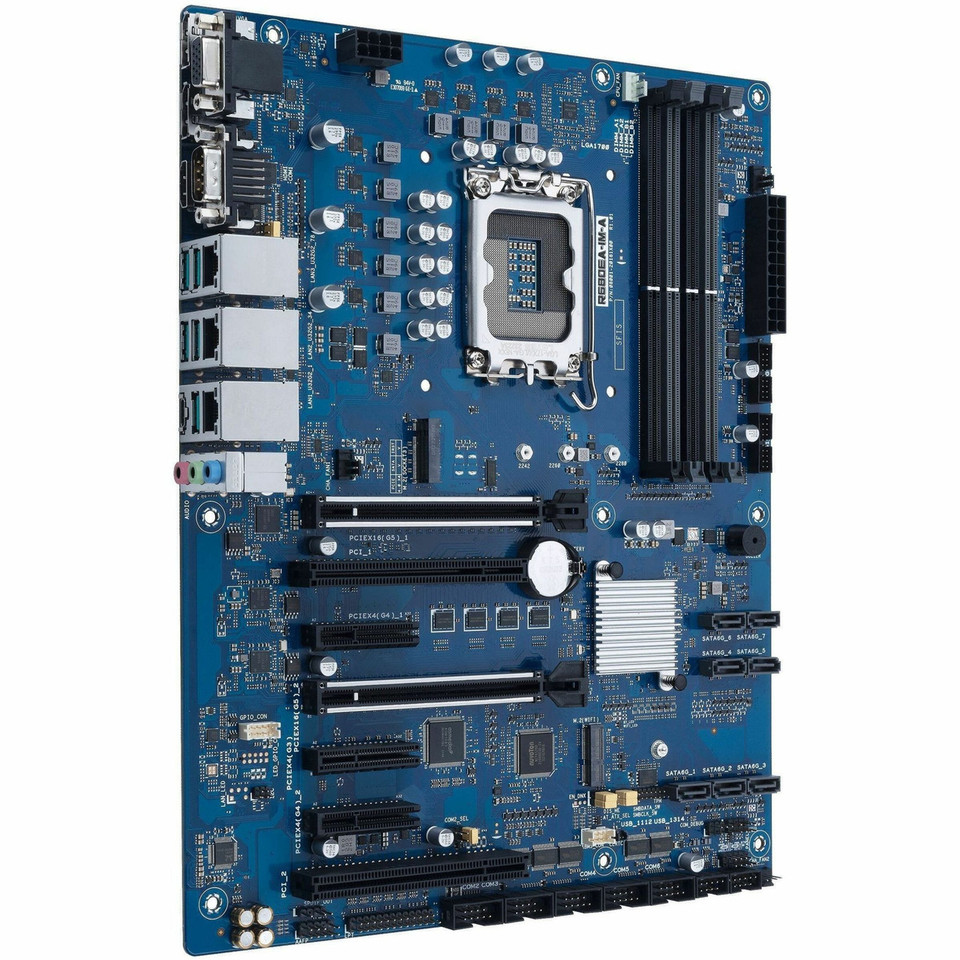

Asus R680Ea-A Industrial Motherboard

The Asus R680Ea-A is an industrial motherboard built on the Intel R680E chipset. It features the LGA-1700 socket, supporting a range of Intel processors, including Core i9, Core i7, Core i5, Core i3, Pentium, and Celeron processors from the 12th, 13th, and 14th generations.

With support for up to 128GB of DDR5 SDRAM across four UDIMM slots, this motherboard is ready for demanding applications. It boasts multiple PCI Express slots, adhering to PCI Express 3.0, PCI Express 4.0, and PCI Express 5.0 standards, including two PCI Express x16 slots for powerful graphics cards.

The R680Ea-A offers extensive storage options, including seven SATA interfaces with support for RAID 0, RAID 1, RAID 5, and RAID 10 configurations, as well as two M.2 interfaces for high-speed NVMe storage devices.

Connectivity is well-provided with three Gigabit Ethernet ports, ensuring fast and reliable networking. The motherboard also features multiple display outputs, including HDMI 2.1 and DisplayPort, alongside a classic VGA port.

Built in an ATX form factor, the R680Ea-A provides a robust foundation for industrial systems. Its "Environmental Certification" as RoHS compliant underscores its suitability for environmentally conscious deployments.

Key Features:

• Intel R680E Chipset
• Socket LGA-1700 (supports 12th/13th/14th Gen Intel Core i9/i7/i5/i3, Pentium, Celeron)
• Up to 128GB DDR5 SDRAM (4 x UDIMM slots)
• 2 x PCI Express x16 slots
• 7 x SATA ports (RAID 0/1/5/10 support)
• 2 x M.2 interfaces
• 3 x Gigabit Ethernet ports
• HDMI 2.1, DisplayPort, VGA outputs
• ATX Form Factor
• RoHS compliant
