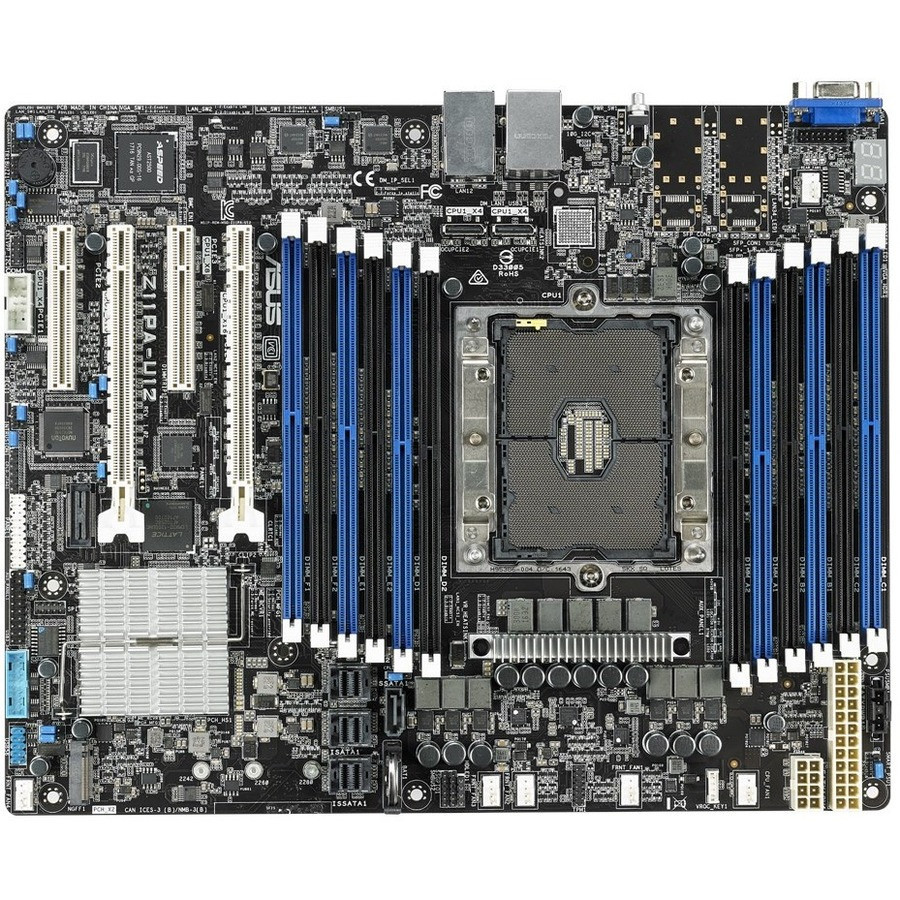

Z11PA-12 Server Motherboard
Asus Z11PA-12 Server Motherboard Intel Chipset -Socket P LGA-647 ATX Xeon Processor Supported -1.50 TB DDR4 SDRAM Maximum RAM -LRDIMM, RDIMM, DIMM -12 x Memory Slots Gigabit Ethernet -13 x SATA Interfaces MAX-84GB RDIMM ATX PCIEX16 GBE
Unmatched memory expandability with 12 DIMM slots
ASUS Z11PA-12 features 12 DIMM slots the most on any compact ATX motherboard giving it unmatched memory expandability. Together with support for dual double-Eck GPUs, Z11PA-12 makes an ideal platform for deep learning application development and education.
Dual OCuLink for efficient connections to NVMe devices
ASUS Z11PA-12 features dual onboard OCuLink to provide efficient port-O-ort connection with most OCuLink-Upported NVMe devices, eliminating the need for PCIe transaction cards.
Connect up to 13 6Gb/s SATA storage device
ASUS Z11PA-12 comes with three mini=AS HD connectors that support up to twelve SATA ports each for high=peed 6Gb/s connectivity with external devices and cleaner cable routing. Additionally, a 7=in SATA port provides flexibility to connect an optical drive or extra SATA device.
Comprehensive IT infrastructure management solution
The latest ASMB9=KVM module enables remote BIOS updates, fan control, standalone KVM with HTML 5 interface , video recording and BSOD capture. With out=f=and management, ASMB9=KVM provides around=he-Lock remote monitoring and diagnostics -Even if the server operating system is down or offline through a user-Riendly, web=ased graphical interface that works with all major browsers. ASUS Control Center (ACC) is a centralized and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables easier server management with functions such as BIOS updating without restarting the system, remote monitoring of multiple systems via mobile devices, and one-LICk software updates and dispatching.
Increased energy efficiency with ASUS ProCool Power Connectors
ASUS Z11PA-12 comes with ASUS ProCool Power Connectors, which decrease power connector temperature for reduced power loss and increased cost savings.
- Powered by Intel® Xeon® Scalable Platform to pack incredible power into minimal space (ATX Form Factor) with 12 DIMM slots and Dual Gigabit LAN providing best=n-Lass memory capacity and data bandwidth, ideal for Deep Learning Application Development, Education, SMB Groups, Print/File/Mail, or Entry Storage Servers.
- Three mini=AS HD + 7=in SATA port connectors support up to 13x SATA ports for high=peed 6Gb/s connectivity with external devices and cleaner cable routing
- Dual onboard OCuLink provides efficient port-O-ort connection with most OCuLink-Upported NVMe devices, eliminating the need for PCIe transaction cards.
- Integrated M.2 (NGFF) 2280 slot supports additional OS storage and PCIe 3.0 x4 bandwidth for 5.3X faster boot speeds than 6 Gb/s SATA III.
| Controller Type | Serial ATA/600 |
| Gigabit Ethernet | Yes |
| Limited Warranty | 3 Year |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| Graphics Controller Manufacturer | ASPEED |
| Graphics Controller Model | AST2500 |
| Onboard Video | On=oard Video Chipset |
| Number of Total Expansion Slots | 4 |
| Number of PCI Express x8 Slots | 2 |
| Number of PCI Express x16 Slots | 2 |
| Total Number of PCI Express Slots | 4 |
| Maximum Memory | 1.50 TB |
| 1.50 TB | |
| Memory Technology | DDR4 SDRAM |
| Number of Memory Slots | 12 |
| Memory Form Factor | DIMM |
| RDIMM | |
| LRDIMM | |
| Memory Speed Supported | 2666 MHz |
| 2400 MHz | |
| 2400 MHz | |
| 2666 MHz |
| VGA | Yes |
| Number of Network (RJ-5) Ports | 3 |
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Weight (Approximate) | 2.14 lb |
| Form Factor | ATX |
| Width | 12" |
| Depth | 9.6" |
| Processor Supported | Xeon |
| Total Processor Supported | 1 |
| Processor Socket | Socket P LGA-647 |
| Chipset Manufacturer | Intel |
| Number of SATA Interfaces | 13 |
| Total Number of Onboard USB Ports | 2 |
| Number of Onboard USB 2.0 Ports | 1 |
| Number of Onboard USB 3.0 Ports | 1 |
| Number of M.2 Interfaces | 1 |
| Product Type | Server Motherboard |
| Manufacturer Part Number | Z11PA-12 |
| Manufacturer Website Address | http://usa.asus.com |
| Manufacturer | ASUS Computer International |
| Product Model | Z11PA-12 |
| Product Name | Z11PA-12 Server Motherboard |
| Brand Name | Asus |
