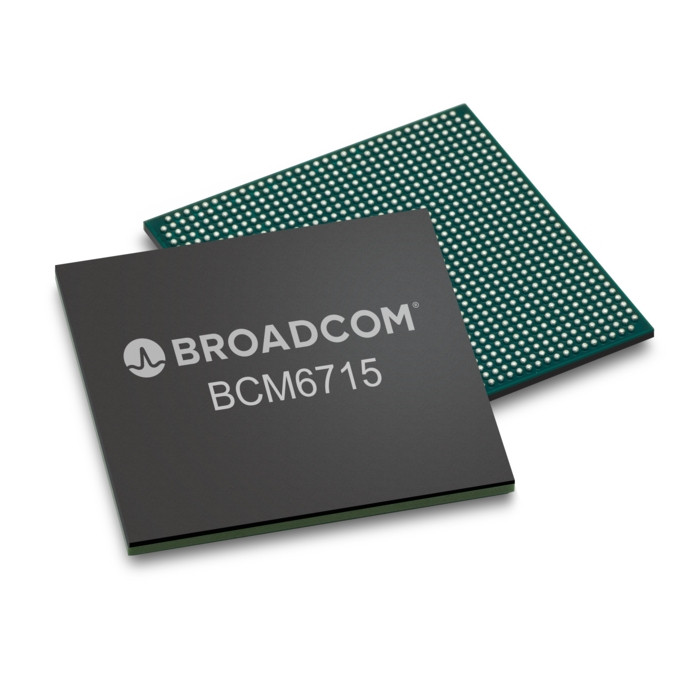

Broadcom 4x4 802.11ax Release 2 Wi-Fi 6/6E Residential Access Point (AP) Chip - BCM6715
The BCM6715 is a 4x4 IEEE 802.11ax release 2 Wi-Fi 6/6E MAC/PHY/radio system-on-a-chip (SoC) device. The BCM6715 device can operate in 2.4 GHz, 5 GHz and 6 GHz bands selectively up to 160MHz channel bandwidth. Taking advantage of multi-user technologies such as OFDMA (downlink and uplink) and MU-MIMO (downlink and uplink), the BCM6715 delivers better throughput and reach to consumer devices in a home network. The device can be used in routers, residential gateways, Wi-Fi extenders and Wi-Fi mesh configurations.
Features
- Supports 4 spatial streams of IEEE 802.11a/b/g/n/ax release 2 Wi-Fi 6/6E
- Selectable 2.4GHz, 5 GHz, 6 GHz support
- Up to 160 MHz channel bandwidth
- 1024-QAM modulation rate in all bands
- Automated Frequency Coordination (AFC)
- Uplink and downlink OFDMA increases Wi-Fi capacity in congested environments
- Uplink and downlink MU-MIMO
- Supports LDPC in both TX and RX direction for increased wireless coverage
- ZeroWait DFS
- DPD external FEMs to lower system power consumption
- Full compliance with IEEE and Wi-Fi Alliance (WFA) Wi-Fi 6/6E specifications
Applications
- Residential Wi-Fi access points, routers and repeaters
- Service provider gateways
