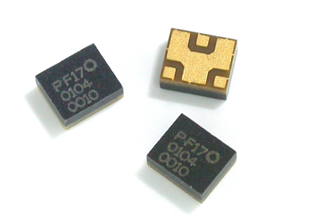

Broadcom ACMD-7403 Miniature UMTS Band II / PCS Duplexer
The Avago Technologies’ ACMD-7403 is a miniature duplexer designed for use in UMTS Band II and PCS (Blocks A–F) handsets.
The ACMD-7403 enhances the sensitivity and dynamic range of handset receivers by providing more than 54 dB attenuation of the transmitted signal at the receiver input and more than 44 dB rejection of transmit-generated noise in the receive band.
Maximum Insertion Loss in the Tx channel is only 2.7 dB, which minimizes current drain from the power amplifier. Insertion Loss in the Rx channel is a maximum of 3.2 dB, thus improving receiver sensitivity.
The ACMD-7403 is designed with Avago Technologies’ Film Bulk Acoustic Resonator (FBAR) technology, which makes possible ultra-small, high-Q filters at a fraction of their usual size. The excellent power handling capability of the FBAR bulk-mode resonators supports the high output power levels needed in PCS handsets while adding virtually no distortion
The ACMD-7403 also utilizes Avago Technologies’ innovative Microcap bonded-wafer, chip scale packaging technology. This process allows the filters to be assembled in a molded chip-on-board module that is less than 1.2 mm high with a footprint of only 3.0 mm x 3.0 mm.
Features
Miniature Size
• 3.0 x 3.0 mm Max footprint
• 1.2 mm Max height
High Power Rating
• 33 dBm Abs Max Tx Power
• Lead-Free Construction
