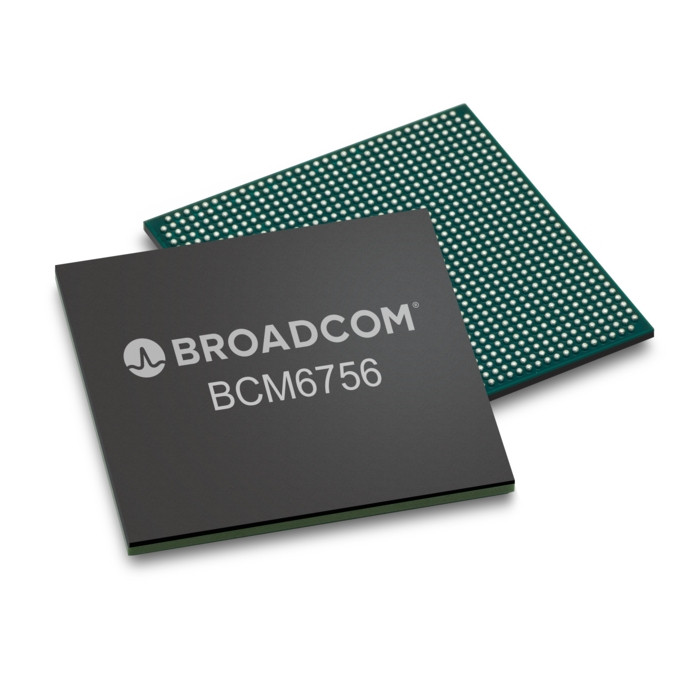

Broadcom Dual 2x2 160MHz Wi-Fi 6/6E Quad-core ARM SoC - BCM6756
The BCM6756 is a dual 2x2 160MHz Wi-Fi 6/6E system-on-a-chip (SoC) communications processor that enables low-power, small size, multi-gigabit access points, routers, repeaters and service provider gateways for residential applications. The SoC features a quad-core ARM Cortex CPU with a dual 802.11ax two spatial stream (2×2) 160MHz WLAN radio and an integrated 802.3-compliant Gigabit PHY.
Features
- Quad core ARM-A7 with 32 KB I/D caches and 512 KB L2 cache
- Dual 2x2 IEEE 802.11a/b/g/n/ax compliant MAC/BB/radios
- Dual 2x2 radios selectable 2.4GHz, 5GHz, or 6GHz up to 160MHz bandwidth channels
- Integrated 2.4 GHz power amplifiers and low-noise amplifiers
- Integrated IEEE 802.3 compliant Gigabit PHY
- 16-bit DDR3 & DDR4 memory interface
- 2 Lane PCIe Gen2 controller
- HSGMII and RGMII ports
- Dual USB ports
- Automated Frequency Coordination (AFC)
- Uplink and downlink OFDMA increases wifi capacity in congested environments
- Downlink MU-MIMO
- 1024-QAM modulation rates
- Supports LDPC in both TX and RX direction for increased wireless coverage
- Supports DFS
- Supports DPD external FEMs reducing power consumption
- Full compliance with IEEE and Wi-Fi Alliance (WFA) Wi-Fi 6/6E specifications
Applications
- Residential Wi-Fi access points, routers and extenders
