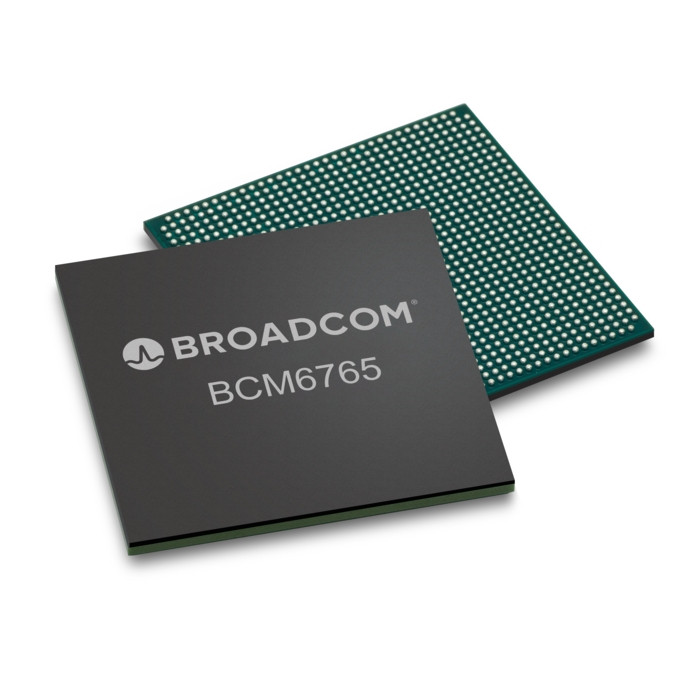

Broadcom Dual 2x2 320 MHz Wi-Fi 7 quad-core ARM SoC - BCM6765

The BCM6765 is a dual 2x2 320 MHz Wi-Fi 7 system-on-a-chip (SoC) communications processor that enables low-power, small form factor multi-gigabit access points, routers, repeaters and service provider gateways for residential applications. The SoC features a quad-core ARMv8 CPU with dual 802.11be 2x2 spatial stream 320 MHz WLAN radios and an integrated 802.3-compliant 10 Gigabit Ethernet PHY.

Features

• Integrated Quad-Core 2.0 GHz ARMv8 CPU
• Dual 2x2 radios that support 2.4, 5 and 6 GHz operation
• Integrated 2.4 GHz power amplifiers
• Support for Digital Pre-Distortion (DPD) external FEMs for reduced power consumption
• Up to 8.64 Gbps combined PHY rates
• Up to 320 MHz channel bandwidth
• 4096-QAM modulation
• Multi-Link Operation (MLO) with up to 3-link support with external third radio
• Full compliance with IEEE and WFA Wi-Fi 7 R1 specifications
• SpeedBooster support
• Automated Frequency Coordination (AFC) support
• Integrated IEEE 802.3 compliant 10 Gigabit Ethernet PHY
• 16-bit DDR4-3200 and LPDDR4/4x-4267 memory interface
• Dual PCIe Gen3 controllers (two lane + single lane)
• 10 Gbps USXGMII-S port
• Dual USB ports (3.2 + 2.0)

Applications

• Residential Wi-Fi access points, routers and extenders
