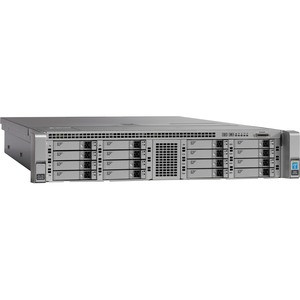

Cisco C240 M4 2U Rack Server - 2 x Intel Xeon E5-2640 v4 2.40 GHz - 128 GB RAM - 16 TB HDD - (4 x 4TB) HDD Configuration - 480 GB SSD - (1 x 480GB) SSD Configuration - 12Gb/s SAS, Serial ATA Controller - 2 Processor Support - 1.50 TB RAM Support - JBOD, 0, 1, 10 RAID Levels - Matrox G200e Up to 8 MB Graphic Card - 10 Gigabit Ethernet - 2 x 650 W - Redundant Power Supply COMPUTE & STORAGE SERVER
The UCS C240 M4 LFF server is the newest 2-socket, 2U rack server from Cisco, designed for both performance and expandability over a wide range of storage-intensive infrastructure workloads from big data to collaboration.The enterprise-class UCS C240 M4 LFF server extends the capabilities of Cisco's Unified Computing System portfolio in a 2U form factor with the addition of the Intel® Xeon E5-2600 v3 and v4 series processor family that delivers the best combination of performance, flexibility and efficiency gains. In addition, the UCS C240 M4 LFF server provides 24 DIMM slots, up to 6 PCI Express (PCIe) 3.0 slots, up to 12 front-loading LFF drives plus two (optional) internal SFF SATA boot drives for a total of 14 internal drives.
The C240 M4 server includes a modular LAN on motherboard (mLOM) slot for installation of a Cisco Virtual Interface Card (VIC) or third-party network interface card (NIC) without consuming a PCI slot in addition to 2 x 1 GbE embedded (on the motherboard) LOM ports. These features combine to provide outstanding levels of internal memory and storage expandability along with exceptional performance.
The Cisco UCS C240 M4 server can be used standalone, or as part of the Cisco Unified Computing System, which unifies computing, networking, management, virtualization, and storage access into a single integrated architecture enabling end-to-end server visibility, management, and control in both bare metal and virtualized environments.
User-Manual Technical Specs
Network & Communication
| Ethernet Technology | 10 Gigabit Ethernet |
Controllers
| RAID Levels | JBOD, 0, 1, 10 |
| Controller Type | Serial ATA |
| 12Gb/s SAS | |
| RAID Supported | Yes |
Display & Graphics
| Graphics Controller Manufacturer | Matrox |
| Graphics Controller Model | G200e |
| Graphics Memory Capacity | 8 MB |
| 8 MB |
Memory
| Maximum Memory | 1.50 TB |
| 1.50 TB | |
| Standard Memory | 128 GB |
| Memory Technology | DDR4 SDRAM |
Power Description
| Input Voltage | 230 V AC |
| 120 V AC | |
| Number of Power Supplies Installed | 2 |
| Redundant Power Supply | Yes |
| Maximum Power Supply Wattage | 650 W |
Physical Characteristics
| Weight (Approximate) | 67.46 lb |
| Form Factor | Rack |
| Rack Height | 2U |
| Height | 3.4" |
| Width | 17.6" |
| Depth | 29.1" |
Processor
| Processor Speed | 2.40 GHz |
| Processor Type | Xeon |
| Processor Model | E5-2640 v4 |
| Processor Core | Deca-core (10 Core) |
| Processor Manufacturer | Intel |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 2 |
Processor & Chipset
| Processor Speed | 2.40 GHz |
| Processor Type | Xeon |
| Processor Model | E5-2640 v4 |
| Processor Core | Deca-core (10 Core) |
| Processor Manufacturer | Intel |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 2 |
General Information
| Product Type | Server |
| Manufacturer Part Number | UCS-COPC-C240M4LVS |
| Manufacturer Website Address | http://www.cisco.com |
| Packaged Quantity | 1 |
| Manufacturer | Cisco Systems, Inc |
| Product Name | UCS C240 M4 Server |
| Product Series | C240 M4 |
| Brand Name | Cisco |
Storage
| Optical Drive Type | No |
| Hard Drive Interface | SAS |
| Solid State Drive Interface | Serial ATA/600 |
| Total Hard Drive Capacity | 16 TB |
| Hard Drive Configuration | 4 x 4TB |
| 4 x 4TB | |
| Solid State Drive Configuration | 1 x 480GB |
| 1 x 480GB | |
| Total Solid State Drive Capacity | 480 GB |
