Name: ClearOne Audio Expander for BMA 360DX - 910-3200-306
Brand: CLEARONE COMMUNICATIONS
SKU: UK-CLR-910-3200-306
Price: 890 GBP
Availability: InStock

ClearOne Audio Expander for BMA 360DX - 910-3200-306

Product code: UK-CLR-910-3200-306

Condition: New

Availability: Vendor Direct Ship | ETA - Request A Quote | Email: sales@hssl.uk | Call Us: +44 330 043 2524

£890.00

ClearOne Audio Expander for BMA 360DX - 910-3200-306

£890.00

Description
Warranty Information
Shipping Policy

Description

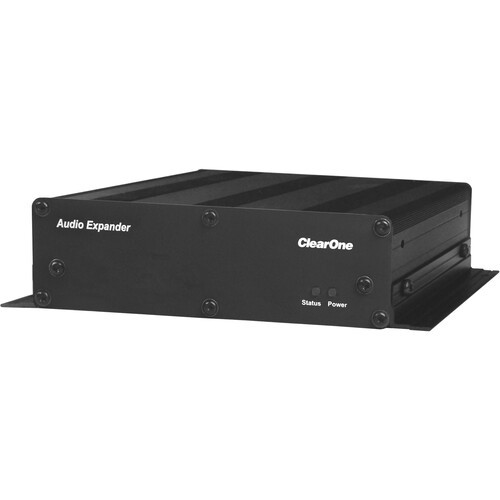

ClearOne Audio Expander for BMA 360DX - 910-3200-306

Enhance you BMA 360DX ceiling tile with the ClearOne Audio Expander, a small peripheral that allows you to connect to all types of audio devices within your room including microphones, line inputs and outputs, and USB audio.

At a Glance

There are 4 professional quality flexible analog channels that can be independently configured as either input or output
As an input, the channel has a generously large gain range allowing it to connect to all types of professional and consumer level sources. For microphones that require it, clean +48 volt phantom power can be enabled
As an output, a channel can be configured for either line level or mic level
The USB-C connector provides driverless 2-channel USB Audio for Windows, Mac, and Linux computer systems, allowing easy BYOD connectivity
ClearOne P-Link provides audio, control, and power connectivity from the BMA 360DX, using a single Cat 6 cable

ClearOne Audio Expander Specs

Analog I/O	4 x Mic/Line Inputs or 4 x Mic/Line Outputs, Selectable: 0.2" / 3.8 mmBlue, Male Header Frequency Response: 20 Hz to 22 kHz at 0 dBu , ±0.5 dB Equivalent Input Noise (EIN): 20 kHz BW, Max Gain, Rs = 150 Ohms, -126 dBu THD + Noise: 20 Hz to 22 kHz at 0 dBu, Line Level, < 0.01 % 20 Hz to 22 kHz at -56 dBu, Mic Level, < 0.2 % Dynamic Range: 20 Hz to 22 kHz at 0 dBu, > 105 dB Crosstalk (Mic/Line): Channel to Channel, Stimulus at 20 dBu to Receptor at -56 dBu, 1 kHz, < 0.05 % (or -66 dB) of Stimulus Signal at 1 kHz, 20 dBu (or 7.746 Vrms) Input Impedance (Mic/Line balanced): Balanced (Line to Ground), 2.2 Kilohms, 1 % Nominal Input Level: -56 dB to 0 dB, 7 dB Step Coarse Gain (Adjustable) Maximum Input Level: +20 dBu Phantom Power: Impedance: 6.81 Kilohms, 48 V Output Impedance (Mic/Line balanced): Balanced, 95 Ohms, 1 % Nominal Output Level: -40 dBu or 0 dBu Maximum Output Level: +20 dBU (When Set for Line Level) -20 dBU (When Set for Mic Level)
USB Audio	Type: USB-C Connector, Digital Audio 2 Channels Stereo 48 kHz, 24-Bit
PoE	Peripheral PoE PoE In: RJ-45 IEEE802.3 bt Compliant Devices or Equivalent PoE++ - Mode A, Mode B, and 4-Pair Mode
Peripheral Connectivity	P-Link in and Out Ports Type: RJ-45 P-Link Power: 56 V 36 W IEEE 802.3 at Compliant Devices or Equivalent, Mode B Cable: Solid Core 23 AWG, Factory Terminated Cat 6 Distance (Normal Distance Mode): Up to 200' / 60 m
Indicator	Power LED: Blue Status LED: Blue, Red
Power Consumption	100-240 VAC, 50/60 Hz 120 VAC, 60 Hz at 0.167 A Thermal: 34.8 BTU/Hr 9.6 W Typical
Operating Temperature	14 to 104°F / -10 to 40°C
Dimensions	6.8 x 6.7 x 1.7" / 17.2 x 17.0 x 4.4 cm
Weight	3.1 lb / 1.4 kg
