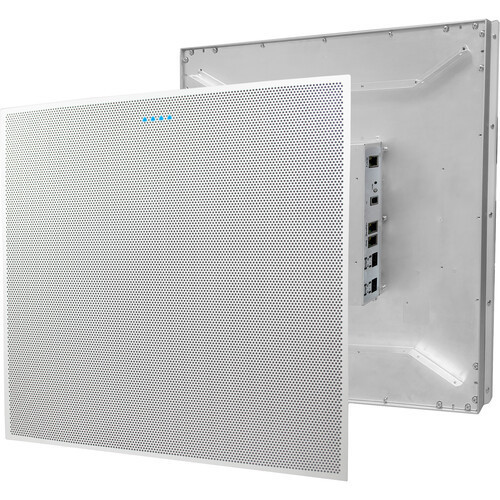

ClearOne BMA 360DX Ceiling Tile Microphone Array, DSP with Dante, and Amplifier (24") - 910-3200-220

Combine, route, and process all audio signals without compromise with the ClearOne BMA 360DX, an advanced all-in-one 24" ceiling tile that combines an advanced beamforming microphone array, a fully integrated DSP processor with Dante, and a multi-channel amplifier.

The BMA 360DX eliminates rack space and provides simplicity and affordability for both AV and IT practitioners. Setup is quick, thanks to the automatic detection and configuration of peripherals including additional microphone arrays, USB expanders, and analog audio interfaces. Additionally, the BMA 360DX is compatible with CONVERGE AV Manager software for the ultimate in control.

Key Features

The platform elegantly combines an advanced beamforming microphone array, a fully integrated DSP processor with Dante, and a multi-channel amplifier as a single ceiling tile at an unbeatable price. With everything on board, its scalable design easily adapts to a variety of meeting spaces.
This consolidated design eliminates rack space, reduces packaging, storage, and shipping requirements, providing a more environmentally friendly meeting solution.
The simplicity and affordability of this breakthrough design finally offers both AV and IT practitioners alike, the opportunity to make supreme professional-quality audio accessible to all.
Setup is quick: automatic detection and configuration of peripherals like additional beamforming microphone arrays, USB expanders, and analog audio interfaces means no programming is needed. Simply connect the cables and you’re conferencing.
The BMA 360DX is scalable for a variety of meeting spaces and can even auto-detect and preconfigure 2 additional connected BMA 360 beamforming ceiling tiles.
The BMA 360DX auto-detects and pre-configures ClearOne peripheral options including USB expanders, analog audio I/Os, and HDMI audio de-embedders.
ClearOne’s 7G AEC and adaptive acoustic processing provides unrivaled echo elimination and full-duplex audio, even in the most challenging spaces.

More Features

Deep Sidelobe Beamforming, DsBeam, provides unparalleled sidelobe depth, below -40 dB, resulting in superior rejection of reverb and noise in difficult spaces for superb clarity and intelligibility.
ClearOne’s BMA 360DX breakthrough technologies, FiBeam, DsBeam, and 7G AEC, combine to create VividVoice, a significant advancement for professional conferencing which ensures an equitable meeting experience.
Built-in power amplifiers, selectable as 4 x 15W or 2 x 30W, make driving loudspeakers simple and convenient.
In large spaces, the Voice Lift feature provides a powerful and simple way to drive multiple speaker zones with unmatched gains, allowing everyone to hear every word.
Built-in control for networked PTZ cameras, provides an engaging and seamless visual experience, and eliminates the complexity and expense of external controllers for camera tracking.
CONVERGENCE AV Manager software simplifies the management and monitoring of the BMA360DX and other ClearOne devices, including DSP processors, wireless microphones, and cameras.
Incorporates a VESA-mount hole pattern that supports pole mounting. Hard-ceiling mount adapter kits are also available.

All-In One Design

The BMA 360DX combines a beamforming microphone array, integrated DSP processor with Dante, and multi-channel amplifier in a single ceiling tile. This all-in-one design eliminates rack space, reduces installation complexity, and provides professional-quality audio at an unbeatable price.

Easy Setup

Setup is remarkably simple: just connect the cables and you're ready. The system automatically detects and configures peripherals like additional beamforming microphone arrays, USB expanders, and analog audio interfaces with no programming required.

ApplicatIons

The BMA 360DX is ideal for conference rooms, boardrooms, courtrooms, classrooms, telemedicine facilities, and theaters. It can cover up to 600ft² and works with ceiling heights from 7 to 20'.

Advanced Processing

It features 7G AEC for echo elimination, noise suppression, auto-mixing, equalization filters, delays, feedback eliminators, compressors, limiters, and Dante integration. The DsBeam technology provides superior rejection of reverb and noise.

ClearOne 910-3200-220 Specs

Microphone	True Frequency Invariant Beamformer: Gain Response Is Unvarying Across Frequency Beamwidths: 35, 45, and 55° with Frequency Invariance Beamforming Range: 100 Hz to 20 kHz Deep Sidelobes: Down to 45 dB of Depth Beam Pointing Accuracy: 0.2 dB Dynamic Range: 20 Hz to 20 kHz, >70 dB Number of Beams: Up to 12 Room Patterns: Full Circle/Square, Rectangular, Semi-Circle/Classroom, Custom Beams Coverage Sizes: Up to 600ft² / 58m² Ceiling Height: Configurable with CONSOLE One from 7 to 20'
Amplifier Output	Type: 0.2" / 5.08 mm Header, Phoenix-Type Euroblock Audio: 4 Channels Output Power: 4 x 15 W Max, 8-Ohm load, or 2 x 30 W, 4-Ohm load, Bridged Frequency Response: 20 Hz to 22 kHz, ±0.5 dB
Configuration	Acoustic Echo Cancellation (AEC) On/Off Noise Cancellation (NC) On/Off Range: 6 to 25 dB Depth Automatic Level Control (ALC) On/Off Gain Adjust Mute On/Off
Ethernet	Port Type: RJ45, 10/100 Mb/s Ethernet Network, Auto Negotiation IP Address: IPv4
Dante / AES67 Channels	Port Type: RJ45 Gigabit Ethernet Connector for Primary Port Audio: Digital Audio, 8 x 8 Bidirectional Channels Sample Rate: 48 kHz Sample Bit Depth: 24-Bit AES67 Mode: Enabled through Dante Controller Software
Tracking	Camera Tracking Supported Cameras: Unite 150, Unite 160, Unite 200, and Unite 260 Communication Protocol: VISCA Communication Options: Ethernet (VISCA over IP)
Software	CONSOLE One
Mounting	Ceiling Mount: 24" Drop-Ceiling Grid VESA Mount Ready: 100 mm Hole Pattern, M 4 x 10 mm
P-Link Connector	Ports Type: RJ45 (Cat 5e or 6) P-Link Out: Proprietary Peripheral Bus Audio: Up to 2 BMA 360 Units + up to 2 Audio Expander Units + up to 2 HDMI Expander Units + up to 2 USB Expander Units Cable: Solid Core 23 AWG, Factory-Terminated Cat 5e or 6 Cable Distance: Up to 200' / 60 m
PoE	PoE++ Port Port Type: RJ45 PoE Power Power on All Pairs 56 V 90 W IEEE 802.3 bt Compliant Devices or Equivalent, Mode A and B, Midspan Cable: Solid Core, 23 AWG, Factory Terminated Cat 6 PoE Requirements No Speakers: 36 W PoE Speakers: Requires 56 V 90 W IEEE 802.3 bt PoE
Thermal	270 BTU/hr at Max Power
Operating Temperature	14 to 104°F / -10 to 40°C Ambient Temperature
Power	Power Source: PoE Injector or Equivalent Power Consumption: 100-240 VAC, 50/60 Hz 23 W Typical without Speaker Amp 55 W at 1/3 Power x 4 at 1 kHz
Dimensions	23.7 x 23.7 x 2.1" / 602.0 x 602.0 x 53.3 mm
Weight	11.1 lb / 5.0 kg
