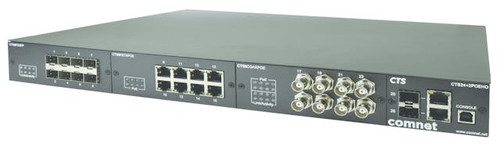

ComNet Layer 2 Industrially Hardened Managed Ethernet Switch - 28 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-FX - 2 Layer Supported - Modular - 4 SFP Slots - Twisted Pair, Optical Fiber - 1U High - Rack-mountable - Lifetime Limited Warranty
The ComNet CNGE28FX4TX24MSPOE2/48 Layer 2 Managed 28 Port Ethernet Switch supports twenty-four 10/100/1000 BASE-TX ports and four 1000BASE-FX ports of Ethernet data. PoE+ power is available for distribution across all 24 BASE-TX ports. The four 1000BASE-FX combination ports are 1000TX or SFP configurable for fiber type (multimode or single-mode), connector type and distance. Dual 48 VDC input power design ensures vital network capabilities with minimum downtime. Utilizing RSTP/STP (802.1w/1D) MSTP, and X-Ring redundant ring topologies, a network recovery time of <20 ms is provided for protection from network faults or temporary interruptions. The CNGE28FX4TX24MSPOE2/48 is optically (1000BASE-FX) and electrically compatible with any IEEE 802.3 compliant Ethernet device and are hardened for use in harsh operating environments.
Features
- Port lock to prevent access from unauthorized MAC address
- Windows utility, eConsole, supports centralized management, and is web-based configurable, or by Telnet and console (CLI) ports
- STP/RSTP/MSTP supported
- Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low- line voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.
- Uses SFP modules for fiber and connector type, and distance
- Dual redundant power supply inputs allow for external power supplies with no moving parts (fans) to be used.
- Supports 24 Gigabit Ports, and four combo ports with 100/1000BASE-FX optical ports with optional ComNet SFPs
- 56 Gbps Backplane for layer 2 traffic forwarding
- IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic & Port Trunking for ease of bandwidth management
- EEE 802.3at Compliant for PSE. Up to 30W of PoE+ power available per port. 720W total PoE power available.
