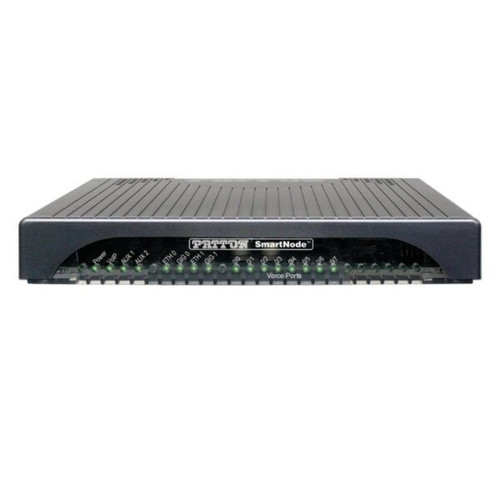

Patton Smart Node 4141 is a VoIP gateway for connecting eight analog devices to your SIP network. This model of the SN4141 features 8 FXS ports. The Smart Node 4141 Series of VoIP Media Gateways support up to eight phone or fax calls. The SN4141 is the perfect choice for All-IP applications where either old, non-replaceable telephones have to be integrated into a UCC environment, or for good old fax devices to be migrated to the next-generation network infrastructure. Patton‚ Smart Node 4141 Series delivers the legacy phone interfaces, service transparency, and flexible integration required for All-IP networks.
Core Features:
- 8-FXS Ports
- 8-VoIP Calls, or 4 SIP-SIP calls (SIP b2b UA) upgradeable (max. 200)
- Optional SIP-TLS/SRTP; Transcoding (max. 4 calls)
- 1x Gig Ethernet
- External UI power (100–240 VAC) NA/EU
- Advanced Local Call Switching
- Network Monitoring
- Easy Management & Provisioning
- Utilizes proprietary Trinity‚ software for enhanced security.
- Full VoIP protocol support
- Ease of Use – Patton‚WebWizard
- Compatible with Patton Cloud
| Weight | 2.2 lbs |
|---|---|
| Dimensions | 8.2 × 6.5 × 1.3 in |
| Brand | Patton |
| Device Ports | FXS, Gigabit |
| Number of Ports | 8 FXS |
FXS Connectivity:
- 2-wire Loopstart on RJ-11/12
- EuroPOTS (ETSI EG201188)
- Programmable AC impedance, feeding, ring and onhook voltage
- Caller-ID FSK and ITU V.23/Bell 202 generation
- Long Reach FXS—10 km @ 3REN load
- Secondary Surge Protection
Connectivity:
- One or two 10/100/1000BaseT Ethernet ports
- USB port
- Auto-MDIX
- DHCP Client
- PPPoE Client (multi-session)
- IP Multi-Netting, VLAN, Secondary IP
- IPv4 and IPv6 – Dual Stack
- ICMP
- Dynamic and static NAT and NAPT
- ACL, Stateful Firewall
- DNS, DynDNS
- DHCP Server
- SNTP Client
