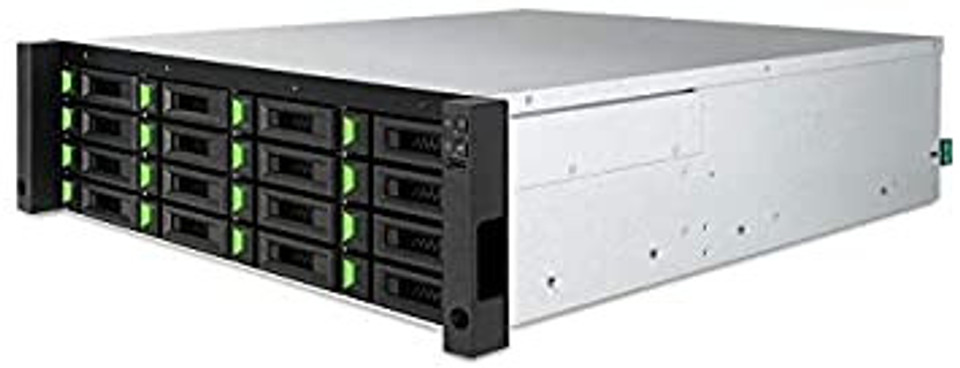

3U 16-bay, LFF
Dual-active or Single-upgradable controller
Intel® Xeon® 4-core processor (8-core processor models are also available
DDR4 ECC 8GB, up to 128GB (four DIMM slots, insert two DIMMs or more will boost performance)
4 x 16Gb FC (SFP+) ports
2 x 16Gb FC (SFP+) ports
4 x 10GbE iSCSI (SFP+) ports
2 x 10GbE iSCSI (RJ45) ports
4 x 1GbE iSCSI (RJ45) ports
Host Card Slot 1 (optional):
4 x 16Gb FC (SFP+) ports¹
2 x 16Gb FC (SFP+) ports¹
4 x 10GbE iSCSI (SFP+) ports¹
2 x 10GbE iSCSI (RJ45) ports
4 x 1GbE iSCSI (RJ45) ports
Built-in 2 x 10GBASE-T iSCSI (RJ45) ports
Built-in 1 x 1GbE management port
Mix & match 3.5" & 2.5" SAS, NL-SAS, SED HDD
2.5” SAS, SATA² SSD
Up to 10 expansion units using XD5324 (LFF 24-bay), XD5316 (LFF 16-bay), XD5312 (LFF 12-bay), XD5326 (SFF 26-bay) 12Gb SAS expansion enclosure
Up to 4 expansion units using XS5360 (LFF 60-bay) 12Gb SAS expansion enclosure
616 MAX Drives supported
19” Rackmount
130.4 x 438 x 515 mm
Cache-to-Flash module (optional)
Battery backup module + Flash module (To protect all memory capacity)
Super capacitor module + Flash module (To protect up to 16GB memory per controller)
USB LCM (optional)
2 x hot pluggable/redundant fan modules
Operating temperature : 0 to 40°C
Shipping temperature : -10°C to 50°C
Operating relative humidity : 20% to 80% non-condensing
Non-operating relative humidity : 10% to 90%
System : 3 years
Battery backup module : 1 year ; Super capacitor module : 1 year
