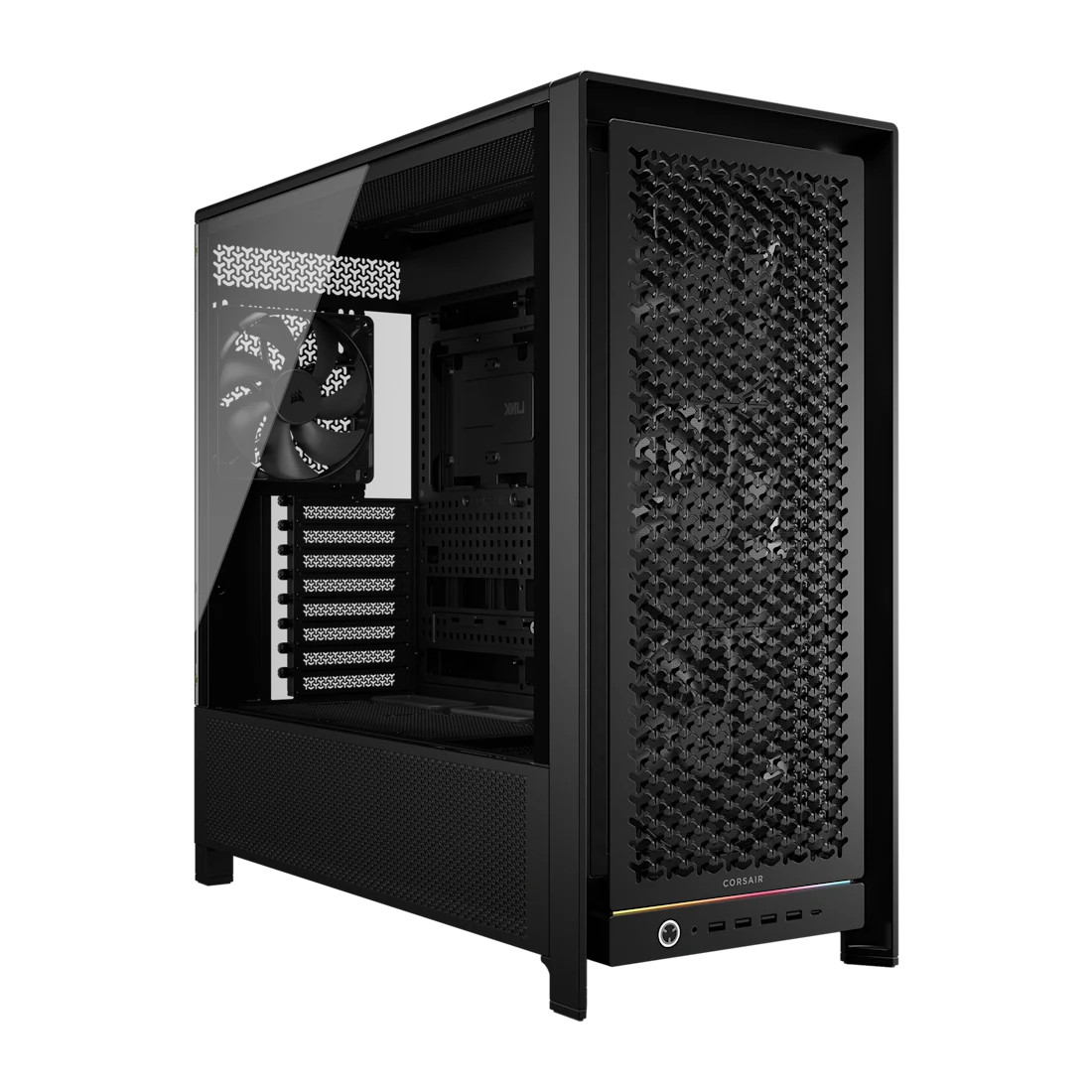

Corsair Frame 5000D Rs High-Airflow Mid-Tower Pc Case
The CORSAIR FRAME 5000D RS is a modular and spacious mid-tower PC case featuring InfiniRail Fan Mounting System, RapidRoute 2.0 cable management, and is compatible with reverse connector motherboards.
Includes
- Fully-modular design for next-level customization
- 4x RS140 Fans with daisy-chain connections
- InfiniRail Fan Mounting System for easier building
- Triple 360mm radiator support
- GPU anti-sag stabilization arm
- Compatible with reverse connector motherboards
- RapidRoute 2.0 pegboard motherboard tray and cable looms
Specifications
| Case Supported | Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm) |
|---|---|
| Case Height | 542 |
| Case Length | 556 |
| Case Width | 250 |
| Material | Steel, Tempered Glass, 3D-Y Airflow Steel, Plastic |
| Color | BLACK, WHITE |
| Case Size | Mid-Tower |
| Case Window | Tempered Glass |
| Internal 3.5" Drive Bays | 2 |
| Internal 2.5" Drive Bays | 6 |
| Maximum CPU Cooler Height | 175mm |
| Case Front IO | (1x) USB 3.2 Gen 2 Type-C, (4x) USB 3.2 Gen 1 Type-A, (1x) Audio in/out |
| Maximum GPU Length | 450mm |
| Weight | 15.48 |
| Case Expansion Slots | 8 Horizontal or 3 Vertical |
| Case Power Supply | ATX |
| Radiator Support - Top | 420mm, 360mm, 280mm, 240mm |
| Radiator Support - Front | 360mm, 280mm, 240mm |
| Radiator Support - Bottom | None |
|---|---|
| Radiator Support - Side | 360mm, 280mm, 240mm |
| Radiator Support - Rear | 140mm, 120mm |
| Fan Support - Top | 3x 120mm, 3x 140mm |
| Fan Support - Front | 3x 120mm, 3x 140mm, 2x 200mm |
| Fan Support - Bottom | 4x 120mm |
| Fan Support - Side | 3x 120mm, 3x 140mm |
| Fan Support - Rear | 1x 140mm, 1x 120mm |
| Front IO Motherboard Connections | 1x HD Audio, 1x USB 3.2 Gen1, 1x USB-3.2 Gen2 Type-E, 1x F_PANEL, 1x 5V ARGB |
| Reverse Connector Motherboard Support | Yes |
| Included Fans | RS Series |
| Dust Filtration | Yes |
| Cable Routing Space | 42mm |
| RapidRoute Included | Yes |
| Left Side Panel | Tempered Glass |
| Right Side Panel | Steel |
| Vertical Mount Support | Supported (Riser Card Sold Separately) |
