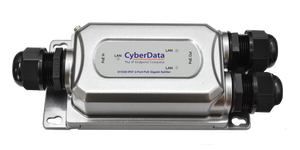

Cyberdata 2-Port IP67 802.3bt to 802.3at PoE Gigabit Switch - 011539
The CyberData industrial IP67 rated Gigabit switch supports a PoE 802.3bt Type 4 (90W) input with two 802.3at (29.5W) outputs. This product can be used to split a single PoE network cable into two separate 802.3at PoE drops for devices in an outdoor or hazardous environment. Ideal for large installations, the device can support data transmission and PoE power supply up to 100m from the switch output ports.
In one outdoor example configuration, one of the Gigabit output ports can drive an 802.3at security camera and the other Gigabit port can be connected to a CyberData SIP IP66 Outdoor Horn. Please contact our Design Services department if you have questions about your devices and power requirements
The unit is complete and no external power supplies would be required.
Features
- Fully compliant to IEEE 802.3af/at/bt standard
- 1 Power Device (PD) input port 802.3bt Type 4 and Type 3, or 802.3at
- 2 Power Source Equipment (PSE) output ports 802.3at
- Power and data carried over the same cable up to 100m from PSE
- All ports are 10/100/1000Mbps (10BASE-T,100BASE-TX,1000BASE-T) auto sensing based upon the port's individual connection
- Each port has auto MDI-X
- 802.11q VLAN tagging
- Automatic address learning, address aging and address migration
- Supports 9216-byte jumbo frame length
Specifications
| Ethernet I/F | 10/100/1000 Mbps, Auto MDI-X, RJ45 |
| Power Distribution | |
| Input: | Corresponding Output: |
|
each 802.3at output port supports up to 29.5W |
|
802.3at output port 1 supports 29.5W and 802.3at output port 2 supports 25W |
|
each 802.3at output port supports 10W |
| IP Rating | IP67 |
| Impact Rating | IK10 |
| Operating Range | Temperature: -20 degrees C to 60 degrees C (-4 degrees F to 140 degrees F) Humidity: 10-90%, non-condensing |
| Storage Temperature | -40 degrees C to 80 degrees C (-40 degrees F to 176 degrees F) |
| Storage Altitude | Up to 15,000 ft. (4573 m) |
| Dimensions | Length: 6.69 inches [169.8 mm] (with cable glands) Length: 5.93 inches [150.5 mm] (base plate) Width: 2.87 inches [72.9 mm] Height: 1.72 inches [43.8 mm] |
| Weight Boxed Weight |
0.85 lbs. [0.39 kg] 1.37 lbs. [.62 kg] |
| Compliance | CE: EMC Directive - Class A EN 55032, EN 55035 & EN 61000, Safety Directive 2001/95/EC; CISPR 32; FCC Part 15 Subpart B; ICES 003; RoHS Compliant |
| Warranty | 2 years limited |
