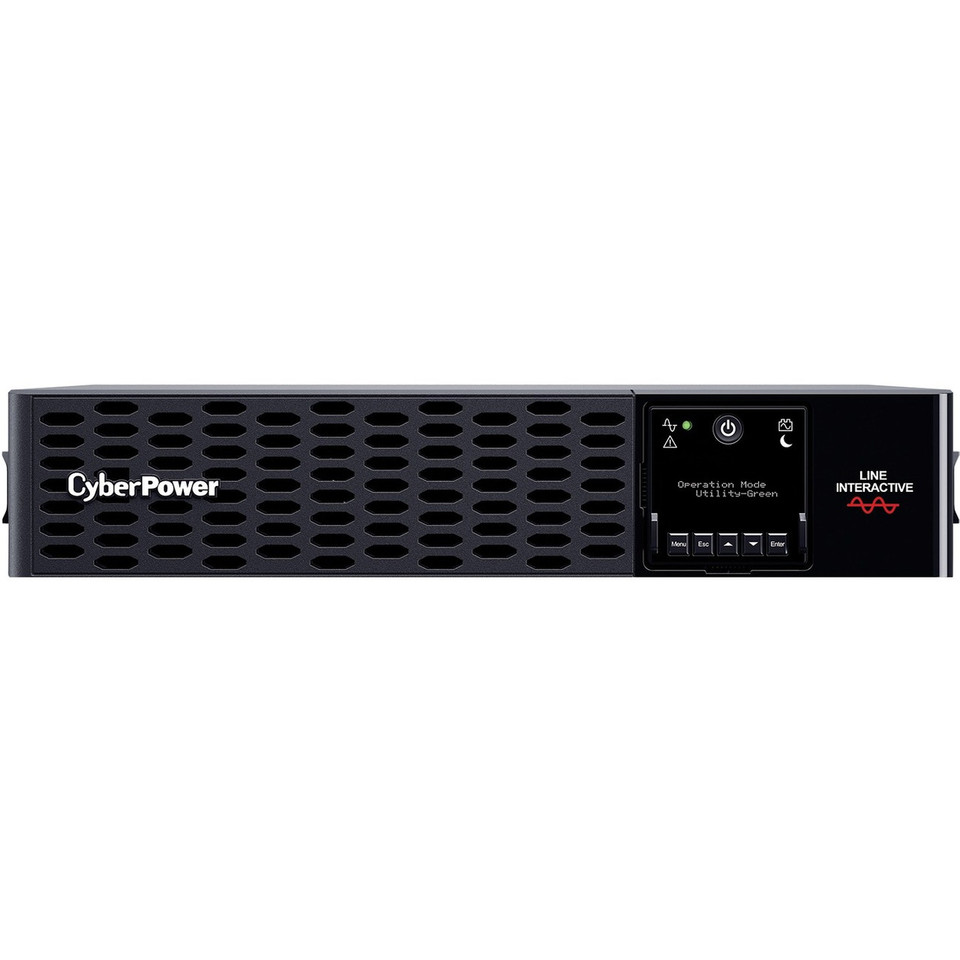

CyberPower PR2200RT2UN New Smart App Sinewave UPS Systems - 2200VA/2200W, 120 VAC, NEMA L5-30P, 2U, Rack / Tower, Sine Wave, 8 Outlets, LCD, PowerPanel® Business, $400000 CEG, 3YR Warranty 8XNEMA 5-20R 10FT CORD 3YR WARR
The PR2200RT2UN is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower's Smart App Sinewave series creates a sine wave output devoid of power gaps which could cause unexpected shutdowns of sensitive equipment.
The Smart App Sinewave PR2200RT2UN improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR2200RT2UN also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.
This model includes pre-installed RMCARD205 network management card for remote management and control via a standard web browser or network management system.
With a $400,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to the quality of the PR2200RT2UN.
- Capacity: 2200 VA / 2200 W
- Topology: Line Interactive
- Waveform: Sine Wave
- Output: 100-120 VAC ± 5%
- Plug type & cord: NEMA L5-30P, 10 ft. cord
- Outlet types: 8 × NEMA 5-20R
- Communication: USB, Serial, SNMP, Relay, EPO
- Management software: PowerPanel® Business
- Remote management: Yes, pre-installed RMCARD205
- Warranty: 3 year
Controls/Indicators
| Status Indicators | LED Indicators:
- Power on
- Line mode
- Battery mode
- Fault
- Night mode
- Wiring Fault
|
Interfaces/Ports
| Serial Port | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
Warranty
| Limited Warranty | 3 Year |
| Directly Connected Equipment Guarantee | $400000Lifetime |
| $400000Lifetime |
Environmental Conditions
| Sound Emission | 52.5 dB(A) |
| Thermal Dissipation | 34 W |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 10000 ft |
| Maximum Storage Elevation | 50000 ft |
Management
| Network Management | SNMP/HTTP Remote Monitoring |
| Alarm | Battery Mode |
| Low Battery |
| Over Charge |
| Overheat |
| Overload |
Miscellaneous
| Additional Information | - Management software: PowerPanel® Business Edition
- Active PFC Compatible: Yes
- Extended Battery Option: No
- Circuit Breaker: 30A
- Automatic Voltage Regulation: Double boost, single buck
- Overload Protection: Internal Circuitry Limiting, Circuit Breaker
- Rated Power Factor: 1
- Dry Contacts: Yes
- Enclosure Construction: Metal
- Replacement Battery Cartridge Quantity: 1
- Adjustable Voltage Range: 70 - 155 Vac
- Plug Style: Straight, Twist Lock
- Overload Protection: Internal Circuitry Limiting, Circuit Breaker
- Management Cable: USB Cable, EPO Cable
- Multifunction LCD Panel: 47 Settings (27 setup and control items + 20 status updates and log menus)
- Operating Relative Humidity: 0 - 95% (non-condensing)
- Operating Temperature: 32 °F to 104°F (0°C to 40°C)
|
| Certifications & Standards | |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Certification | GreenPower UPS |
| RoHS |
| Energy Star | Yes |
Power Description
| Input Voltage | 120 V AC |
| Output Voltage | 110 V AC |
| 100 V AC |
| 120 V AC |
| Surge Energy Rating | 2430 J |
| Waveform Type | Sine Wave |
| Input Voltage Range | 75 V AC - 149 V AC |
| 75 V AC - 149 V AC |
| Output Frequency | 60 Hz |
| 60 Hz |
| Input Frequency | 63 Hz |
| 63 Hz |
Physical Characteristics
| Weight (Approximate) | 59.80 lb |
| Color | Black |
| Form Factor | Rack/Tower |
| Rack Height | 2U |
| Height | 3.4" |
| Width | 17.1" |
| Depth | 16.2" |
General Information
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | PR2200RT2UN |
| Manufacturer Website Address | http://www.cyberpowersystems.com |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | PR2200RT2UN |
| Product Name | Smart App Sinewave PR2200RT2UN 2.2KVA Tower/Rack Convertible UPS |
| Brand Name | CyberPower |
| Product Condition | New |
Battery Information
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Number of Batteries | 4 |
| Backup/Run Time (Half Load) | 11.80 Minute |
| Backup/Run Time (Full Load) | 3.20 Minute |
| Battery Characteristics | Sealed |
| Replaceable Battery | Yes |
| DC System Voltage | 12 V DC |
| Typical Battery Recharge Time | 3 Hour |
Technical Information
| Dataline Protection | RJ-45 |
| Overload Protection | Yes |
| Plug/Connector Type | NEMA L5-30P |
| Receptacle Type | NEMA 5-20R |
| EMI/RFI Noise Filter | Yes |
| AVR | Yes |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| Number of Battery & Surge Outlets | 8 |
| Number of Critical Load Outlets | 4 |
| Transfer Time | 4 ms |
| Receptacle Detail | 8 x NEMA 5-20R |
