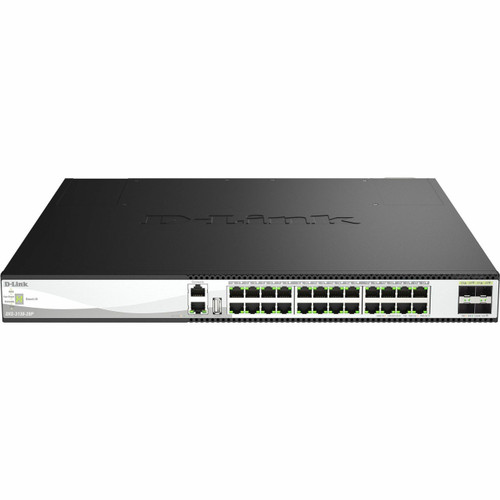

The DMS-3130 Series is a range of Layer 3 Stackable Multi-Gigabit Managed Switches designed to connect end-users in a secure enterprise or metro Ethernet access network. These switches support both multicasting and enhanced security, making them an ideal multi-Gigabit access layer solution. Each model boasts two 10GBASE-T ports and four 10G/25G SFP28 ports to provide versatility and speed.
Future-Proof Power over Ethernet Support
The DMS-3130-30PS provides sixteen 2.5G ports supporting 802.3af/at PoE and eight 5G ports supporting 60W 802.3bt PoE standards with a power budget of 740 watts expandable to 960 watts with dual power supplies. Multi-Gigabit PoE with up to 60W of power per port is ideal for Wi-Fi 6/6E access points, smart lighting or industrial automation equipment. Perpetual PoE and Fast PoE support delivers faster and uninterrupted power to connected devices even when the switch is booting.
- Multi-Gigabit 2.5G/5G/10G/25G support
- 2.5GBASE-T PoE+ and 5GBASE-T PoE++ support
- Four 25G SFP28 uplink ports
- Redundant power supply (RPS) support
- Two hot-swappable power modules for 1+1 power redundancy and load sharing for DMS3130-30PS
- DMS-3130-30TS can also be powered through the RJ45 PD MGMT port
- Ethernet Ring Protection Switching (ERPS)
- Embedded 6 kV surge protection on all 2.5G/5G Ethernet access ports
- Loopback Detection (LBD)
- Physical stack of up to 9 units
- Supports long-distance stacking over fibre
- 200 Gbps per device physical stacking bandwidth
- Static Route
- RIP/RIPng
- OSPFv2/v3
