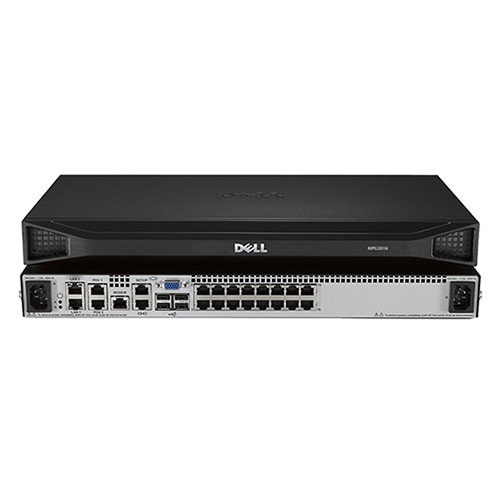

Dell 16-port Digital KVM Switch - 2 IP users - TAA Compliant - DMPU2016-G01

Dell 16-port Digital KVM Switch - 2 IP users - TAA Compliant - DMPU2016-G01

£2,463.00

From a single central console, the Dell  Digital KVM Switch, engineered by Avocent, provides out-of-band access to devices in the rack even when the network is down or when the device OS crashes. Unlike software alternatives, digital KVMs are uniquely capable of bringing a new server up from bare metal, diagnosing and restoring a failing device, updating firmware or enabling BIOS-level access, and patching a device independent of the state of the managed device or network.

The Digital Switches give users the ability to securely access manage traditional servers remotely via their keyboard, video and mouse ports as well as the ability to manage these servers, and other devices like storage heads or network Switches, regardless of whether the server or network is up and running. Devices are accessed either via a modem connection or over a TCP/IP network. These connections support DES, 3DES, AES or 128-bit SSL encryption of both KVM and Virtual Media sessions.

  • Advanced remote management
  • Meet service level agreements and minimize downtime
  • Virtual media
  • CAC/Smart card support
  • Enhanced serial adapters
  • Power device port

Tech Specs

General
Device Type
KVM Switch - 16 ports - managed
Enclosure Type
Rack-mountable
Ports
16 x KVM port(s)
KVM Local Users Qty
1 local user
KVM IP Users Qty
2 IP users
Keyboard / Mouse Interface
USB
Remote Management Protocol
Telnet, SSH
Encryption Algorithm
DES, Triple DES, AES, SSL, 128-bit SSL
Authentication Method
LDAP, Active Directory
Max Resolution
1600 x 1200
Features
128-bit encryption, LDAP support, firmware upgradable, Virtual Media support, SSH support, Common Access Card (CAC) reader support, Smart Card reader support, server connection via twisted pair

Expansion / Connectivity
Interfaces
  • 1 x VGA HD-15
  • 1 x keyboard (USB) Type A
  • 1 x mouse (USB) Type A
  • 1 x management RJ-45
  • 1 x USB Type A

Power
Power Device
Internal power supply
Installed Qty
2
Voltage Required
AC 120/230 V
Power Consumption Operational
18 Watt

Miscellaneous
Rack Mounting Kit
Included
Compliant Standards
FIPS 140-2
TAA Compliant
Yes

Dimensions & Weight
Width
17 in
Depth
9.2 in
Height
1.7 in
Weight
8.6 lbs

Environmental Parameters
Min Operating Temperature
32 °F
Max Operating Temperature
104 °F
Humidity Range Operating
20 - 80% (non-condensing)
Humidity Range Storage
5 - 95%
