- Primary Information

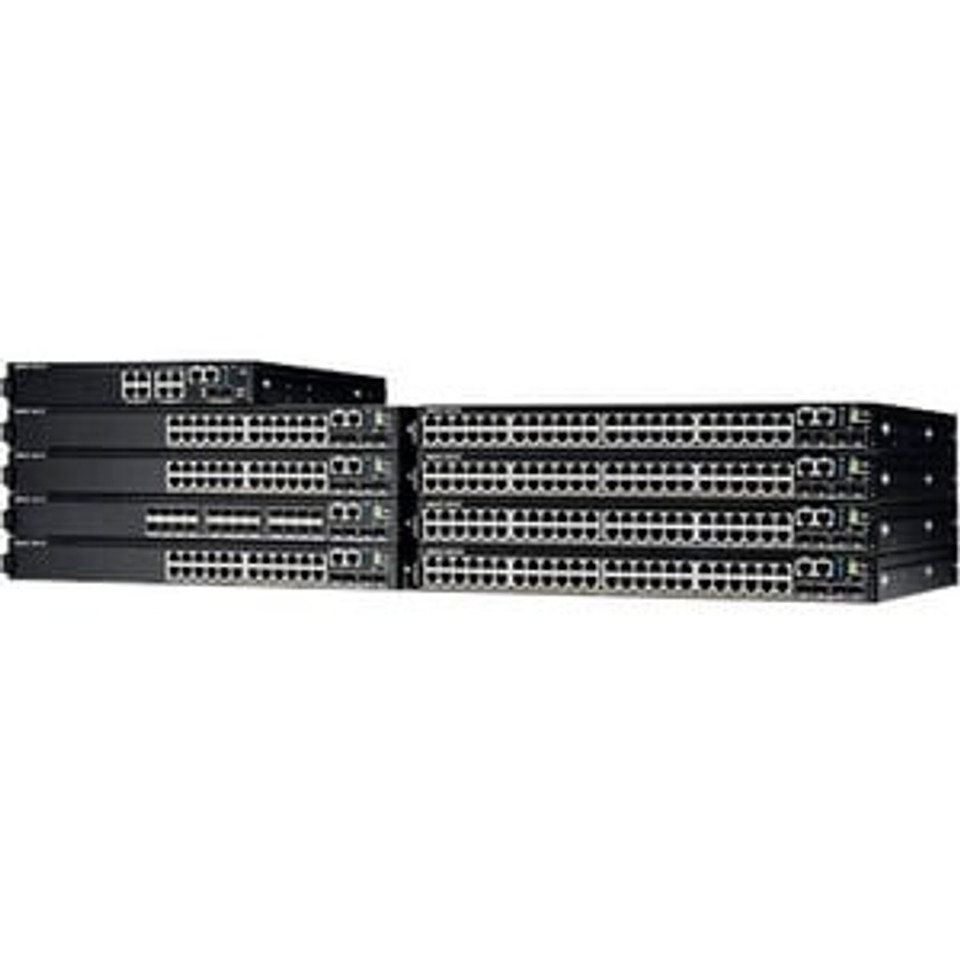

Product Description: Dell PowerSwitch N3248P-ONF - switch - 48 ports - managed - rack-mountable Device Type: Switch - 48 ports - L3 - managed - stackable Enclosure Type: Front to back airflow rack-mountable 1U Subtype: Gigabit Ethernet Ports: 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ + 2 x 100 Gigabit QSFP28 Power Over Ethernet (PoE): PoE+ Performance: Switching capacity: 576 Gbps ¦ Forwarding rate: 800 Mpps Capacity: IPv4 routes (static): 1024 ¦ IPv6 routes (static): 1024 ¦ IPv4 routes (dynamic): 8160 ¦ IPv6 routes (dynamic): 4096 ¦ Maximum member ports per LAG: 8 ¦ Maximum dynamic ports per switch stack: 144 ¦ LAG groups: 128 ¦ OSPF routes: 8158 ¦ RIP routes: 512 ¦ ECMP next hops per route: 16 ¦ ECMP groups: 1024 ¦ VLAN routing interfaces: 128 ¦ VLANs supported: 4094 ¦ Multicast entries (IPv4): 1023 ¦ Multicast entries (IPv6): 1021 ¦ ARP entries: 6144 ¦ NDP entries: 2560 ¦ ACL: 100 ¦ Maximum rules per ACL: 1023 ¦ Max ACL rules system-wide: 3914 ¦ Maximum ACL rules per interface (IPv4) egress rules: 511 ¦ Maximum ACL rules per interface (IPv4) ingress rules: 1023 ¦ Maximum ACL rules per interface (IPv6) egress rules: 506 ¦ Maximum ACL rules per interface (IPv6) ingress rules: 1021 ¦ Maximum VLAN interfaces with ACLs applied: 24 MAC Address Table Size: 32K entries Routing Protocol: OSPF, RIP, RIP-2, IGMPv2, IGMP, OSPFv2, IGMPv3, OSPFv3, IPv4-to-IPv6 Multicast Remote Management Protocol: SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, TFTP, SSH-2 Features: Flow control, MDI/MDI-X switch, auto-negotiation, ARP support, VLAN support, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), STP Root Guard, IPv4 support, LLDP support, Link Aggregation Control Protocol (LACP), Energy Efficient Ethernet, Management Information Base (MIB), Dynamic VLAN Support (GVRP), dual firmware images, Network Access Control (NAC), Neighbor Discovery Protocol (NDP), tagged VLAN, redundant fans, Protocol-based VLANs support Compliant Standards: IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.3ax Power Redundancy: Optional Dimensions (WxDxH): 17.1 in x 15.7 in x 1.7 in Weight: 16.69 lbs Manufacturer Warranty: Limited lifetime warranty - General
Device Type: Switch - 48 ports - L3 - managed - stackable Enclosure Type: Front to back airflow rack-mountable 1U Subtype: Gigabit Ethernet Ports: 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ + 2 x 100 Gigabit QSFP28 Power Over Ethernet (PoE): PoE+ Performance: Switching capacity: 576 Gbps ¦ Forwarding rate: 800 Mpps Capacity: IPv4 routes (static): 1024 ¦ IPv6 routes (static): 1024 ¦ IPv4 routes (dynamic): 8160 ¦ IPv6 routes (dynamic): 4096 ¦ Maximum member ports per LAG: 8 ¦ Maximum dynamic ports per switch stack: 144 ¦ LAG groups: 128 ¦ OSPF routes: 8158 ¦ RIP routes: 512 ¦ ECMP next hops per route: 16 ¦ ECMP groups: 1024 ¦ VLAN routing interfaces: 128 ¦ VLANs supported: 4094 ¦ Multicast entries (IPv4): 1023 ¦ Multicast entries (IPv6): 1021 ¦ ARP entries: 6144 ¦ NDP entries: 2560 ¦ ACL: 100 ¦ Maximum rules per ACL: 1023 ¦ Max ACL rules system-wide: 3914 ¦ Maximum ACL rules per interface (IPv4) egress rules: 511 ¦ Maximum ACL rules per interface (IPv4) ingress rules: 1023 ¦ Maximum ACL rules per interface (IPv6) egress rules: 506 ¦ Maximum ACL rules per interface (IPv6) ingress rules: 1021 ¦ Maximum VLAN interfaces with ACLs applied: 24 MAC Address Table Size: 32K entries Routing Protocol: OSPF, RIP, RIP-2, IGMPv2, IGMP, OSPFv2, IGMPv3, OSPFv3, IPv4-to-IPv6 Multicast Remote Management Protocol: SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, TFTP, SSH-2 Encryption Algorithm: MD5, AES, SSL, TLS Authentication Method: RADIUS, TACACS+, Secure Shell v.2 (SSH2) Features: Flow control, MDI/MDI-X switch, auto-negotiation, ARP support, VLAN support, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), STP Root Guard, IPv4 support, LLDP support, Link Aggregation Control Protocol (LACP), Energy Efficient Ethernet, Management Information Base (MIB), Dynamic VLAN Support (GVRP), dual firmware images, Network Access Control (NAC), Neighbor Discovery Protocol (NDP), tagged VLAN, redundant fans, Protocol-based VLANs support Compliant Standards: IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.3ax RAM: 4 GB Flash Memory: 8 GB - Expansion / Connectivity
Interfaces: 48 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W ¦ 4 x 10Gbit LAN SFP+ ¦ 1 x 10/100/1000 Base-T RJ-45 management ¦ 2 x 100Gbit LAN QSFP28 stacking ¦ 1 x USB Type A ¦ 1 x micro-USB 2.0 Type B console ¦ 1 x serial (RS-232) RJ-45 console - Power
Power Device: Internal power supply - hot-plug Installed Qty: 1 Max Supported Qty: 2 Power Redundancy: Optional Power Redundancy Scheme: 1+1 (with optional power supply) Power Provided: 1050 Watt Power Consumption Operational: 1677 Watt 80 PLUS Certification: 80 PLUS Platinum - Miscellaneous
Rack Mounting Kit: Included Compliant Standards: FCC Class A certified, UL, cUL, GS, RoHS, WEEE, REACH, ICES Class A, NRTL, VCCI Class A, EAC, CCC Class A, FDA 21CFR1040.10, ACMA, FDA 21CFR1040.11 - Software / System Requirements
Software Included: Dell EMC OS6 - Dimensions & Weight
Width: 17.1 in Depth: 15.7 in Height: 1.7 in Weight: 16.69 lbs - Manufacturer Warranty
Service & Support: Limited warranty - lifetime - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 113 °F Humidity Range Operating: 95% Min Storage Temperature: -40 °F Max Storage Temperature: 158 °F Humidity Range Storage: 95% - UNSPSC Code
UNSPSC Code: 43222612
