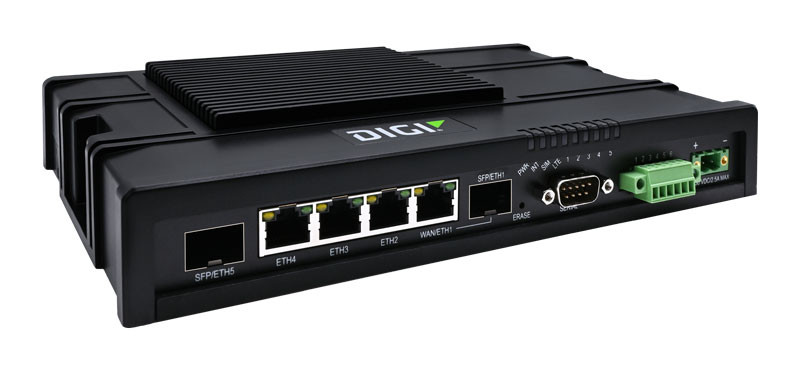

Digi IX40 - 4G LTE-Advanced Pro Cat 12 with 3G fallback, quad Ethernet, RS-232/422/485, GNSS, FirstNet Capable

Digi IX40

5G edge computing industrial IoT cellular router solution, purpose-built for Industry 4.0

• Cellular / WWAN connectivity:
  • 4G LTE-Advanced Pro Cat 12, 3G HSPA+
    • 4G LTE-Advanced Pro bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14 FirstNet®, B17, B18, B19, B20, B25, B26, B28, B29, B30, B38, B39, B40, B41, B42, B43, B48, B66, B7
    • 3G bands: B1, B2, B4, B5, B6, B8, B9, B19
  • Connectors: (2) or (4) 50 Ω SMA; center pin: female
  • SIM slots: (2) Nano-SIM (4FF)
  • SIM security: SIM slot cover plate included
• GNSS:
  • GPS Gen 9 with band L1 LNA for passive antenna use
  • Upper L-band: GPS L1; Glonass G1; Beidou B1; Galileo E1
  • Supports passive GNSS antennas rated at 1.5 to 3 dBi only
  • NMEA 4.11 and TAIP
  • (1) 50 Ω SMA; center pin: female
• Ethernet:
  • (4) RJ-45; 10/100/1000 Mbps Base-T (auto-sensing); IEEE 802.3; configurable as WAN or LAN
• I/O:
  • (2) Digital input/outputs; (2) analog inputs (0 - 10 V; 4 - 20 mA; 12-bit resolution)
• SFP:
  • (2) 1 Gb capable SFP sockets
• Serial:
  • (1) RS-232/422/485; DB-9 male (DTE)
• Software and management:
  • Remote management: Digi Remote Manager, SNMP v1/v2c/v3 (user installed/managed), SMS
  • Local management: Web UI (HTTPS); CLI (SSH, serial)
  • Management tools: SFTP, SCP; protocol analyzer with PCAP for Wireshark; event logging with Syslog
• Processor:
  • ​1.6 GHz quad-core i.MX 8M Plus ARM Cortex-A53 processor
• Memory:
  • ​1 GB RAM / 8 GB flash
• Physical:
  • ​Dimensions (L x W x H): 234 mm x 154 mm x 41 mm (8.82 in x 6.22 in x 1.61 in)
  • Weight: 1.14 kg (2.51 lb)
  • Status LEDs: Power, WWAN, Ethernet (link, activity)
  • Enclosure/Rating: Glass-filled polyphenylene sulphide / IP30 −40 °C to 85 °C (−40 °F to 185 °F)
• Power requirements:
  • Power input: 9 to 30 VDC
  • Power connector: Screw down removable terminal block
  • Power consumption: 4.5 W (light traffic), 8 W (peak data), 3.5 W (idle traffic)
• Environmental:
  • Operating temperature: −30 °C to 70 °C (−22 °F to 158 °F)
  • Storage temperature: −45 ° C to 85° C (−49 °F to 185 ° F)
  • Relative humidity: 0% to 95% (non-condensing) at 25 °C (77 ° F)
• Approvals:
  • ​Cellular PTCRB, AT&T, FirstNet Capable, T-Mobile;
  • Safety: IEC 62368-1, CB scheme
  • Emissions / Immunity: FCC Part 15 Subpart B, ISED, CE, RED, UKCA
• Product warranty: 3-year
• Available accessories: Accessories not included; view available accessories
  • Digi IX40 LTE Industrial Starter Kit — includes 30 W power supply and 2 wideband cellular antennas: 76002148 (recommended)
  • Antenna — 5G/LTE 600 MHz to 6 GHz, swivel, black: 76002114 (recommended / optional)
  • Magnetic GNSS antenna base — SMA, 1 m, RG174: 76000954 (recommended / optional)
  • DIN rail mounting bracket kit: 76003093 (recommended / optional)

What's in the box

• Digi IX40 — 4G LTE-Advanced Pro Cat 12 with 3G fallback, quad Ethernet, RS-232/422/485, GNSS, FirstNet Capable
