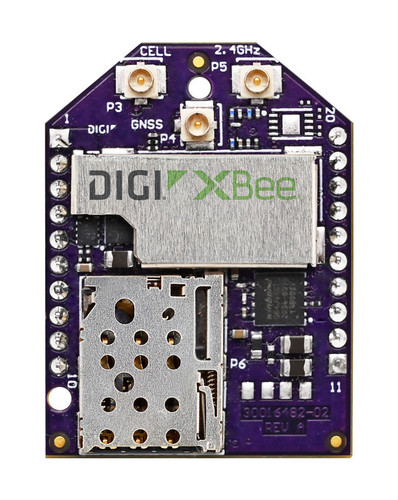

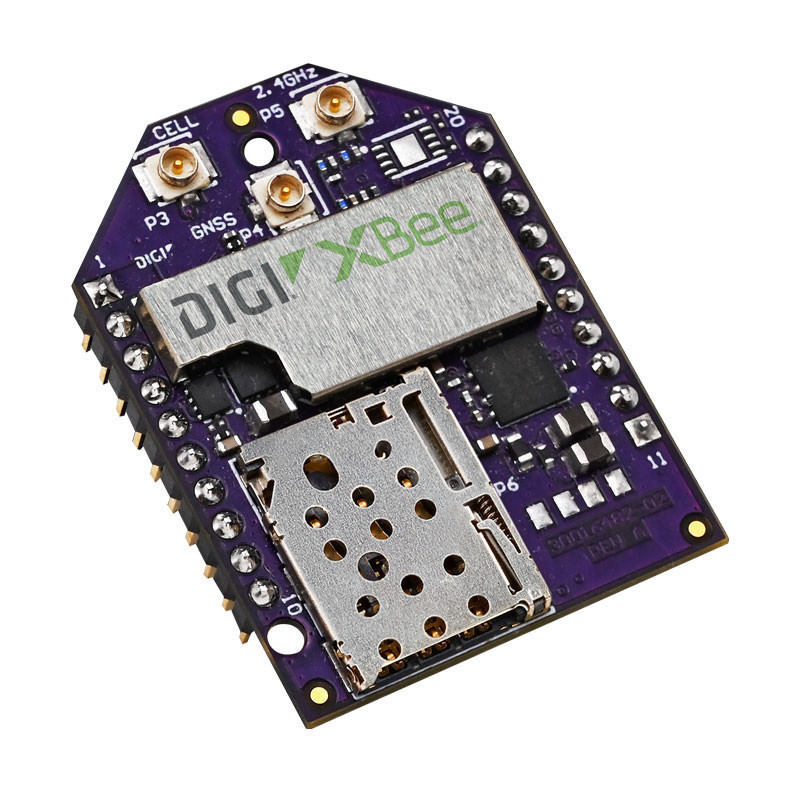

Digi XBee 3 Low-Power LTE-M/NB-IoT, GNSS, AT&T SIM
Digi XBee 3 Low-Power LTE-M/NB-IoT, GNSS, AT&T SIM
- Hardware
- Cellular Chipset: Telit ME310-W1
- Form factor (connector footprint): Digi XBee 20-pin through-hole
- Antenna options: 1 U.FL cellular, 1 U.FL Bluetooth, 1 U.FL GNSS
- Dimensions: 24.38 mm x 32.94 mm (0.96 in x 1.3 in)
- Operating temperature: -40 ºC to 85 ºC (-40 ºF to 185 ºF)
- SIM size: 4FF Nano
- Interface and I/O
- Data interface: UART, SPI, USB
- Operating modes (LTE-M): Transparent and API over serial, PPP over USB
- Operating modes (NB-IoT): Transparent, API, UDP
- Security: Digi TrustFence security with secure boot and protected JTAG
- Configuration tools: Digi XBee Studio (local), Digi Remote Manager (OTA)
- Embedded programmability: MicroPython with 1024 kB flash / 64 kB RAM
- I/O: 4 ADC lines (10-bit), 13 digital I/O, USB, I2C
- Bluetooth: Bluetooth Low Energy (BLE)
- Cellular characteristics
- Transmit power: Up to 23 dBm (LTE-M/NB-IoT)
- Receive sensitivity (LTE-M): -105 dBm
- Receive sensitivity (NB-IoT): -113 dBm
- Supported bands: Bands B1, B2, B3, B4, B5, B8, B12, B13, B18, B19, B20, B25, B26, B27, B28, B66, B71, B85
- Downlink / uplink speeds (LTE-M): Up to 588 kbps downilnk, up to 1 Mbps uplink
- Downlink / uplink speeds (NB-IoT): Up to 120 kbps downlink, up to 160 kbps uplink
- Duplex mode: Half-duplex
- Power requirements (at 3.3 VDC input power)
- Supply voltage: 3.3 to 4.3 VDC
- Peak transmit current: 550 mA with Bluetooth disabled; 610 mA with Bluetooth enabled
- Avg transmit current (LTE-M): 450 mA peak, 200 mA average (GM1 modules)
- Avg transmit current (NB-IoT): 400 mA peak, 270 mA average (GM1 modules)
- Idle: 200 mA peak, 100 mA average
- Power save mode: 20 μA
- Deep sleep: 2.65 μA
- Regulatory and carrier approvals
- FCC (USA): MCQ-XB3M2
- ISED (Canada): 1846A-XB3M2
- CE / RED (Europe): Complete
- UKCA (United Kingdom): Complete
- Japan: Pending
- Brazil: Pending
- Mexico (NOM): Pending
- PTCRB, AT&T and Verizon: Complete
- Warranty
- 1-year
