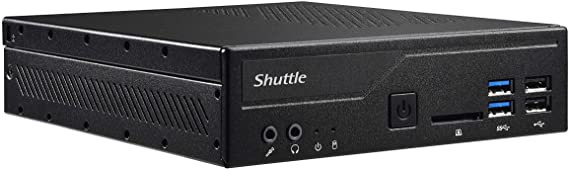

The DS77U series is a fanless ultra-slim PC powered by 7th generation of Intel Celeron dual-core processor with its powerful graphics engine capable of playing 4K video content. With a slim profile of less than 40 mm and the international VESA mounting standards, this series allows users to decide the most appropriate back placement configuration depending on different environments. The DS77U series is highly connectable with USB3.0/USB2.0, two COM ports (RS232, RS232/422/485), and dual Intel Gigabit LAN ports. Compared to previous mainstream models, the DS77U series is the first model to provide two HDMI and one DisplayPort to support up to triple Full HD displays. The DS77U series, designed for support both 12 Volts and 19 Volts inputs, is an industry-grad signage platform for use in commercial applications which require long-term operation such as automotive, digital signage, kiosk and more.

• Primary Information

  System Type:	Personal Computer
  Cabinet Form Factor:	Ultra-slim Desktop
  Processor / Type:	Core i5
  Processor / Clock Speed:	2.5 GHz
  Processor / Number:	7200U
  RAM / Total Installed Size:	16 GB
  Hard Drive Capacity / SSD:	500 GB
  Service & Support Type:	3 Years Warranty

• Processor

  Processor / Manufacturer:

  Intel

• Memory

  Cache Memory Type:
  RAM / Technology:	DDR4 SODIMM
  RAM / Installed Qty:	2
  RAM / Max Supported Size:	32 GB

• Power

  Power / Device Type:	Power Adapter
  Power / Provided (W):	65 Watt
  Power / Voltage Required:	19V

• Expansion

  Expansion Slots Total (Free):

  (1) M.2 2280 Type M key socket. (1) M.2 2230 Type A,E Key socket.

• Dimensions&Miscellaneous

  Width:	200 Mm
  Depth:	165 Mm
  Height:	39.5 Mm

• Special Feature

  COO:

  CHINA

• UNSPSC Code

  UNSPSC Code:

  43211508
