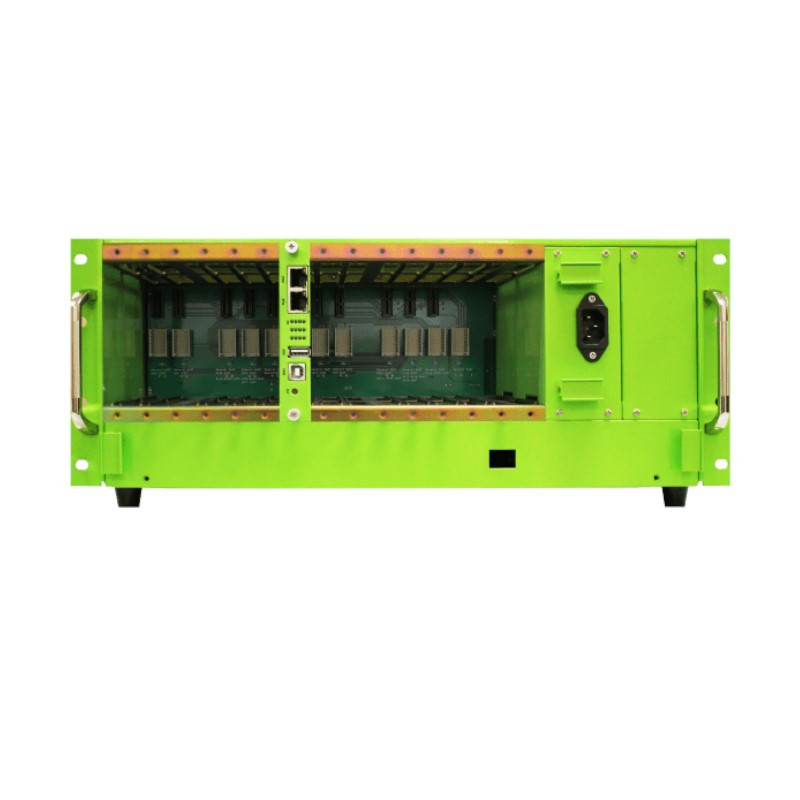

The Galaxy Expand hardware platform is part of the E-MetroTel overall server portfolio. While it can function as a Call Server platform with a variety of Call Processor configuration options for standalone operation, it can also be configured in High Availability (HA) mode with an active/standby pair of call processors across two independent chassis units, as a Survivable Remote Gateway (SRG) system with a single processor, or even as a highly compact, large scale FXO, FXS, PRI, or Digital Station gateway with no Call Processors. The Galaxy Expand Is based on a multi-slot 19 inch wide x 7″ high (4U) x 10.25″ depth chassis. There are a total of 11 slots to support a variety of Server and/or telephony interface cards. In addition, there is a slot for the Switch Fabric card, which is used for in-chassis communication by all the other pluggable cards. All other cards, including server and telephony interfaces cards are optional.
Core Features:
- 11 Slot chassis equipped with:
- Switch Fabric Card
- Galaxy Expand Power Supply (Qty 2)
- Fan Tray with Filters
| Weight | 22 lbs |
|---|---|
| Dimensions | 21 × 13 × 10.2 in |
| Brand | E-MetroTel |
- ETH1 (Backplane) : Type: RJ-45
- 192.168.1.xxx subnet with the 2930 Server Card
- 192.168.11.xxx subnet with the i5 Server Card
- ETH2 (Backplane) : Type: RJ-45
- 192.168.1.xxx subnet with the 2930 Server Card
- 192.168.11.xxx subnet with the i5 Server Card
- USB1: Type: USB 2.0 A
- USB2: Type: USB 2.0 B
