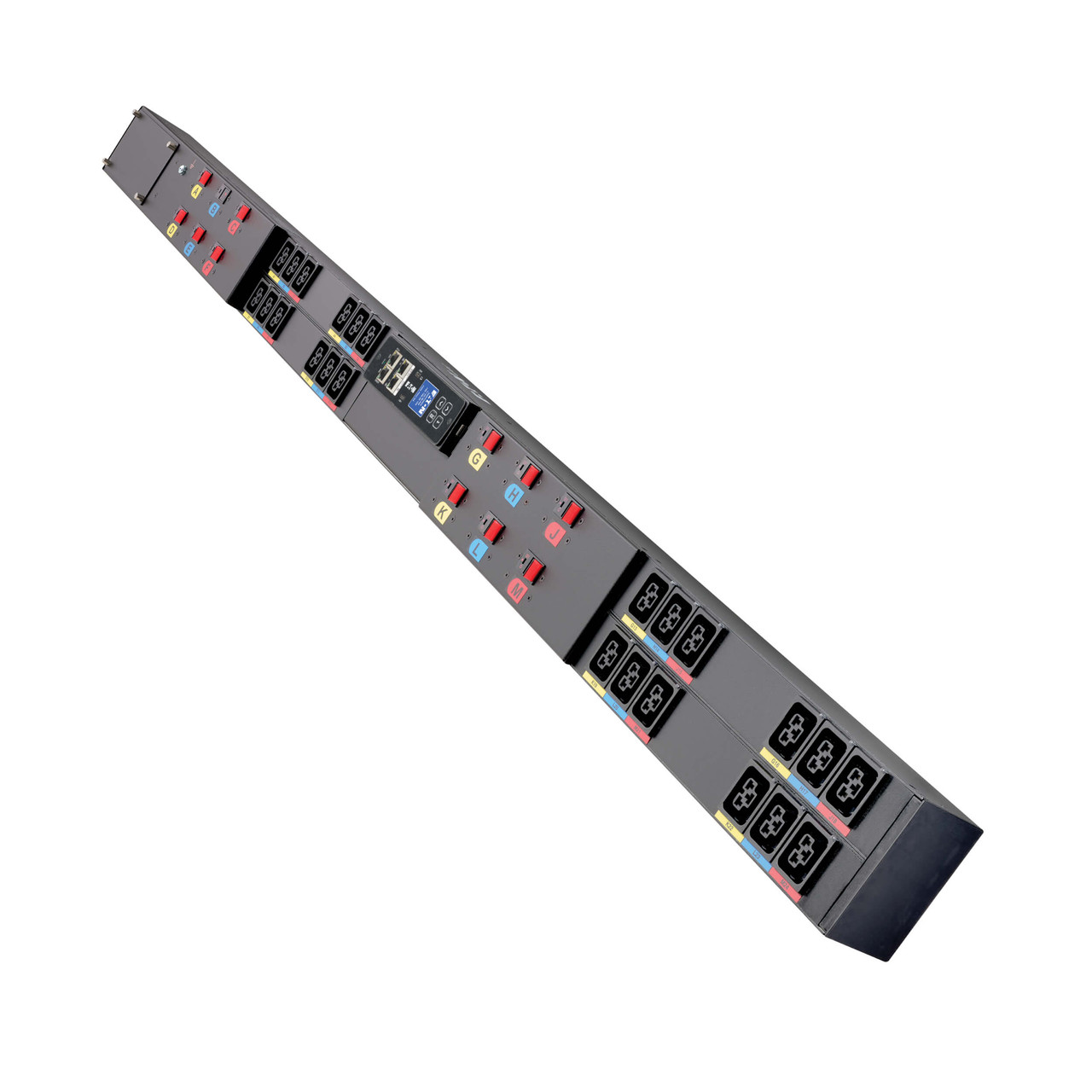

Eaton 3-Phase Managed HDX Rack PDU G4, 240/415V, 24 C39 Outlets, 64A, 46kW, Hardwired Input, 0U Vertical, TAA - EMAGECC4C4C4C4L
Overview
The Eaton 3-Phase Managed HDX Rack PDU G4 (EMAGECC4C4C4C4L) is a high-density, enterprise-class power distribution solution designed to meet the demanding requirements of modern data centers, colocation environments, and edge computing infrastructures. With a capacity of 46kW and 24 C39 outlets, this managed PDU is engineered to support multiple GPU and LPU servers in a single rack, making it ideal for GPU-intensive workloads such as high-performance computing (HPC), supercomputing, generative AI, and high-frequency trading. It combines advanced power management capabilities with robust cybersecurity features, ensuring both reliability and protection for mission-critical operations. The hot-swappable Gigabit Network Module with zero-trust architecture strengthens network security, while outlet-level monitoring and control enhance efficiency and cost savings. Integration with Eaton’s Brightlayer Data Centers suite allows seamless digital management, offering real-time monitoring, reporting, and proactive issue prevention. Designed for scalability and convenience, this vertical 0U unit supports cascading connections, remote management, and easy installation. TAA compliance makes it suitable for federal procurement contracts, adding another layer of versatility to its enterprise-grade design.
Features
- High-Density Power Distribution: 24 C39 outlets supporting up to 46kW total capacity for GPU-intensive racks.
- Cybersecurity Protection: Chain-of-trust encryption, secure firmware boot, zero-trust architecture, and user-configurable firewall.
- Hot-Swappable Network Module: Embedded Gigabit Network Module (GNM) with LCD interface for secure, menu-driven management.
- Remote Outlet Control: Monitor, power cycle, sequence startups, and shed nonessential loads to optimize uptime and efficiency.
- Brightlayer Integration: Seamless compatibility with Eaton’s Brightlayer Data Centers suite for IT and power management.
- Environmental Monitoring: Supports up to three optional probes for temperature, humidity, and device alerts.
- Efficient Deployment: Toolless mounting buttons, evenly distributed circuit breakers, and cascading capability for up to 32 PDUs.
- TAA Compliant: Eligible for GSA Schedule and federal procurement contracts.
Technical Specifications
- Part Number: EMAGECC4C4C4C4L
- PDU Type: Managed, 3-Phase
- Input Voltage: 240/415V (supports 220/380V, 230/400V, 240/415V Wye)
- Input Connection: Hardwire, 64A maximum input current
- Output Capacity: 46.08kW / 64A max per output phase
- Outlets: 24 C39 combo outlets (accepts C14 and C20 connectors)
- Circuit Protection: 12 low-profile 20A 2-pole breakers
- Frequency Compatibility: 50/60 Hz
- Interfaces: Serial, Ethernet (10/100/1000 Mbps), daisy-chainable up to 40 PDUs
- Display: Front-panel LCD with outlet-level readings, alarms, and energy monitoring
- Accuracy: ±1% for current, voltage, and power measurement
- Form Factor: 0U Vertical, aluminum housing, black finish
- Dimensions: 69.45 x 4.09 x 2.48 in.
- Weight: 29.52 lbs.
- Operating Environment: 0° to 60°C; 5–95% RH (non-condensing)
- Compliance: UL Listed, cUL Listed, CE, FCC Part 15 Class A, TAA compliant
- Warranty: 3-year limited warranty
