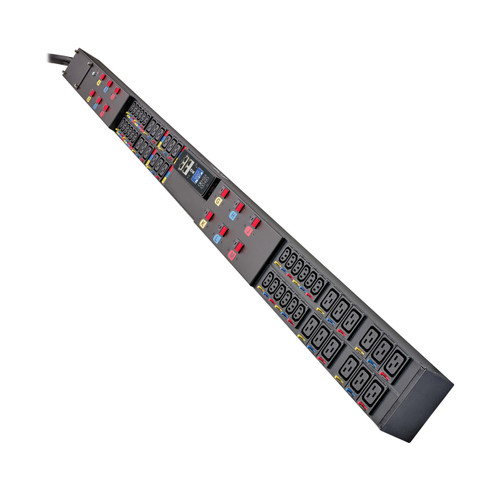

Eaton 3-Phase Managed HDX Rack PDU G4, 240/415V, 36 Outlets (24 C13 + 12 C39), 60A, 35kW, 560P6W Input, 6 ft. Cord, 0U Vertical, TAA - EMAGFFC3C3C3C3L

Overview
The Eaton 3-Phase Managed HDX Rack PDU G4 (EMAGFFC3C3C3C3L) is a high-capacity, enterprise-grade power distribution solution designed for modern data centers, colocation facilities, and distributed IT environments. With 36 outlets (24 C13 and 12 C39), 60A input, and a total output capacity of 35kW, this PDU delivers the flexibility and reliability required to power GPU-intensive applications such as HPC, supercomputing, generative AI, and high-frequency trading.
It incorporates advanced cybersecurity features including chain-of-trust encryption, secure firmware boot, zero-trust architecture, and a user-configurable firewall to safeguard against cyber threats. The hot-swappable Gigabit Network Module with an LCD display provides secure remote monitoring and management, outlet-level control, and zero-touch provisioning, ensuring uninterrupted operation and simplified deployment.
Seamless integration with Eaton’s Brightlayer Data Centers suite allows for proactive performance monitoring, resource management, and trend analysis across distributed IT environments. Its outlet-level monitoring and power cycling capabilities boost operational efficiency, while sequential startup and load-shedding features improve uptime and power usage. With preinstalled toolless mounting, cascading capability for up to 40 PDUs, and compliance with TAA requirements, this PDU provides a resilient and scalable foundation for mission-critical IT infrastructure.

Features

• High-Density Power Distribution: 36 outlets (24 C13 + 12 C39 combo) with 35kW total capacity for diverse rack equipment.
• Cybersecurity Protection: Chain-of-trust encryption, secure firmware boot, zero-trust architecture, and configurable firewall.
• Hot-Swappable Network Module: Gigabit Network Module with LCD for secure monitoring, management, and zero-touch provisioning.
• Brightlayer Integration: Supports DITPM and DCPM software for asset management, reporting, and downtime prevention.
• Remote Outlet Management: Outlet-level monitoring, sequential startups, load shedding, and remote power cycling.
• Flexible Connectivity: C39 combo outlets support both C14 and C20 connectors, reducing the need for multiple PDU types.
• Environmental Monitoring: Compatible with up to three probes (temperature, humidity, dry-contact alerts).
• Simplified Installation: Preinstalled toolless mounting buttons with flush low-profile breakers for cleaner rack setups.
• Scalable Management: Cascade up to 40 PDUs with individual IP addresses for centralized monitoring.
• TAA Compliant: Eligible for GSA Schedule and other federal procurement contracts.

Technical Specifications

• Part Number: EMAGFFC3C3C3C3L
• PDU Type: Managed, 3-Phase
• Input Voltage: 240/415V (supports 220/380V, 230/400V, 240/415V Wye)
• Input Connection: 560P6W, 60A maximum input current
• Input Cord: 6 ft., 560P6W plug type
• Output Capacity: 35kW / 34.56kVA total, 48A max per phase
• Outlets: 24 C13, 12 C39 combo (C14/C20 compatible)
• Circuit Protection: 12 low-profile 20A 2-pole breakers
• Frequency Compatibility: 50/60 Hz
• Interfaces: Serial, Ethernet (10/100/1000 Mbps), cascade up to 40 PDUs
• Display: LCD with outlet-level readings, alarms, energy monitoring, and auto shut-off for energy savings
• Indicators: Green = outlet on; Red = PDU powered but outlet off
• Measurement Accuracy: ±1% for current, voltage, and power
• Material: Aluminum housing, black finish
• Form Factor: 0U Vertical
• Dimensions: 69.45 x 4.09 x 2.48 in.
• Shipping Dimensions: 72.00 x 5.00 x 3.00 in.
• Weight: 29.52 lbs.
• Environmental Conditions: Operating 0° to 60°C; storage -25° to 65°C; 5–95% RH non-condensing
• Altitude: Operating up to 3000 m; storage up to 15240 m
• Compliance: UL Listed, cUL Listed, CE, FCC Part 15 Class A, TAA compliant
• Network Management: Eaton Gigabit Network Module G4, supports SNMP, MQTT, web-based management
• Warranty: 3-year limited warranty
