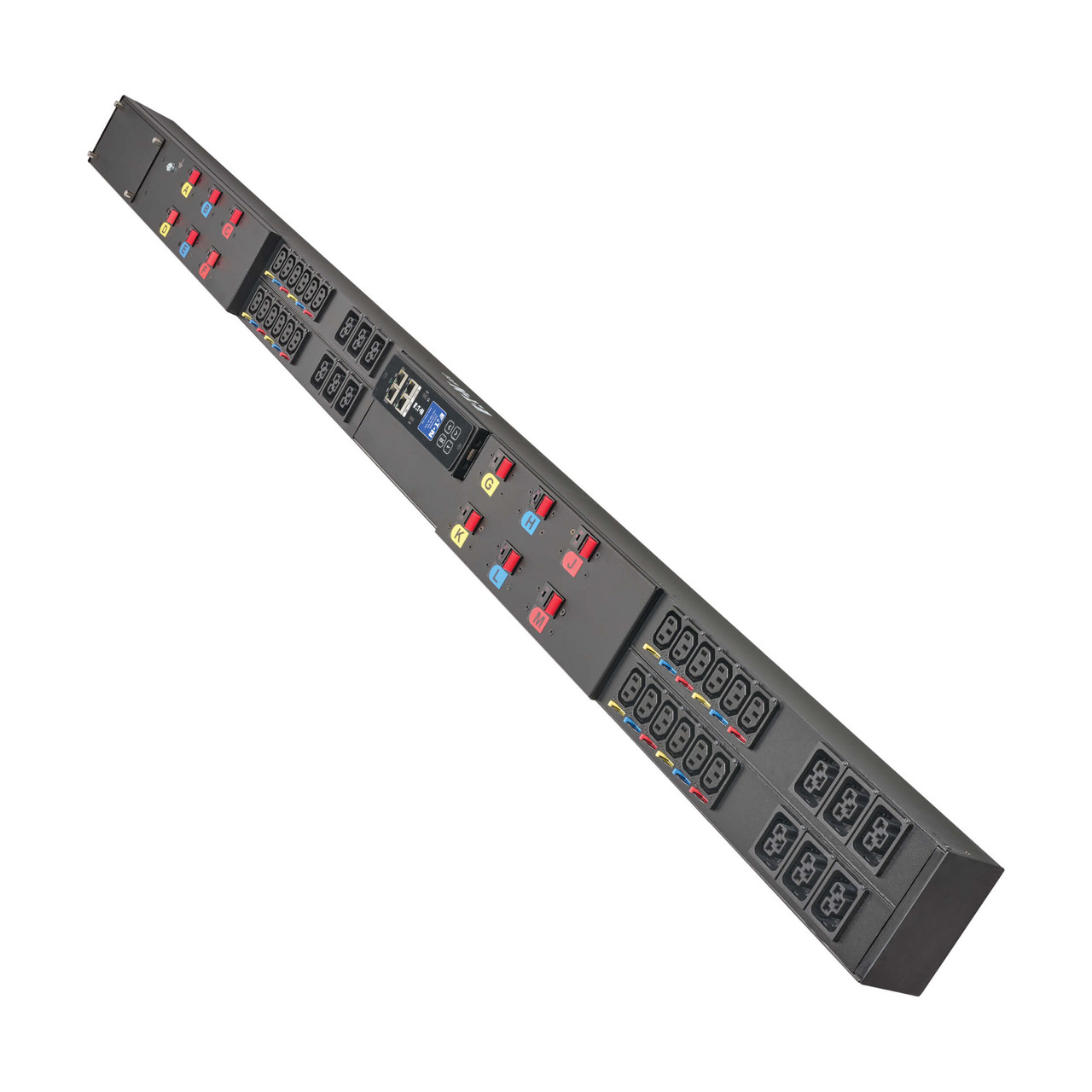

Eaton 3-Phase Managed HDX Rack PDU G4, 240/415V, 36 Outlets (24 C13 + 12 C39), 64A, 46kW, Hardwired Input, 0U Vertical, TAA - EMAGECC3C3C3C3L

The Eaton 3-Phase Managed HDX Rack PDU G4, model EMAGECC3C3C3C3L, is designed to deliver high-density, enterprise-grade power distribution for demanding IT environments. With 46 kW capacity and 64A per phase, it supports GPU-intensive applications such as high-performance computing, generative AI, supercomputing, and high-frequency trading. The unit offers advanced monitoring, cybersecurity, and outlet-level control to ensure efficiency, reliability, and compliance in large-scale data centers and colocation facilities.

Features

• Provides 46 kW of three-phase power distribution for ultra-high-density racks
• 36 outlets total: 24 x C13 and 12 x C39 combo outlets supporting C14 and C20 connectors
• Secure management with chain-of-trust encryption and secure firmware boot
• Hot-swappable Gigabit Network Module with zero-trust architecture and firewall configuration
• Seamless integration with Eaton Brightlayer Data Centers suite via SNMP or MQTT
• Remote management with web browser, dashboards, automated alerts, and reports
• Outlet-level monitoring and control, including power cycling, sequencing, and load shedding
• Support for up to three optional environmental monitoring probes for temperature, humidity, and dry-contact alerts

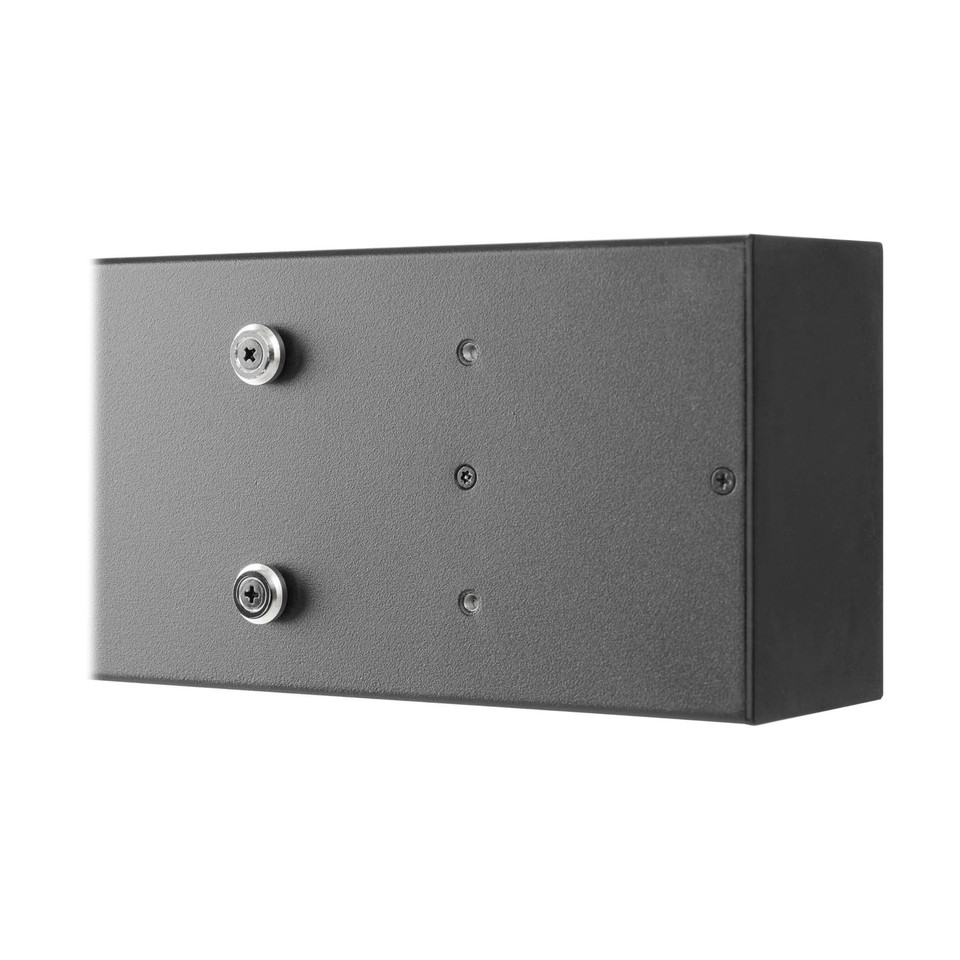

• Preinstalled tool-less mounting buttons for simplified vertical rack installation
• Cascade up to 40 units with individual IP addressing for scalable deployment
• Compliant with the Federal Trade Agreements Act (TAA) for federal procurement

Technical Specification

• Input Phase: 3-Phase
• Voltage: 220/380V, 230/400V, 240/415V Wye
• Maximum Input Current: 64A
• Input Connection: Hardwired
• Frequency Compatibility: 50 / 60 Hz
• Output Capacity: 46.08 kVA / 46.08 kW
• Output Receptacles: 24 x C13, 12 x C39
• Circuit Protection: 12 x 2-pole 20A circuit breakers
• Management: Ethernet and serial interface, daisy-chain up to 40 PDUs
• Network Support: 10/100/1000 Mbps
• Front Panel Display: LCD with outlet-level readings, alarms, and configuration controls
• Indicators: Green (outlet on), Red (PDU powered, outlet off)
• Measurement Accuracy: ±1% for current, voltage, and power
• Material: Aluminum, black finish
• Rack Height: 0U vertical form factor
• Unit Dimensions: 176.3 × 10.4 × 6.4 cm
• Unit Weight: 13.39 kg
• Operating Temperature: 0° to 60°C
• Storage Temperature: -25° to 65°C
• Humidity Range: 5%–95% non-condensing
• Operating Elevation: 0–3000 m
• Storage Elevation: 0–15240 m
• Certifications: UL, cUL, CE, FCC Part 15 Class A, TAA compliant
• Warranty: 3-year limited worldwide
