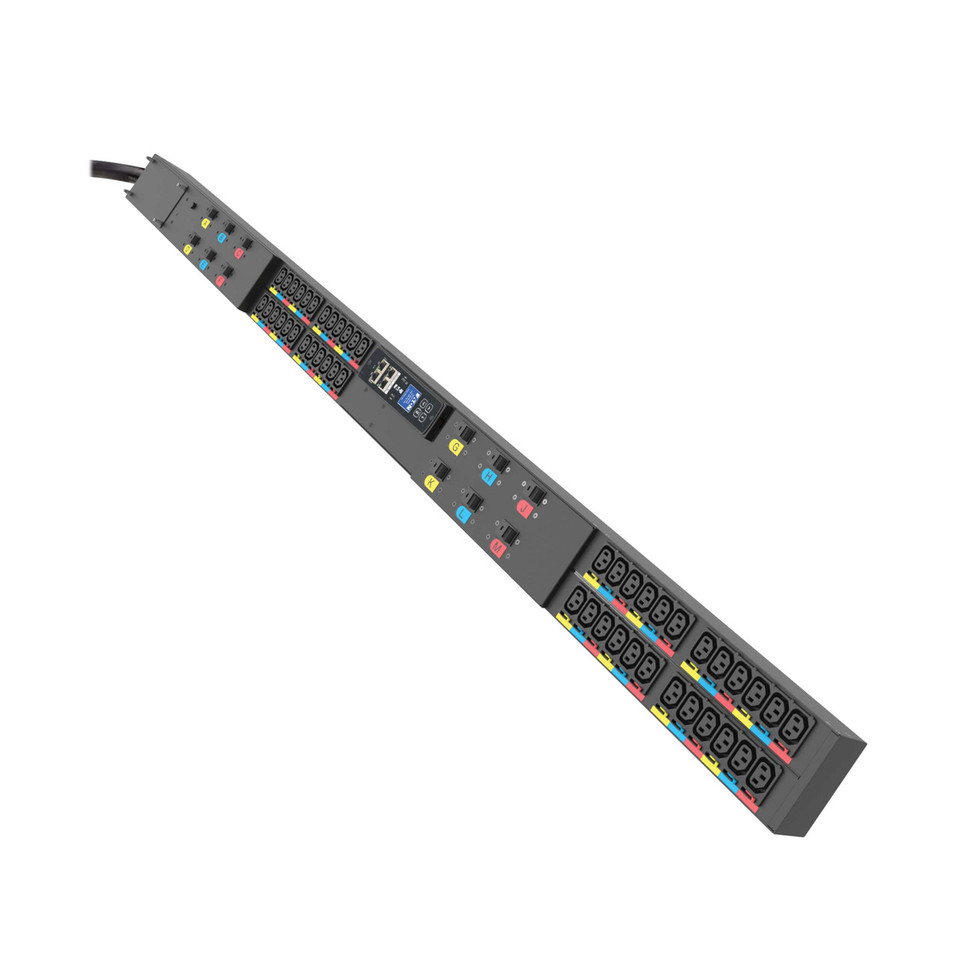

Eaton 3-Phase Managed HDX Rack PDU G4, 240/415V, 48 C13 Outlets, 60A, 35kW, 560P6W Input, 6 ft. Cord, 0U Vertical, TAA - EMAGFFC2C2C2C2L
The Eaton 3-Phase Managed HDX Rack PDU G4 (EMAGFFC2C2C2C2L) is a high-performance, enterprise-grade power distribution unit built for modern data centers, colocation facilities, and distributed IT environments. With 48 C13 outlets and a total power capacity of 35kW, it is designed to deliver reliable and scalable power to high-density rack equipment, including GPU-intensive workloads such as HPC, generative AI, supercomputing, and high-frequency trading.
This PDU integrates market-leading cybersecurity features to prevent vulnerabilities, including chain-of-trust encryption, secure firmware boot, and zero-trust architecture. Its hot-swappable Gigabit Network Module with LCD display provides real-time monitoring, outlet-level control, and seamless remote management. Eaton’s Brightlayer Data Centers suite compatibility further enhances operational efficiency by enabling proactive monitoring, automation, and reporting across distributed environments.
Engineered for convenience and resilience, the PDU offers toolless installation, evenly distributed circuit breakers, and cascading support for up to 40 units for centralized control. With TAA compliance, environmental monitoring support, and a rugged vertical 0U form factor, it provides the scalability, efficiency, and compliance needed for mission-critical IT operations.
Features
- High-Density Power Distribution: 48 C13 outlets with 35kW total capacity, supporting diverse rack equipment.
- Cybersecurity Protection: Chain-of-trust encryption, secure firmware boot, zero-trust architecture, and configurable firewall.
- Hot-Swappable Network Module: Gigabit Network Module with LCD for secure management, zero-touch provisioning, and monitoring.
- Brightlayer Integration: Supports DITPM and DCPM software for asset control, reporting, and proactive downtime prevention.
- Remote Outlet Management: Outlet-level monitoring, sequential startups, load shedding, and remote power cycling.
- Environmental Monitoring: Compatible with up to three optional probes for temperature, humidity, and dry-contact alerts.
- Simplified Installation: Preinstalled toolless mounting buttons with evenly distributed breakers for efficient cabling.
- Scalable Management: Cascade up to 40 PDUs for centralized monitoring with individual IPs.
- TAA Compliant: Approved for GSA Schedule and federal procurement contracts.
Technical Specifications
- Part Number: EMAGFFC2C2C2C2L
- PDU Type: Managed, 3-Phase
- Input Voltage: 240/415V (supports 220/380V, 230/400V, 240/415V Wye)
- Input Connection: 560P6W, 60A maximum input current

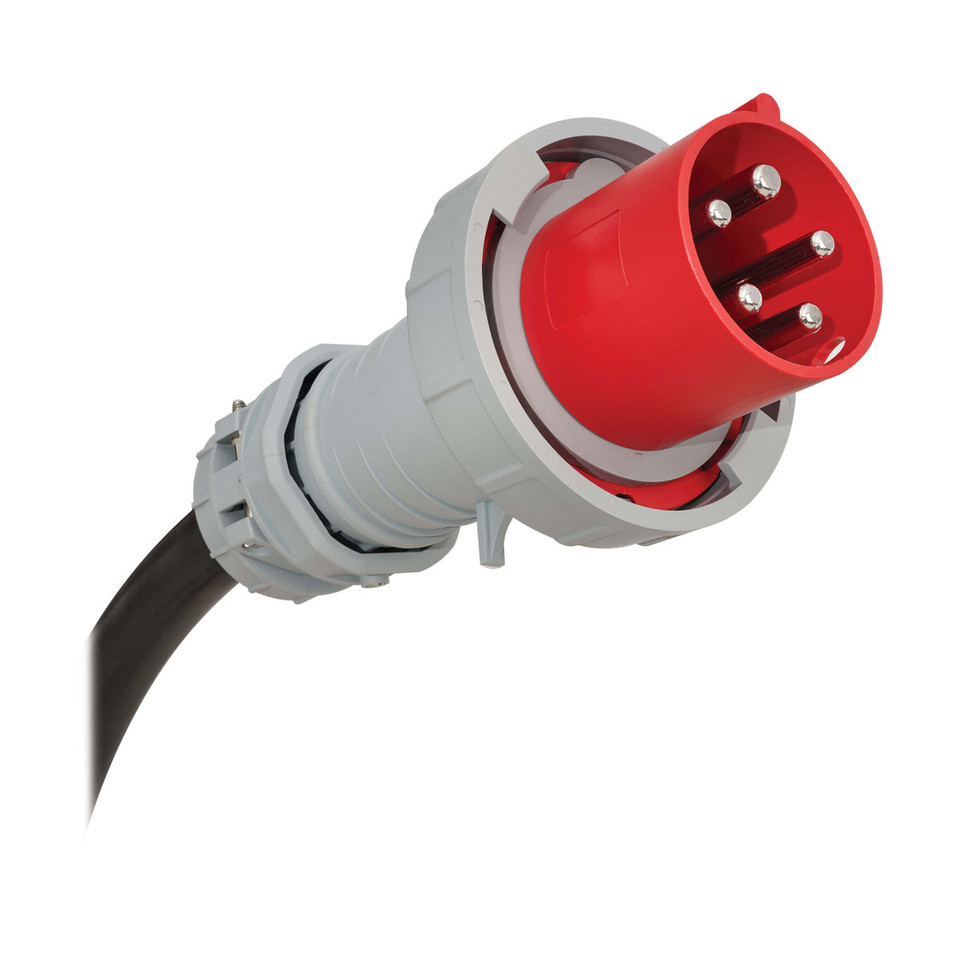

- Input Cord: 6 ft., 560P6W plug type
- Output Capacity: 35kW / 34.56kVA total, 48A max per phase
- Outlets: 48 C13
- Circuit Protection: 12 low-profile 20A 2-pole breakers
- Frequency Compatibility: 50/60 Hz
- Interfaces: Serial, Ethernet (10/100/1000 Mbps), cascade up to 40 PDUs
- Display: LCD with outlet-level readings, alarms, energy monitoring, and auto shut-off for energy savings
- Indicators: Green = outlet on; Red = PDU powered but outlet off
- Measurement Accuracy: ±1% for current, voltage, and power
- Material: Aluminum housing, black finish
- Form Factor: 0U Vertical
- Dimensions: 69.45 x 4.09 x 2.48 in.
- Weight: 29.52 lbs.
- Environmental Conditions: Operating 0° to 60°C; storage -25° to 65°C; 5–95% RH non-condensing
- Altitude: Operating up to 3000 m; storage up to 15240 m
- Compliance: UL Listed, cUL Listed, CE, FCC Part 15 Class A, TAA compliant
- Warranty: 3-year limited warranty
