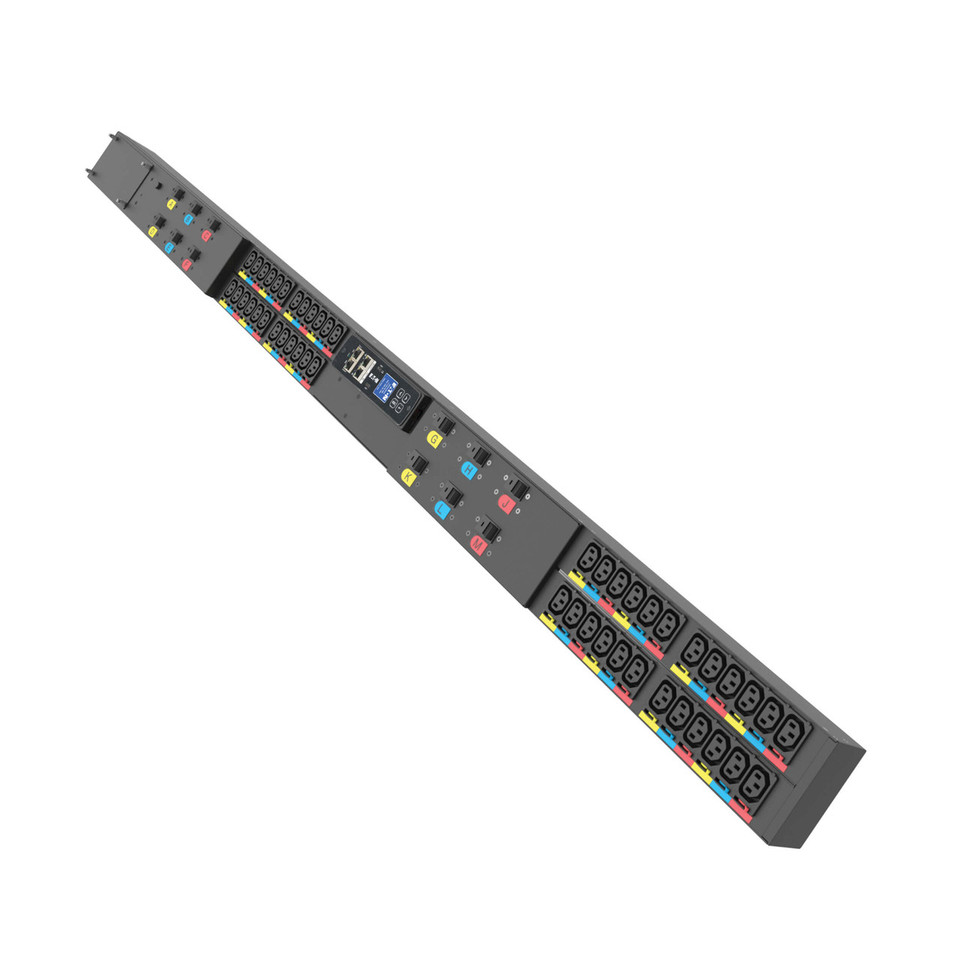

Eaton 3-Phase Managed HDX Rack PDU G4, 240/415V, 48 C13 Outlets, 64A, 46kW, Hardwired Input, 0U Vertical, TAA - EMAGECC2C2C2C2L
The Eaton EMAGECC2C2C2C2L 3-Phase Managed HDX Rack PDU G4 is a high-power, enterprise-grade solution designed for modern data centers, colocation facilities, and edge computing environments. Built to support GPU-intensive applications such as HPC, generative AI, supercomputing, and high-frequency trading, this managed PDU delivers ultra-high-density power distribution with advanced cybersecurity and remote management capabilities. Equipped with 48 C13 outlets, the unit ensures efficient outlet-level monitoring and control, while a hot-swappable Gigabit Network Module provides seamless connectivity, industry-leading cybersecurity, and flexible management options. The PDU integrates with Eaton’s Brightlayer Data Centers suite, offering performance management, trend monitoring, alerts, and automation to maximize uptime and efficiency. Its modular design allows cascading of up to 32 PDUs for scalable deployments, while TAA compliance ensures eligibility for federal procurement. Engineered with durability, scalability, and security in mind, the EMAGECC2C2C2C2L is an ideal choice for powering next-generation, high-density IT infrastructure.
Features
- High-Density Power Distribution: 46kW capacity with 64A per output phase, supporting multiple GPU/LPU servers in a single rack.
- Advanced Cybersecurity: Hot-swappable Gigabit Network Module with chain-of-trust encryption, secure boot, zero-trust architecture, and firewall configuration.
- Remote Management: Outlet-level control with sequencing, power cycling, alerts, and remote shutdown to optimize performance and reduce downtime.
- Brightlayer Integration: Compatible with Eaton’s Brightlayer Data Centers suite (DITPM and DCPM) for monitoring, reporting, and automated management.
- Scalable Deployment: Daisy-chain up to 32 PDUs with individual IP addresses from one connection point.
- Convenient Installation: Toolless mounting buttons, distributed circuit breakers, and alternate-phase outlet distribution simplify setup and cable routing.
- Environmental Monitoring Ready: Supports up to three optional EMPDT1H1C2 probes for monitoring temperature, humidity, and dry-contact devices.
- TAA Compliance: Meets requirements for federal procurement, including GSA Schedule purchases.
Technical Specifications
- UPC Code: 037332296221
- PDU Type: Managed
- Input Phase: 3-Phase
- Input Voltage: 240/415V (supports 220/380V, 230/400V, 240/415V 3-PH Wye)
- Input Connection: Hardwired
- Maximum Input Amps: 64A
- Output Capacity: 46kW / 46.08kVA
- Output Outlets: 48 × C13
- Circuit Protection: (12) 2-pole 20A circuit breakers
- Frequency Compatibility: 50 / 60 Hz
- Network Interfaces: Serial, Ethernet (10/100/1000 Mbps), Gigabit Network Module G4
- User Interface: Front-panel LCD with outlet-level readings, alarms, IP configuration, and energy monitoring
- Monitoring Accuracy: Current, voltage, and power ±1%
- Form Factor: 0U Vertical mount, aluminum housing
- Dimensions (Unit): 69.45 × 4.09 × 2.48 in (176.3 × 10.4 × 6.4 cm)
- Weight (Shipping): 29.52 lbs (13.39 kg)
- Environmental: Operating 0–60°C; Storage -25–65°C; Humidity 5–95% non-condensing; Elevation up to 3000 m operating
- Compliance: UL Listed, cUL Listed, CE, FCC Part 15 Class A, TAA
- Warranty: 3-year limited warranty (worldwide)
Package Includes
- Eaton EMAGECC2C2C2C2L 3-Phase Managed HDX Rack PDU G4
- Pre-installed mounting hardware
- Installation guide
