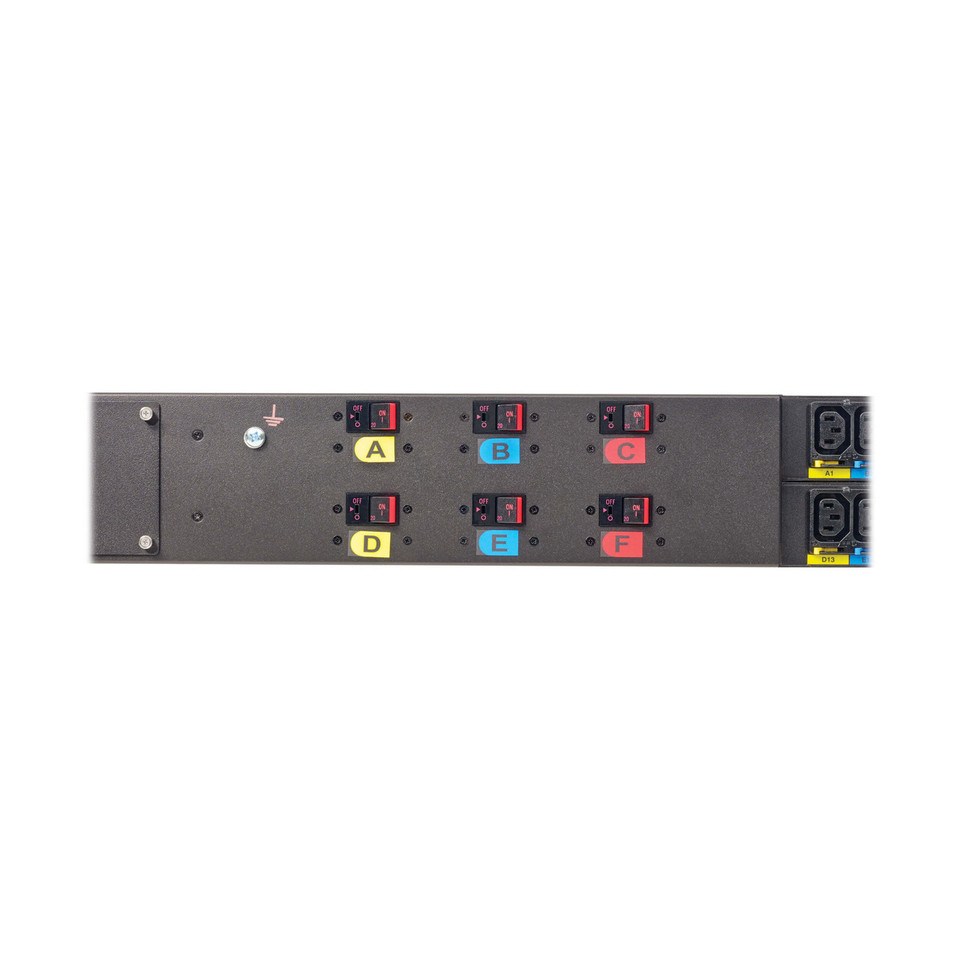

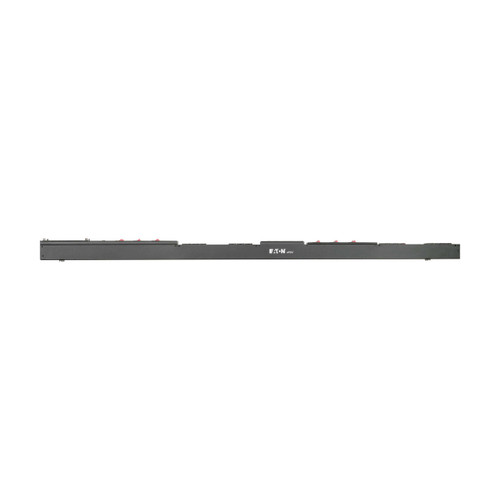

Eaton 3-Phase Managed HDX Rack PDU G4, 240/415V, 48 Outlets (24 C13 + 24 C39), 64A, 46kW, Hardwired Input, 0U Vertical, TAA - EMAGECA5A5A5A5L

The Eaton 3-Phase Managed HDX Rack PDU G4 delivers ultra-high-density power distribution for the most demanding data center environments. Designed to support GPU-intensive workloads such as HPC, generative AI, supercomputing, and high-frequency trading, this managed PDU ensures reliable performance while offering remote outlet-level monitoring and control. With advanced cybersecurity, seamless integration with Eaton Brightlayer software, and efficient management features, it empowers IT teams to reduce downtime, optimize energy use, and increase operational resilience. Its hot-swappable Gigabit Network Module, tool-free vertical mounting, and daisy-chain scalability make it an essential power management solution for enterprise data centers, colocation facilities, and distributed IT environments.

Features

• High-power distribution supporting up to 46kW for GPU and high-density server racks
• 48 outlets (24 C13 + 24 C39) for flexible deployments with fewer PDU types required
• Advanced cybersecurity with secure firmware boot, zero-trust architecture, and firewall protection
• Hot-swappable Gigabit Network Module for remote management and reduced downtime risk
• Remote outlet monitoring and control with sequential startups, load shedding, and power cycling
• Seamless software integration with Eaton Brightlayer Data Centers Suite for performance monitoring and automated management
• Environmental monitoring support for temperature, humidity, and dry-contact sensors (optional probes sold separately)
• Tool-free installation with preinstalled mounting buttons and evenly distributed circuit breakers for efficient cable management
• Scalable daisy-chaining for up to 32 units with individual IP addresses
• TAA compliant for federal procurement requirements

Technical Specifications

• Product type: Managed HDX Rack PDU G4
• Input phase: 3-phase hardwired
• Input voltage: 240/415V (supports 220/380V, 230/400V, 240/415V Wye)
• Maximum input amps: 64A
• Output capacity: 46kW (240/415V), 64A max per phase
• Outlets: 24 × C13, 24 × C39 combo
• Circuit protection: 12 × 20A 2-pole circuit breakers
• Frequency compatibility: 50 / 60 Hz
• Network connectivity: Ethernet/Serial, supports SNMP, MQTT, web browser access
• Measurement accuracy: ±1% for current, voltage, and power
• Display: LCD with outlet-level readings, alarms, and energy data
• Dimensions (H × W × D): 75.98 × 4.09 × 2.48 in
• Weight: 31.33 lb
• Material: Aluminum, vertical (0U) form factor
• Operating temperature: 0° to 60°C (32° to 140°F)
• Relative humidity: 5% to 95% non-condensing
• Compliance: UL, cUL, CE, FCC Class A, TAA
• Warranty: 3-year limited warranty

DATASHEET
