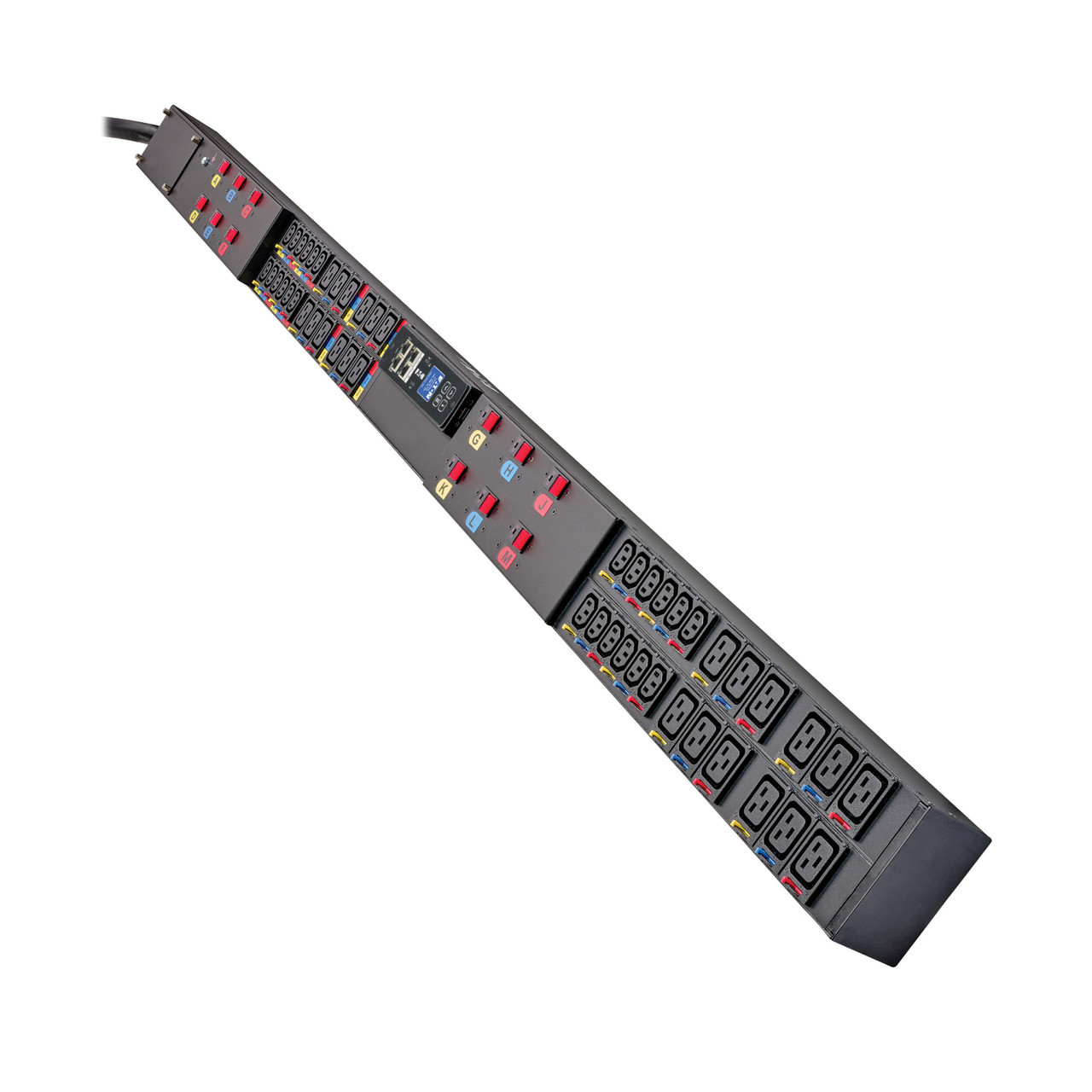

Eaton 3-Phase Managed HDX Rack PDU G4, 240/415V, 54 Outlets (42 C13 + 12 C39), 60A, 35kW, 560P6W Input, 6 ft. Cord, 0U Vertical, TAA - EMAGFFA5A2A5A2L
The Eaton 3-Phase Managed HDX Rack PDU G4 (EMAGFFA5A2A5A2L) is a high-density power distribution solution designed for large-scale enterprise data centers, colocation facilities, and distributed IT environments. With a total capacity of 35kW and 54 outlets (42 C13 and 12 C39), it is engineered to support GPU-intensive and high-performance workloads such as supercomputing, generative AI, HPC, and high-frequency trading. Its advanced cybersecurity features, including chain-of-trust encryption, secure firmware boot, and zero-trust architecture, safeguard your infrastructure from cyber threats while enabling secure and efficient management.
The embedded hot-swappable Gigabit Network Module provides real-time monitoring, reporting, and remote management through a menu-driven LCD. Integration with Eaton’s Brightlayer Data Centers suite ensures proactive asset and power management across distributed sites. Features such as individual outlet monitoring, sequential startups, load-shedding, and remote power cycling maximize uptime and operational efficiency. Designed with toolless mounting, cascaded management capabilities, and TAA compliance, this PDU offers unmatched scalability, security, and compliance readiness for mission-critical environments.
Features
- High-Density Distribution: 54 outlets (42 C13 and 12 C39) with 35kW total capacity.
- Cybersecurity Protection: Chain-of-trust encryption, secure firmware boot, zero-trust architecture, and user-configurable firewall.
- Hot-Swappable Network Module: Integrated Gigabit Network Module (GNM) with LCD for secure and flexible management.
- Brightlayer Integration: Compatible with DITPM and DCPM for proactive monitoring, automation, and asset control.
- Remote Outlet Control: Individual outlet monitoring, power cycling, sequential startup, and load shedding for optimized uptime.
- Environmental Monitoring: Supports up to three optional probes for temperature, humidity, and dry-contact alerts.
- Simplified Deployment: Preinstalled toolless mounting buttons and evenly distributed breakers for efficient installation.
- Scalable Connectivity: Daisy-chain up to 40 PDUs for centralized management with individual IPs.
- TAA Compliant: Eligible for GSA Schedule and federal procurement contracts.
Technical Specifications
- Part Number: EMAGFFA5A2A5A2L
- PDU Type: Managed, 3-Phase
- Input Voltage: 240/415V (supports 220/380V, 230/400V, 240/415V Wye)
- Input Connection: 560P6W, 60A maximum input current
- Input Cord: 6 ft., 560P6W plug type
- Output Capacity: 35kW / 34.56kVA total, 48A max per output phase

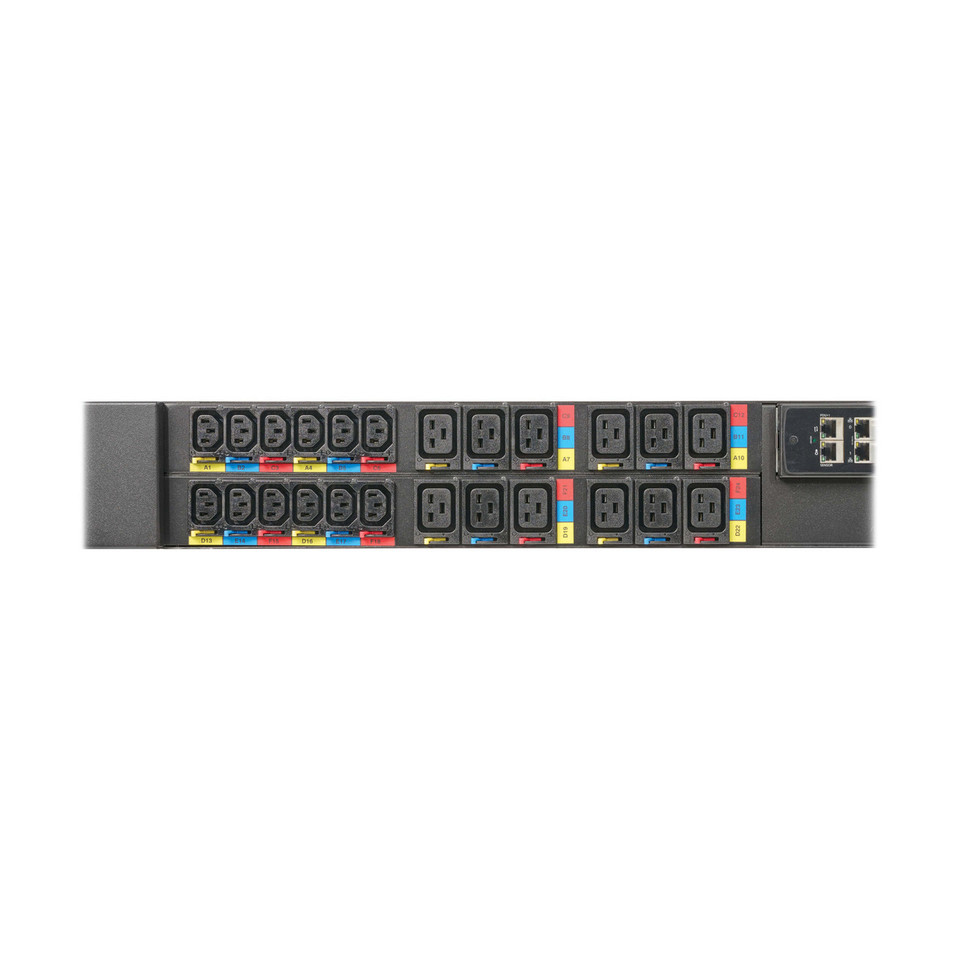

- Outlets: 54 total (42 C13, 12 C39 combo outlets)
- Circuit Protection: 12 low-profile 20A 2-pole breakers
- Frequency Compatibility: 50/60 Hz
- Interfaces: Serial, Ethernet (10/100/1000 Mbps), cascade up to 40 PDUs
- Display: LCD with outlet-level readings, alarms, energy monitoring, and automatic shut-off for efficiency
- Indicators: Green = outlet on; Red = PDU powered but outlet off
- Measurement Accuracy: ±1% for current, voltage, and power
- Material: Aluminum housing, black finish
- Form Factor: 0U Vertical
- Dimensions: 75.98 x 4.09 x 2.48 in.
- Weight: 31.33 lbs.
- Environmental Conditions: Operating 0° to 60°C; storage -25° to 65°C; 5–95% RH non-condensing
- Altitude: Operating up to 3000 m; storage up to 15240 m
- Compliance: UL Listed, cUL Listed, CE, FCC Part 15 Class A, TAA compliant
- Warranty: 3-year limited warranty
