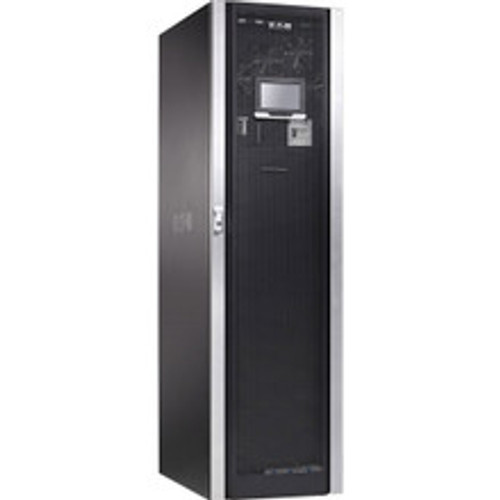

Eaton 93PM IAC-D 100kW K1 Non-TP1 480/208V Delta/Wye with 3 Subfeed Breakers - 9PZE1S802000001

The Eaton 93PM Integrated Accessory Cabinet-Distribution (IAC-D) 100kW K1 Non-TP1 480/208V Delta/Wye with 3 Subfeed Breakers (part number 9PZE1S802000001) is a high-performance power distribution solution designed for seamless integration with Eaton 93PM Series Uninterruptible Power Supplies (UPSs). Engineered for modern data centers, medical facilities, and critical infrastructure, this cabinet provides flexible power distribution for servers, racks, and larger loads through customizable subfeed circuit breakers. It features a robust 100kW capacity with a 480V input and 208/120V Wye output configuration, utilizing a K1-rated transformer for efficient power conversion without the TP1 energy efficiency standard. The inclusion of three 100-250A adjustable subfeed breakers allows for tailored power allocation, while the cabinet’s compact, free-standing design with front-access maintenance and safety shields ensures ease of installation and hazardous voltage protection. Matching the aesthetic and build quality of the 93PM UPS, this IAC-D offers scalability, reliability, and adaptability without requiring costly electrical rework, making it ideal for dynamic IT environments.

Features

Power Distribution

• 100kW Capacity: Rated for 100kW power distribution, supporting high-density server racks and critical equipment in data centers and enterprise environments.
• Three Adjustable Subfeed Breakers: Includes three 100-250A adjustable subfeed breakers, enabling customizable power distribution to multiple loads without additional infrastructure.
• K1-Rated Transformer: Features a K1-rated transformer (non-TP1) for efficient 480V Delta input to 208/120V Wye output conversion, suitable for diverse load requirements.
• Custom Configurability: Allows flexible power distribution configurations, supporting adaptation and expansion without costly electrical modifications.

Design and Installation

• Compact Free-Standing Cabinet: Housed in a single, space-efficient cabinet that matches the style and color of the Eaton 93PM UPS for a cohesive data center aesthetic.
• Front-Access Maintenance: Designed for easy front-only access, simplifying installation, maintenance, and service without requiring rear clearance.
• Safety Shields: Equipped with internal safety shields behind the front door to protect against hazardous voltage, enhancing operator safety.

Reliability and Compatibility

• Seamless UPS Integration: Specifically designed for compatibility with Eaton 93PM Series UPSs (50–200kW), ensuring reliable power distribution for critical applications.
• Ultra Durable Build: Constructed with high-quality materials to withstand demanding environments, providing long-term reliability for mission-critical operations.
• Wide Operating Conditions: Operates in temperatures from 0°C to 40°C and up to 95% non-condensing humidity, with storage conditions from -25°C to 55°C, ensuring robustness in various environments.

Thermal and Efficiency

• Optional Fan Cooling: Available with fan configurations for enhanced thermal management, maintaining optimal operating temperatures for the 100kW model.

Technical Specifications

• Model: Eaton 93PM IAC-D 100kW (9PZE1S802000001).
• Power Rating: 100kW.
• Input Voltage: 480V Delta, 3-phase.
• Output Voltage: 208/120V Wye, 3-phase.
• Transformer: K1-rated, non-TP1 (standard efficiency).
• Subfeed Breakers: Three 100-250A adjustable subfeed breakers.
• Input Configuration: 480V, 3-phase, 3-wire plus ground.
• Output Configuration: 208/120V Wye, 3-phase, 4-wire plus ground.
• Distribution Options: Supports subfeed breakers for customizable power distribution (no panelboard included in this configuration).
• Cooling: Optional fan cooling for thermal management (specific to 100kW model with fans).
• Operating Temperature: 0°C to 40°C (32°F to 104°F).
• Storage Temperature: -25°C to 55°C (-13°F to 131°F).
• Operating Humidity: 5% to 95% non-condensing.
• Operating Altitude: Up to 2000m (6600 ft) without derating.
• Dimensions (H x W x D): Approximately 74.9" x 22.0" x 42.0" (1902 mm x 559 mm x 1067 mm, based on typical 93PM IAC-D dimensions).
• Weight: Approximately 800–1000 lbs (363–454 kg, depending on configuration).
• Safety Certifications: UL 1778, UL 891, and other relevant standards for safe operation.
• Warranty: Typically covered under Eaton’s standard UPS accessory warranty (consult Eaton for specifics).
• Compatibility: Designed for Eaton 93PM UPS (50–200kW models).
