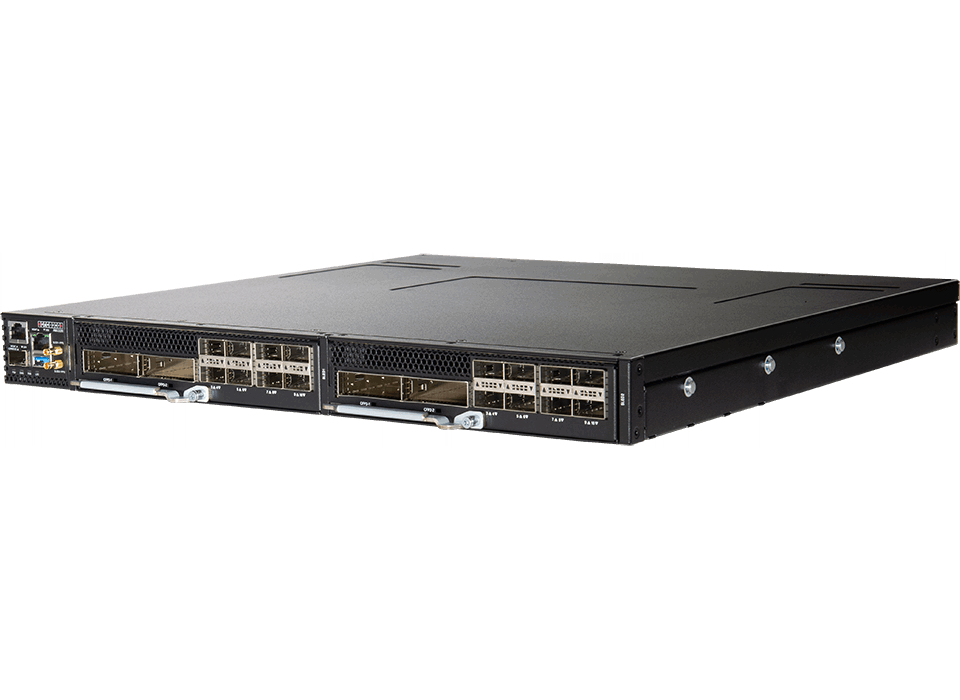

Edgecore 3.2T Coherent Transponder and Muxponder - 1200 W DC PSU Front-To-Back Airflow, Front To Backairflow - AMX3200-O-48V-F
1+1 redundant load-sharing, hot-swappable (73.5 mm W x 185mm D), Fan-tray modules with 5 pcs of 40.5 mm x 70.14 mm 12V fans, hot-swappable. Sled configuration OTN Supported: 2 x 400G CFP +8 x 100G QSFP28
3.2 Tbps switching capacity that is designed for building high-capacity optical transport networks.
AMX3200 is a new-generation coherent transponder and muxponder with 3.2 Tbps switching capacity that is designed for building high-capacity optical transport networks.
AMX3200 is designed and built as a disaggregated system to offer flexibility with different NOS options in modular sled-based line modules.
AMX3200 is designed to expand Datacenter Interconnect (DCI), and service provider backhaul over the coherent-wavelength-supporting C-band channel in different applications based on CFP2-DCO specifications.
Features
- 200G/300G/400G high capacity for 1000km/2000km long-haul transmission
- Dual front-panel modular sled design, each sled supports 8 x QSFP+/QSFP28 client interfaces and 2 x 400G (CFP2-DCO) line interfaces. AMX3200 is an upgrade with other types of interface sleds in the future, which enables smooth migration during capacity expansion.
- Complies with OIF400ZR, OpenZR+, and OpenROADM industry standards
- Supports 400G, 300G, 200G, and 100G optical line rates over modulation formats DP-16QAM, DP-8QAM, DP-QPSK, and dQPDK
- 4 × 200/300/400G discrete, pluggable network ports up to 16 × 100 GbE/OTU4 (QSFP28)
- Modular 1RU sled design
- Maximum 1.6 Tbps capacity per sled
- Supports in-band management
- Supports DCI, metro networks
- Supports gearbox, re-timer/crosspoint/2:1 hitless mux
