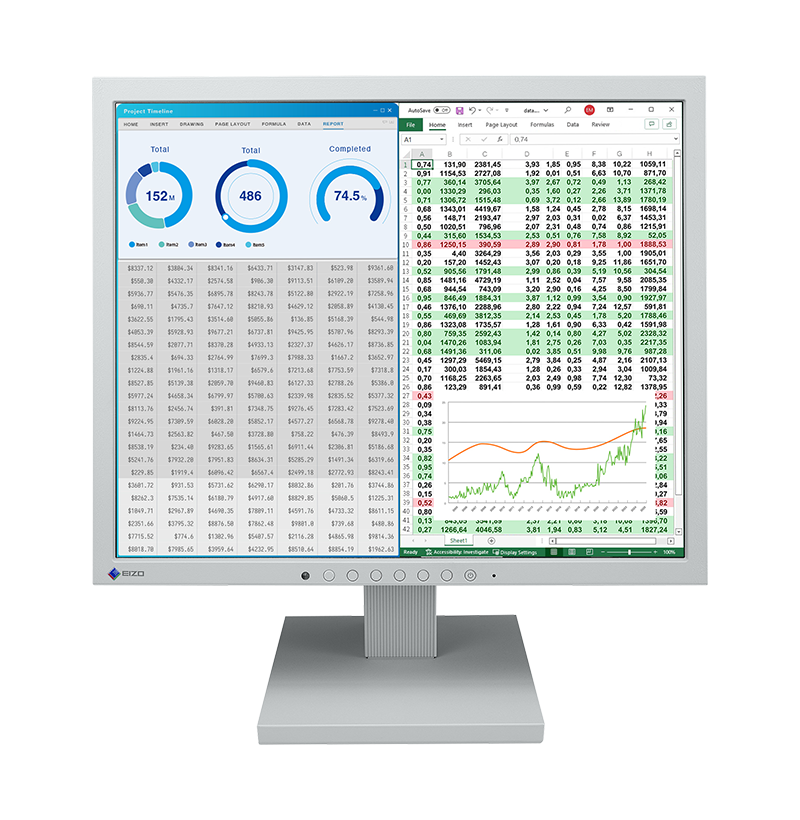

EIZO FlexScan S1734 17.0" Color LCD Monitor
This 17-inch square monitor with 1280 x 1024 resolution features wide viewing angles and energy efficient functions. A 5-year warranty and long-term supply ensures it can be used in back offices and control rooms reliably throughout the long life of the system or application.
- Specifications
- Documents Compatibility
- Accessories
- Awards & Reviews
Specifications
| Model Variations | S1734-HBK: with Height Adjustable Stand, black S1734-HGY: with Height Adjustable Stand, gray S1734-TBK: with Tilt Stand, black S1734-TGY: with Tilt Stand, gray S1734-FBK: without stand, black S1734-FGY: without stand, gray Note: Stand is removable |
|---|---|
| Panel | |
| Type | IPS |
| Backlight | LED |
| Size | 17.0" (43.3 cm) |
| Native Resolution | 1280 x 1024 (5:4 aspect ratio) |
| Viewable Image Size (H x V) | 337.9 x 270.3 mm |
| Pixel Pitch (H x V) | 0.264 x 0.264 mm |
| Pixel Density | 96 ppi |
| Display Colors | 16.77 million |
| Viewing Angles (H / V, typical) | 178° / 178° |
| Brightness (typical) | 250 cd/m2 |
| Contrast Ratio (typical) | 1000:1 |
| Response Time (typical) | 5 ms (gray-to-gray) |
| Color Gamut (typical) | sRGB |
| Video Signals | |
| Input Terminals | DVI-D (HDCP 1.4), D-Sub mini 15 pin |
| Digital Scanning Frequency (H / V) | 31 - 64 kHz / 59 - 61 Hz |
| Analog Scanning Frequency (H / V) | 31 - 64 kHz / 55 - 61 Hz |
| Sync Formats | Separate |
| Power | |
| Power Input | AC 100 - 240 V, 50 / 60 Hz |
| Typical Power Consumption | 6 W |
| Maximum Power Consumption | 13 W |
| Power Save Mode | 0.5 W |
| Features & Functions | |
| Preset Modes | User1, User2, sRGB, Paper |
| Automatic Brightness Control | Auto EcoView |
| OSD Languages | English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese |
| Physical Specifications | |
| Dimensions (Landscape, W x H x D) | S1734-H: 367 x 391.5 - 491.5 x 204.6 mm S1734-T: 367 x 383.8 x 188 mm |
| Dimensions (Without Stand, W x H x D) | 367 x 304 x 59 mm |
| Net Weight | S1734-H: 5.1 kg S1734-T: 4.1 kg |
| Net Weight (Without Stand) | 3.3 kg |
| Height Adjustment Range | S1734-H: 100 mm S1734-T: - |
| Tilt | S1734-H: 30° Up, 0° Down S1734-T: 30° Up, 5° Down |
| Swivel | S1734-H: 35° Right / 35° Left S1734-T: - |
| Pivot | S1734-H: 90° (clockwise) S1734-T: - |
| Hole Spacing (VESA Standard) | 100 x 100 mm |
| Environmental Requirements | |
| Operating Temperature | 5 - 35°C |
| Operating Humidity (R.H., non condensing) | 20 - 80% |
| Certifications & Standards (Please contact EIZO for the latest information.) | TUV/Ergonomics, TUV/GS, RCM, CE, UKCA, CB, cTUVus, FCC-B, CAN ICES (B), TUV/S, VCCI-B, EPA ENERGY STAR, RoHS, WEEE, China RoHS, CCC |
| Supplied Accessories (May vary by country. Please contact EIZO for details.) | |
| Signal Cables | DVI-D (2 m), D-Sub mini 15 pin (1.8 m) |
| Others | AC power cord (2 m), setup guide |
| Warranty | 5 Years |
| Dimension Drawing |
