EVGA SuperNOVA 1000 G7, 80 Plus Gold 1000W, Fully Modular, Eco Mode with FDB Fan, 10 Year Warranty, Includes Power ON Self Tester, Compact 130mm Size, Power Supply - 220-G7-1000-X1
Features
- 80 PLUS Gold certified, with 92% (115VAC) / 93% (220VAC~240VAC) efficiency or higher under typical loads
- Half-bridge LLC Resonant Controller and DC-DC design leads to extremely tight voltage regulation and very low ripple & noise
- System Load LED Indicator Bars help you keep an eye on your overall power usage
- Fully Modular to reduce clutter and improve airflow
- 100% Japanese Capacitors ensure long-term reliability
- Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
- EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads
- Fluid Dynamic Bearing Fan for ultra-quiet operation and increased lifespan.
- Unbeatable EVGA 10 Year Warranty and unparalleled EVGA Customer Support

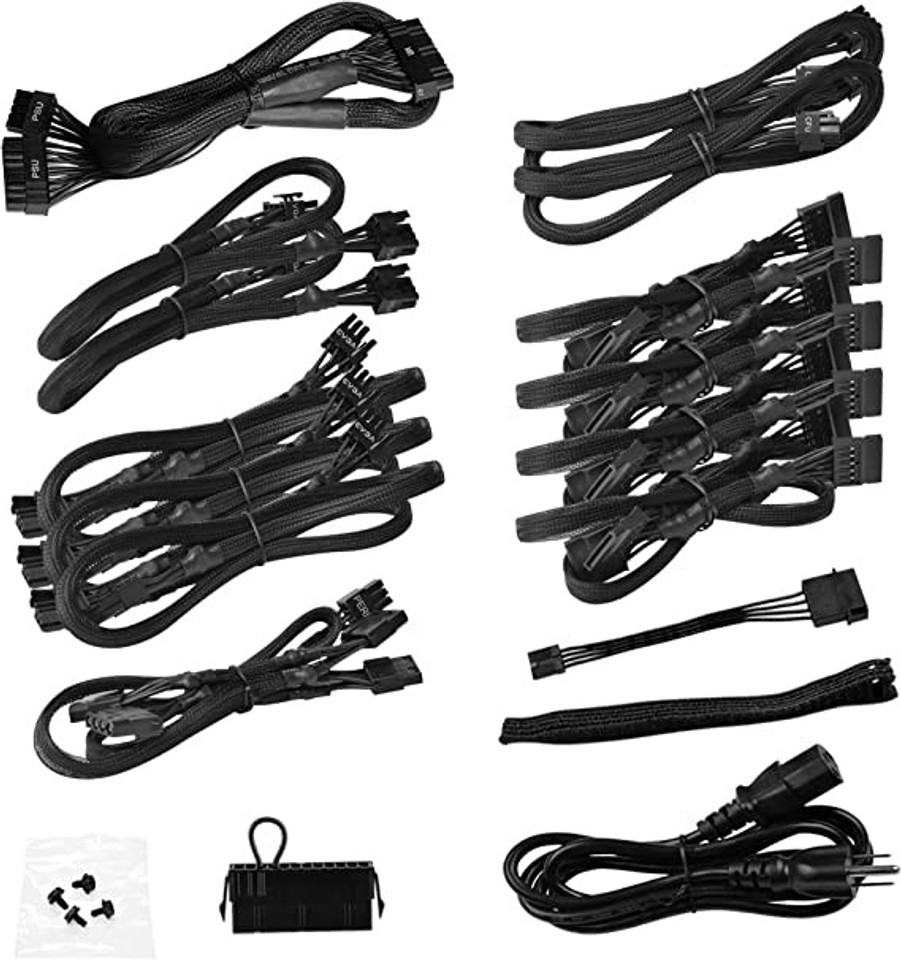

Cable Length
| ATX Cable | 1x 600mm |
| EPS Cable | 2x 700mm |
| PCIe Cable | 2x 700mm, 3x 700mm, 850mm |
| SATA Cable | 4x 550mm, 650mm, 750mm |
| Four-Pin Peripheral Cable | 1x 550mm, 650mm, 750mm, 850mm |
| Floppy Adapter | 1x 100mm |
| AC Power | 1x 1500mm |
| Modular Cable Type | Full |
Connector Quantity
| 24 Pin ATX | 1x 24pin |
| EPS (CPU) | 2x 8pin (4+4) |
| PCIe | 8x 8pin (6+2) |
| SATA | 12x |
| Four-Pin Peripheral | 4x |
| Floppy | 1x |
Power Specs
| AC Input | 100-240V~, 13-6.5A, 60/50Hz | ||||
| Rail | +3.3V | +5V | +12V | +5Vsb | -12V |
| Max Output | 25A | 25A | 83.3A | 3A | 0.5A |
| 120W | 1000W | 15W | 6W | ||
| Total | 1000W | ||||
Additional Details
| Operating Temperature | 0° to 50° C |
| Japanese Capacitors | 100% |
| ECO Mode | Yes |
| MTBF | 100,000 Hours |
| Net Weight | 7.40 lbs |
| Size | 85mm (H) x 150mm (W) x 130mm (L) |
| Approvals | TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 3 2014 Requirement |
| Fan Size / Bearing | 120mm Fluid Dynamic Bearing |
