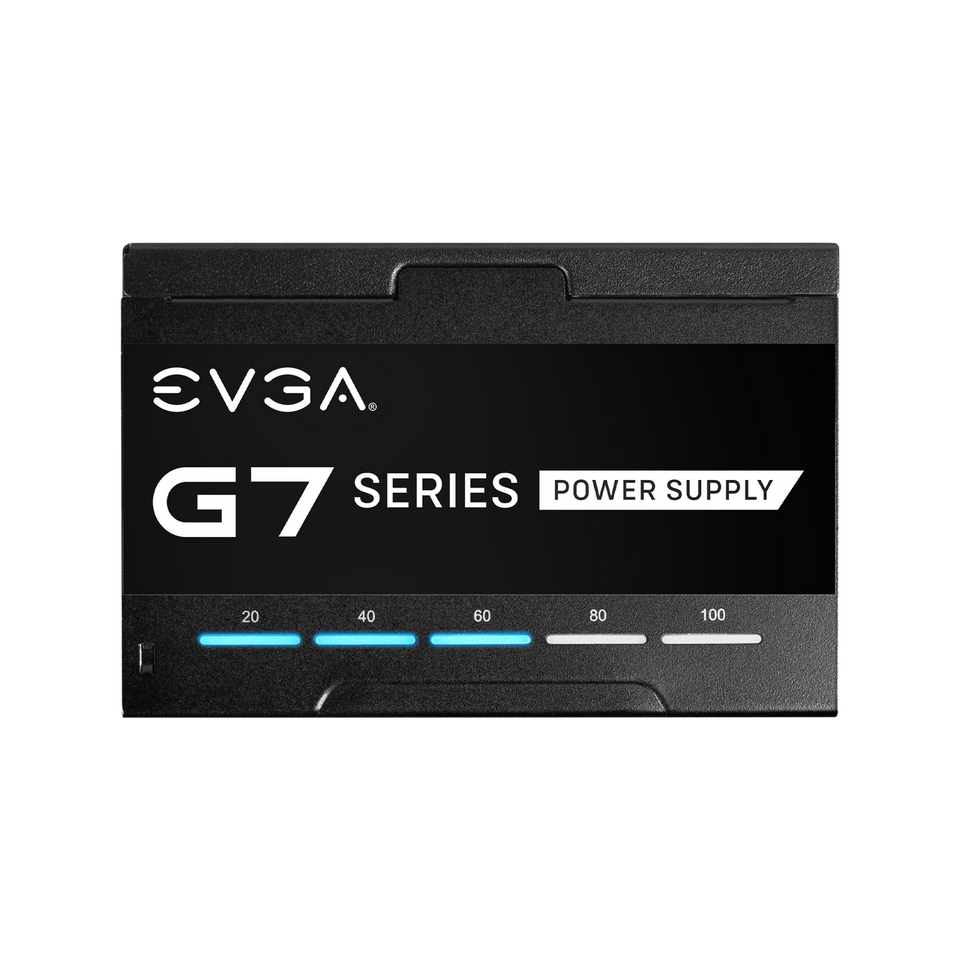

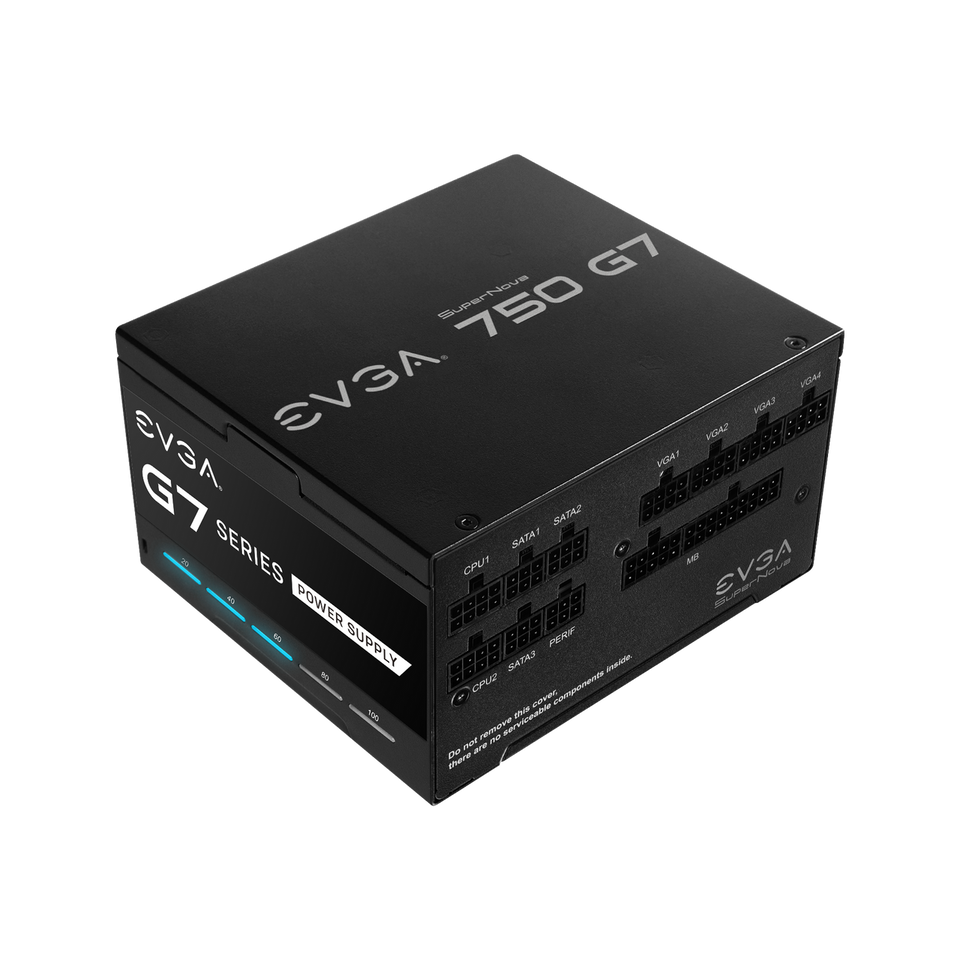

EVGA SuperNOVA 750 G7, 80 Plus Gold 750W, Fully Modular, Eco Mode with FDB Fan, 10 Year Warranty, Includes Power ON Self Tester, Compact 130mm Size, Power Supply - 220-G7-0750-X1
Experience unparalleled power and efficiency with the EVGA SuperNOVA 750 G7 power supply. This 80 Plus Gold certified PSU delivers 750 watts of continuous power with minimal energy waste, ensuring optimal performance for your high-end gaming rig or workstation.
Features
- 80 Plus Gold Certified: Guarantees over 90% efficiency at typical loads, reducing heat generation and electricity costs.
- Fully Modular Design: Enjoy a clean and organized build by using only the cables you need.
- Eco Mode with FDB Fan: Experience silent operation at low loads with the intelligent fan control, and enjoy extended lifespan thanks to the durable Fluid Dynamic Bearing fan.
- 10 Year Warranty: Built with the highest quality components and backed by EVGA's renowned warranty, this power supply offers peace of mind for years to come.
- Power ON Self Tester: Ensure the functionality of your PSU before connecting it to your system with the built-in self-test feature.
- Compact 130mm Size: The compact design allows for easy installation in a wide range of computer cases.
Cable Length
| ATX Cable | 1x 600mm |
| EPS Cable | 2x 700mm |
| PCIe Cable | 2x 700mm, 2x 700mm, 850mm |
| SATA Cable | 3x 550mm, 650mm, 750mm |
| Four-Pin Peripheral Cable | 1x 550mm, 650mm, 750mm, 850mm |
| Floppy Adapter | 1x 100mm |
| AC Power | 1x 1500mm |
| Modular Cable Type | Full |
Connector Quantity
| 24 Pin ATX | 1x 24pin |
| EPS (CPU) | 2x 8pin (4+4) |
| PCIe | 6x 8pin (6+2) |
| SATA | 9x |
| Four-Pin Peripheral | 4x |
| Floppy | 1x |
Power Specs
| AC Input | 100-240V~, 10-5A, 60/50Hz | ||||
| Rail | +3.3V | +5V | +12V | +5Vsb | -12V |
| Max Output | 24A | 24A | 62.5A | 3A | 0.5A |
| 120W | 750W | 15W | 6W | ||
| Total | 750W | ||||
Additional Details
| Operating Temperature | 0° to 50° C |
| Japanese Capacitors | 100% |
| ECO Mode | Yes |
| MTBF | 100,000 Hours |
| Net Weight | 6.90 lbs |
| Size | 85mm (H) x 150mm (W) x 130mm (L) |
| Approvals | TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 3 2014 Requirement |
| Fan Size / Bearing | 120mm Fluid Dynamic Bearing |
Product Warranty
This product comes with a 10 year limited warranty with registration.
EVGA offers several warranty solutions for our customers to choose from. Please refer to the suffix of the part number and our Warranty Terms for details.
