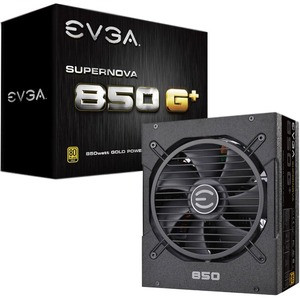

EVGA SuperNOVA 850W Power Supply - Internal - 120 V AC, 230 V AC Input - 3.3 V DC @ 24 A, 5 V DC @ 24 A, 12 V DC @ 70.8 A, 12 V DC @ 500 mA, 5 V @ 3 A Output - 850 W - 1 +12V Rails - 1 Fan(s) - 90% Efficiency - 2QP298
The EVGA SuperNOVA G+ Power Supplies have arrived. Launched in 2013, the EVGA SuperNOVA G1 power supplies have been among the longest-lasting and best-performing power supplies on the market. Despite only a few changes over the years, it's only fitting that these are due for an upgrade. Enter the G+, the new and improved fully-modular power supply line-up from EVGA with an 80+ Gold Efficiency rating.
Compared to the EVGA SuperNOVA G1 power supplies, the G+ are up to 20mm shorter, feature 100% Japanese capacitors, are up to 20% quieter, have much tighter 12v. load regulation, and have a superior fluid-dynamic bearing fan. Combining a full set of current, voltage, and temperature protections with EVGA's World Leading 10-Year Warranty, the EVGA SuperNOVA G+ power supplies set the new Gold standard for performance and value.
Compared to the EVGA SuperNOVA G1 power supplies, the G+ are up to 20mm shorter, feature 100% Japanese capacitors, are up to 20% quieter, have much tighter 12v. load regulation, and have a superior fluid-dynamic bearing fan. Combining a full set of current, voltage, and temperature protections with EVGA's World Leading 10-Year Warranty, the EVGA SuperNOVA G+ power supplies set the new Gold standard for performance and value.
Features
- 80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
- Fully Modular to reduce clutter and improve airflow
- Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
- 100% Japanese Capacitors ensure long-term reliability
- Whisper Silent with 135mm Fluid Dynamic Bearing Fan Technical SpecificationsWarranty
Limited Warranty 10 Year Physical CharacteristicsWeight (Approximate) 7 lb Form Factor Internal Height 3.3" Width 5.9" Depth 7.1" Power DescriptionInput Voltage 230 V AC 120 V AC Output Power 850 W Output Voltage 5 V @ 3 A 12 V DC @ 70.8 A 5 V DC @ 24 A 5 V @ 3 A 3.3 V DC @ 24 A 12 V DC @ 70.8 A 12 V DC @ 500 mA 3.3 V DC @ 24 A 5 V DC @ 24 A 12 V DC @ 500 mA Number of +12V Rails 1 Technical InformationEfficiency 90% Number of Fans 1 fan(s) 1 fan(s) Modular Yes Specification Compliance ATX12V/EPS12V General InformationProduct Type Power Supply Manufacturer Part Number 120-GP-0850-X1 Manufacturer Website Address http://www.evga.com Manufacturer EVGA Corporation Product Name SuperNOVA 850W Power Supply Product Line SuperNOVA Brand Name EVGA MiscellaneousCountry of Origin China Environmentally Friendly Yes Environmental Certification WEEE ErP Lot 6 cTUVus 80 Plus Gold TÜV RoHS
