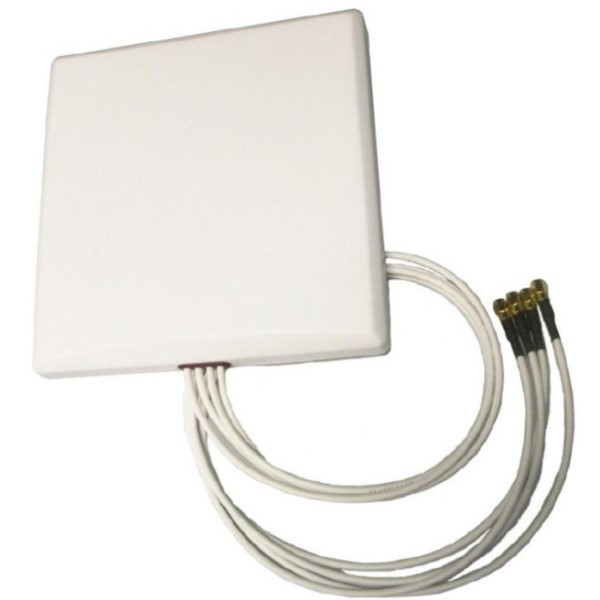

Fortinet Antennas - FANT-06ACAX-8509-D-N FANT-06ACAX-8509-D-N
| Frequency Range | 2400-2500 MHz / 5150-5850 MHz |
| Gain | 6 dBi |
| Vertical Beamwidth | 80±20° / 45±20° |
| Horizontal Beamwidth | 80±20° / 45±20° |
| VSWR | ≤2.0 / ≤2.5 |
| Front-to-back ratio | ≤18 |
| Nominal Impedance | 50 ohms |
| Polarization | Vertical |
| Max Power | 100 Watts |
| Connectors | 4 x RPSMA Male |
| Pigtail Length | 36 in. with Connector / 91.44 cm with Connector |
| Dimensions | 9.2 in. x 9.0 in. x 1.1 in. (23.37 cm x 22.86 cm x 2.79 cm) |
| Weight | 2.65 lbs. (1.2 kg) |
| Environment | Indoor / Outdoor |
| Operating Temperature | -40°F to +140°F (-40°C to +60°C) |
| Mounting Style | Wall or Mast/Pole |
