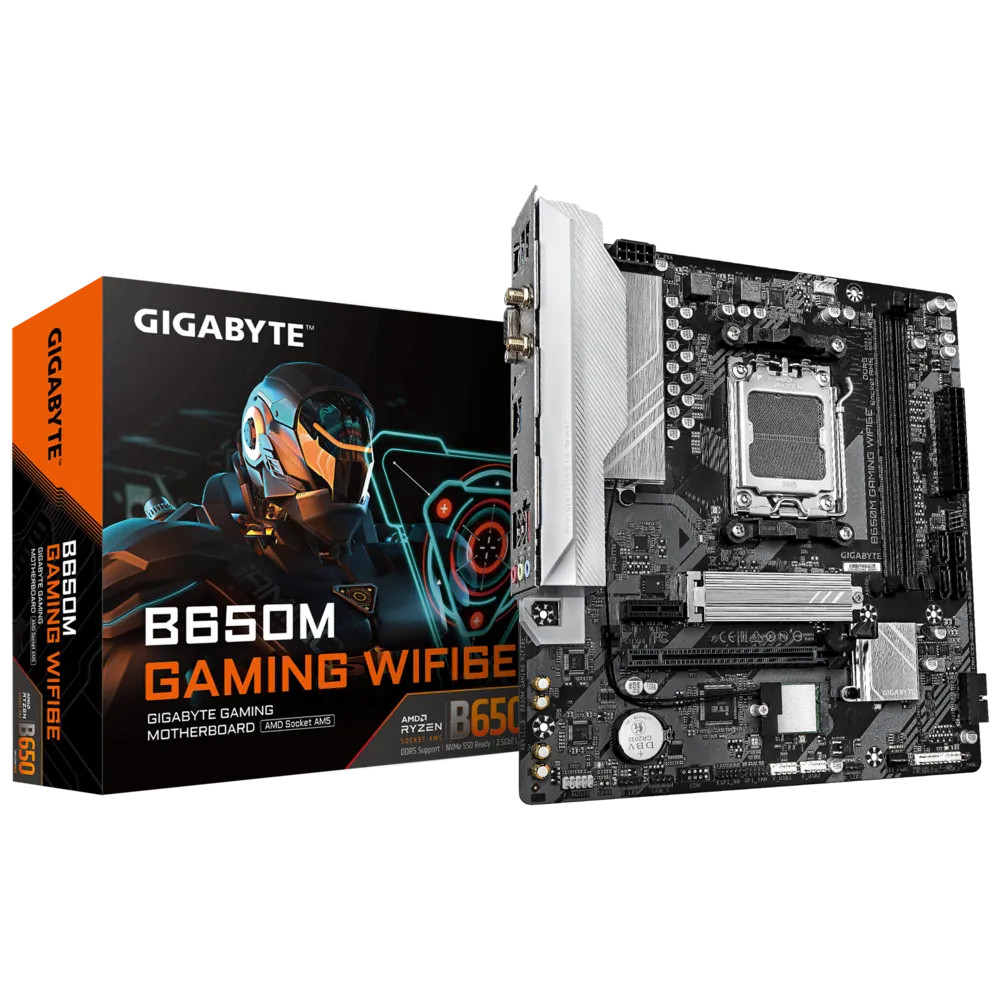

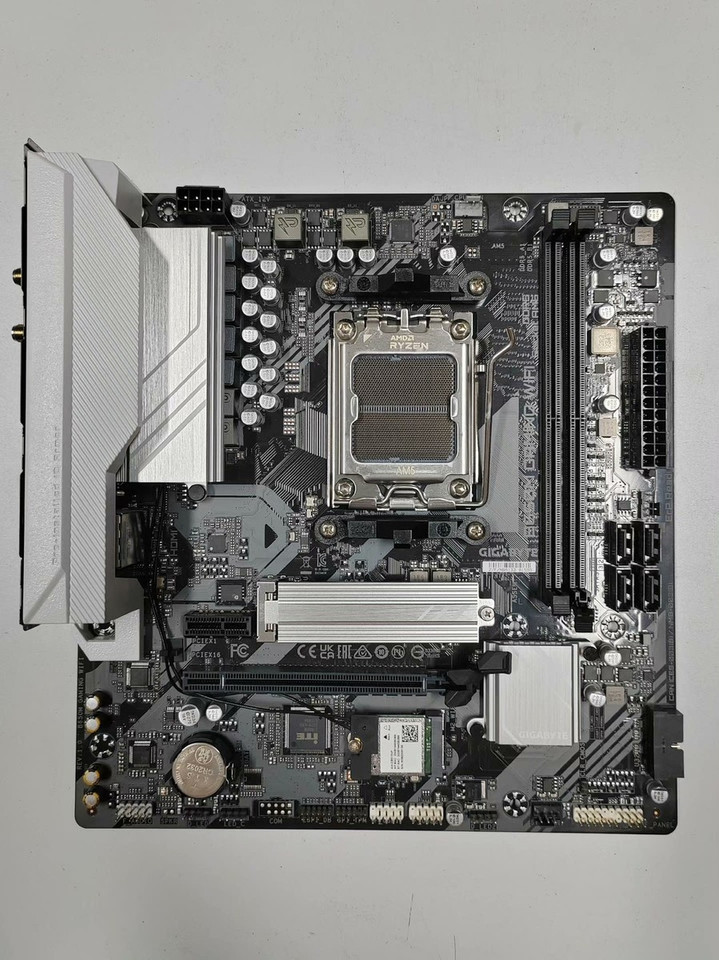

Gigabyte B650M Gaming WiFi6E Micro ATX Motherboard – AMD AM5 Socket, Ryzen 9000/8000/7000 Support, DDR5, PCIe 4.0, 2.5GbE LAN, Wi-Fi 6E - B650M GAMING WIFI6E

The Gigabyte B650M GAMING WIFI6E Micro ATX Motherboard (part number B650M GAMING WIFI6E) is a high-performance, compact platform designed for AMD Ryzen 7000, 8000, and 9000 Series processors on the AM5 socket. Engineered with GIGABYTE’s Ultra Durable™ technology, it features a 5+2+2 phases digital VRM with low RDS(on) MOSFETs for stable power delivery, ensuring optimal performance for modern CPUs. Supporting dual-channel DDR5 memory up to 128GB with AMD EXPO™ and Intel® XMP profiles, it achieves overclocking speeds up to 7600 MT/s and beyond, delivering exceptional memory performance. The motherboard includes a PCIe 4.0 x4 M.2 connector for high-speed storage, Wi-Fi 6E with speeds up to 2.4Gbps, and 2.5GbE LAN for robust connectivity. Its advanced cooling system, Smart Fan 6, offers multiple temperature sensors, hybrid fan headers, and fan stop functionality for efficient thermal management. DIY-friendly features like PCIe EZ-Latch, Q-Flash Plus, and Gigabyte Control Center simplify setup and maintenance, while high-fidelity audio with noise guard enhances the gaming experience. With a Micro ATX form factor, this motherboard balances performance, connectivity, and compactness for gaming and productivity builds.

Features

Durable Performance

• 5+2+2 Phases Digital VRM: Utilizes a 5+2+2 phases digital PWM with low RDS(on) MOSFETs for precise power delivery, supporting AMD Ryzen 7000/8000/9000 Series processors with enhanced system scalability.

• Dual Channel DDR5 Memory: Supports up to 128GB (2 x 64GB DIMMs) with AMD EXPO™ and Intel® XMP profiles, enabling overclocking up to 7600 MT/s and beyond for superior memory performance.

• DDR5 Voltage Unlock: GIGABYTE’s exclusive circuit design transforms native DDR5 memory into overclocked modules, offering programmable voltage control and compatibility with all PMIC vendors.

• Shielded Memory Routing: Memory traces are routed under a large PCB ground layer to minimize external interference, ensuring stable high-frequency DDR5 performance.

• PCIe 4.0 Hardware Design: Features a PCIe 4.0 x16 slot and a PCIe 4.0 x4 M.2 connector, doubling bandwidth compared to PCIe 3.0 for graphics cards and high-speed SSDs.

Future Connectivity

• Wi-Fi 6E 802.11ax: Realtek® RTL8852CE module supports 2.4/5/6 GHz bands with speeds up to 2.4Gbps and Bluetooth 5.3 for low-latency, high-bandwidth wireless connectivity.

• 2.5GbE LAN: Realtek® 2.5GbE LAN chip delivers up to 2.5Gbps for fast, reliable wired networking, ideal for gaming and streaming.

• Extended Connectivity: Includes HDMI (4096x2160@60Hz), D-Sub (1920x1200@60Hz), two USB 3.2 Gen 1 ports, four USB 2.0 ports, and internal headers for additional USB and front-panel connectivity.

• Storage Options: Supports one PCIe 4.0 x4 M.2 (type 2580/2280) and four SATA 6Gb/s connectors with RAID 0, 1, and 10 support for flexible, high-speed storage configurations.

Hi-Fi Audio

• High-End Audio Solution: Realtek® Audio CODEC supports 2/4/5.1/7.1-channel high-definition audio with high-quality capacitors for immersive sound quality.

• Audio Noise Guard: Separates analog audio components at the PCB level to reduce noise interference, delivering clear and realistic audio for gaming and multimedia.

Easy and Friendly Design

• PCIe EZ-Latch: Simplifies graphics card removal from the PCIe 4.0 x16 slot, enhancing ease of upgrades and maintenance.

• Q-Flash Plus: Allows BIOS updates without installing CPU, memory, or graphics card, using a USB flash drive and dedicated button for seamless firmware updates.

• Smart Fan 6: Features multiple temperature sensors, three PWM/DC fan headers (up to 24W each), dual curve modes (Slope/Stair), and fan stop functionality for precise, quiet cooling.

• Gigabyte Control Center (GCC): Unified software platform with an intuitive interface for managing RGB lighting, system settings, and auto-updates for installed Gigabyte hardware.

• RGB Fusion: Supports one addressable LED header and one RGB LED header for customizable lighting, enhancing aesthetic personalization.

Ultra Durable Build

• Solid Pin CPU Power Connector: 8-pin ATX 12V connector ensures reliable power delivery for high-performance CPUs.

• Micro ATX Form Factor: Compact 24.0cm x 22.5cm design balances performance and space efficiency, ideal for small to mid-sized gaming or productivity builds.
